Removal Procedure

  1. Disconnect the negative battery cable.
  2. Disconnect the electrical connector to the CKP sensor.
  3. Remove one bolt and the CKP sensor from the right side of the engine block, just behind the mount.
    NOTE: Use caution to avoid any hot oil that might drip out.

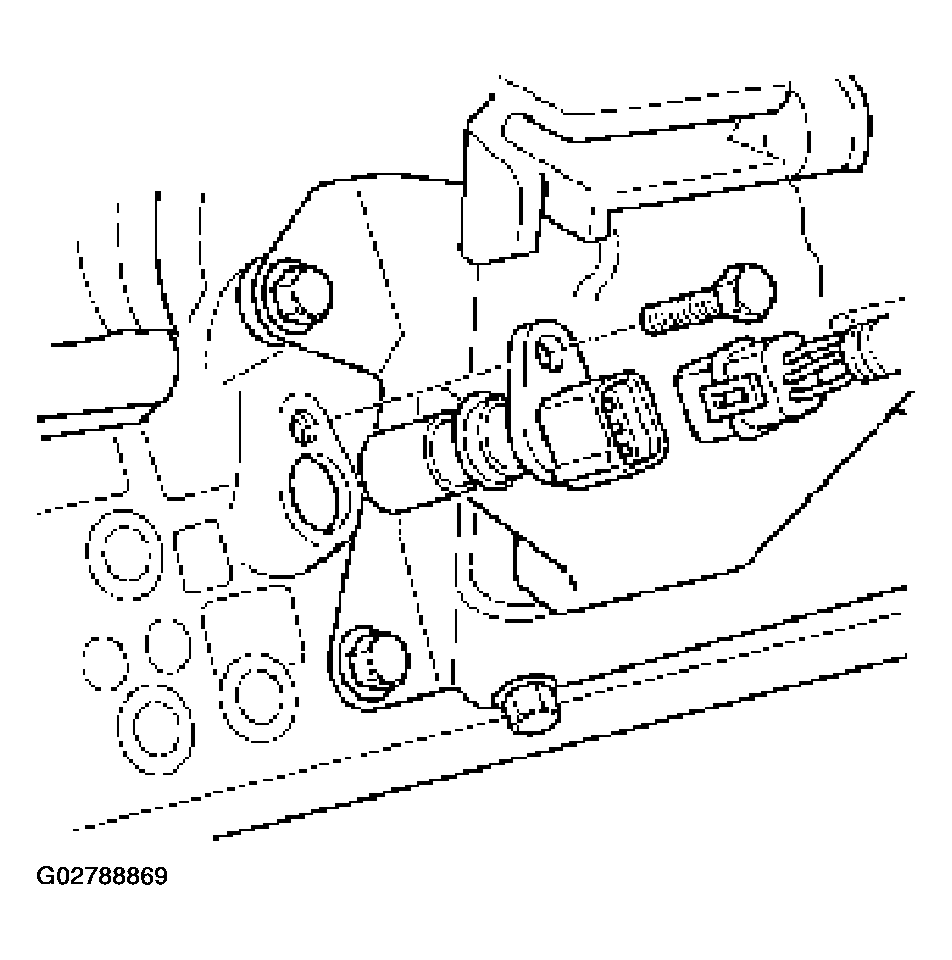

    Fig 1: Removing Bolt And CKP Sensor From Right Side Of Engine Block
    G02788869Courtesy of ISUZU MOTOR CO.
