Installation Procedure

  1. Install the ECM to bracket and fix with the clip.

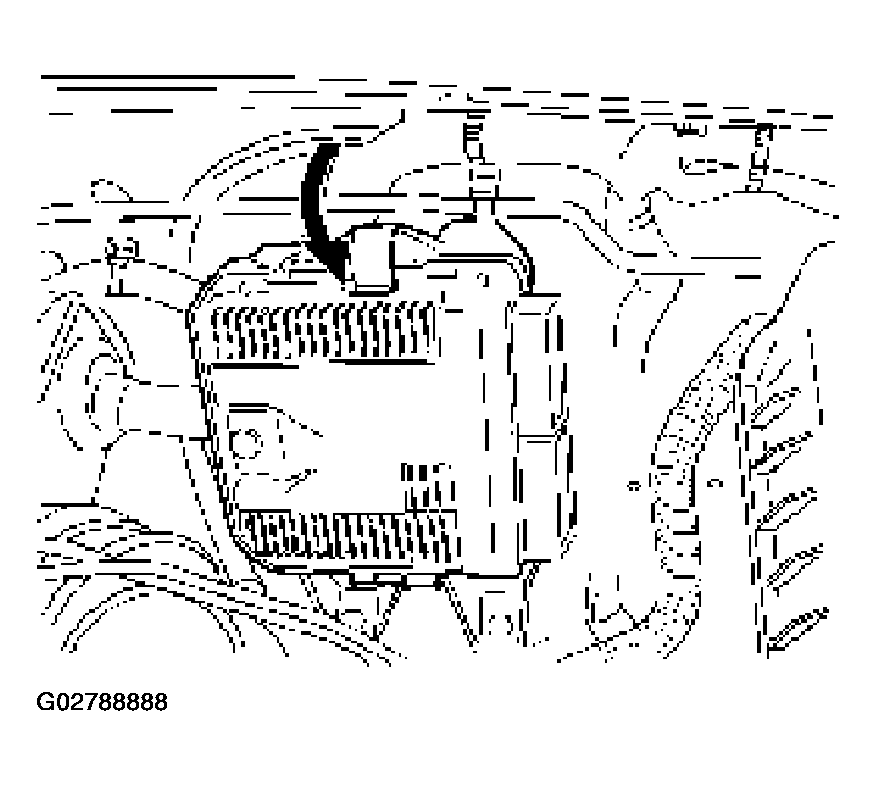

    Fig 1: Installing ECM To Bracket
    G02788888Courtesy of ISUZU MOTOR CO.
  2. Connect the ECM electrical connectors.
  3. Pull The "A" slider and lift the "B" lever.

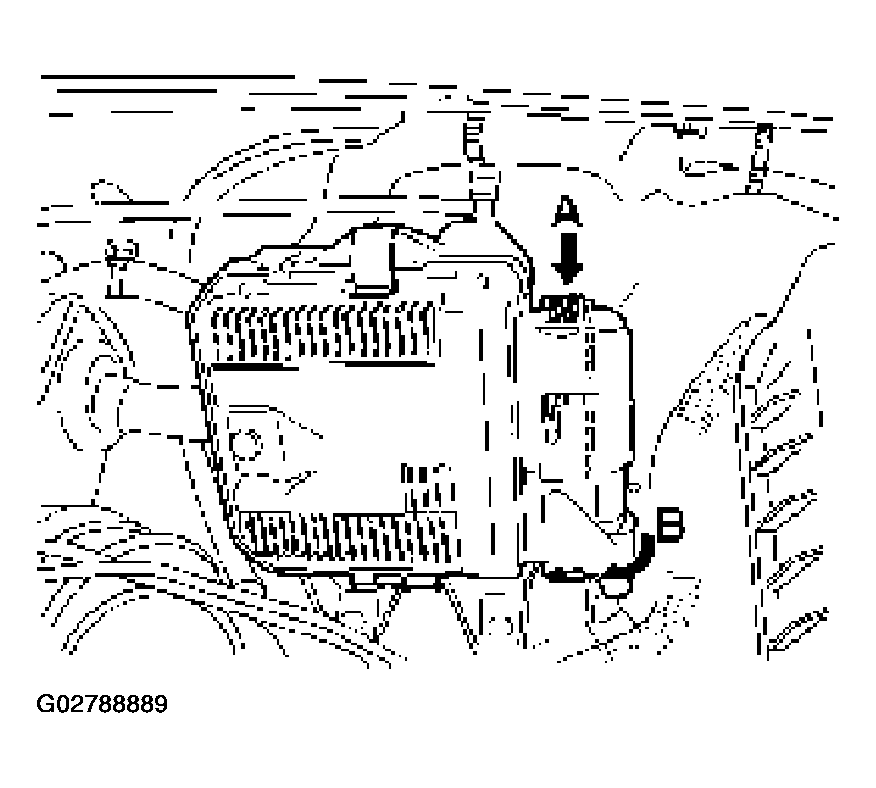

Fig 2: Connecting ECM Electrical Connectors
G02788889Courtesy of ISUZU MOTOR CO.
