Removal Procedure

  1. Disconnect the negative battery cable.
  2. Disconnect the TPS electrical connector.
  3. Remove the bolts and the TP sensor from the throttle body.

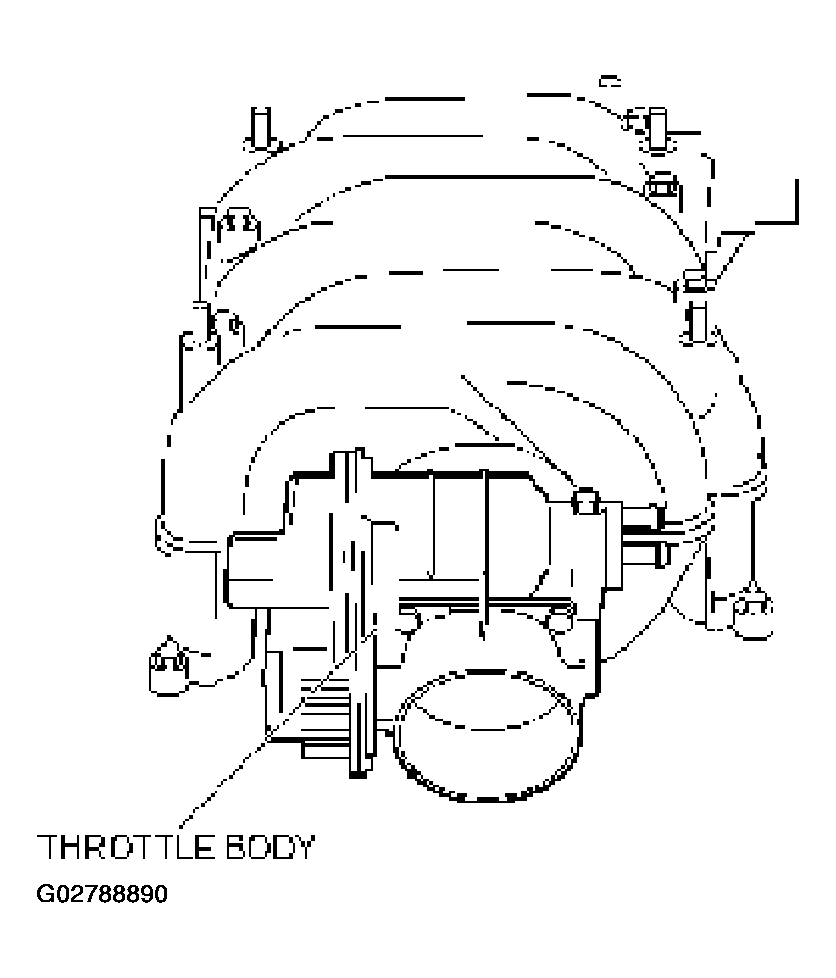

Fig 1: Removing Bolts And TP Sensor From Throttle Body
G02788890Courtesy of ISUZU MOTOR CO.
NOTE: Do not clean the TP sensor by soaking it in solvent. The sensor will be damaged as a result.
