Relay / Fuse Box (Instrument Panel)
Relay / Fuse Box (Instrument Panel)

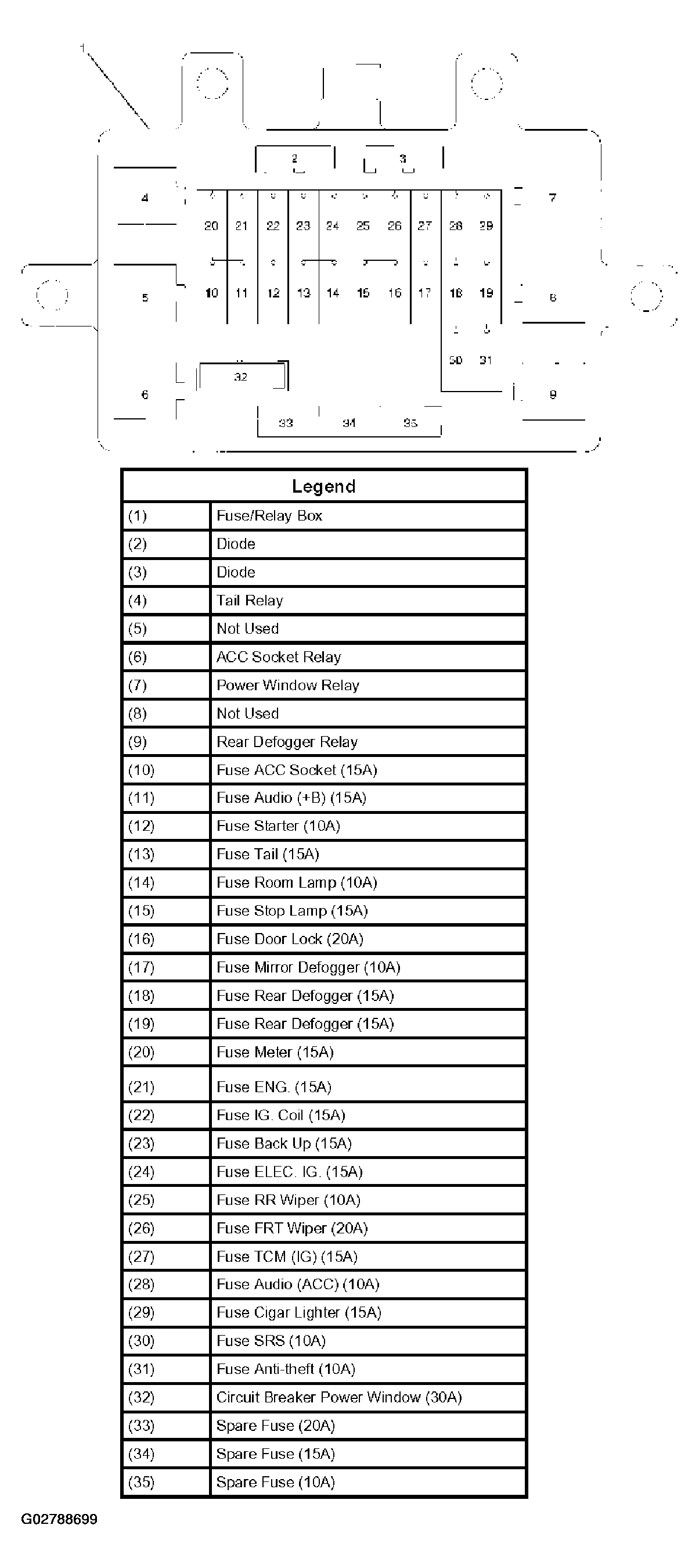

Fig 1: Identifying Relay / Fuse Box (Instrument Panel)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
