Home › Isuzu › 2004 › Axiom Base, RWD › Repair and Diagnosis › Engine Performance › System › Engine Control System - Introduction › On-Board Diagnostic (OBD-II) › Communication System Check › Notes

Communication System Check: Notes

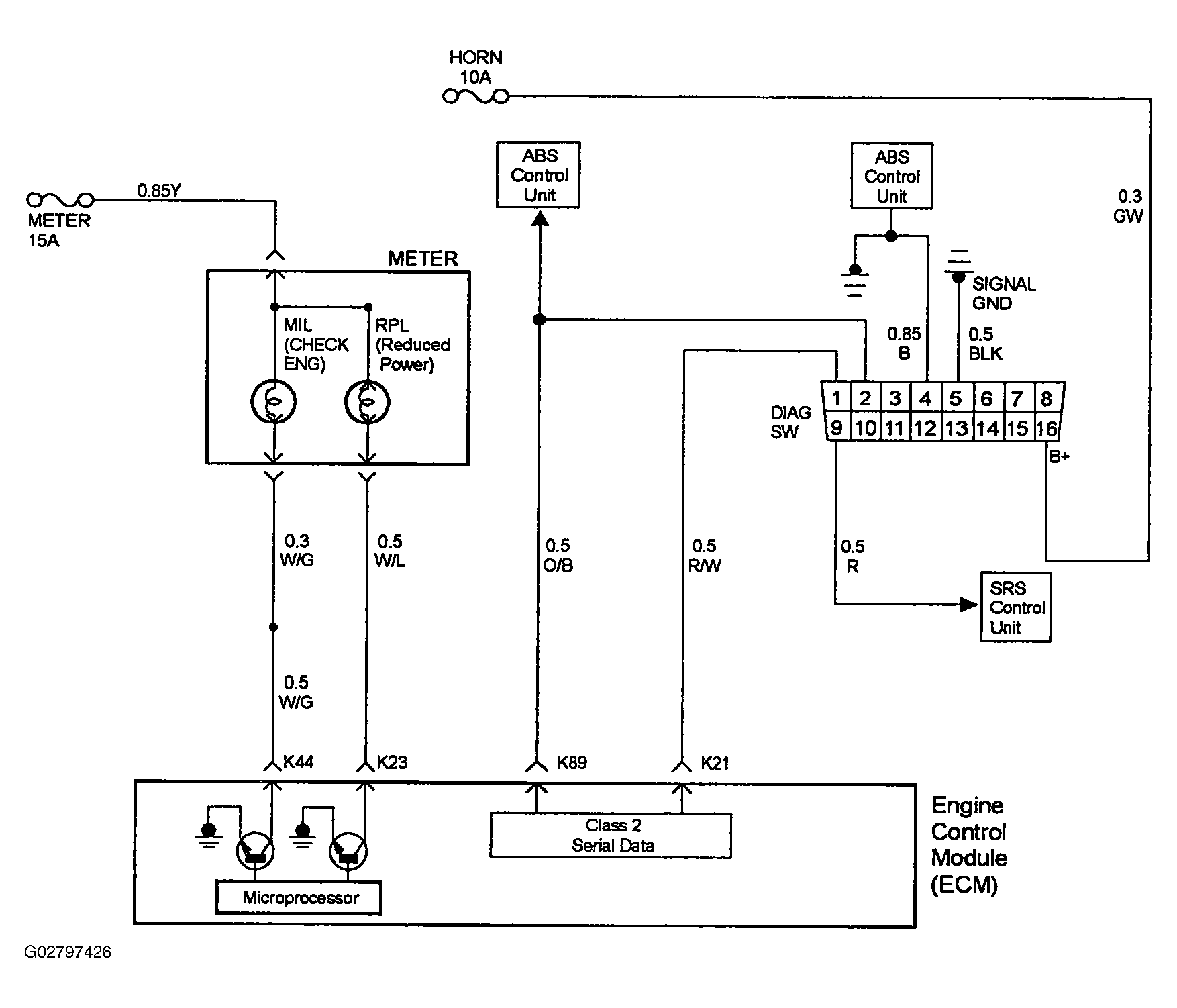

Fig 1: Identifying Communication System Check Wiring Diagram
G02797426Courtesy of ISUZU MOTOR CO.
