Fuel Injector Balance Test Procedure

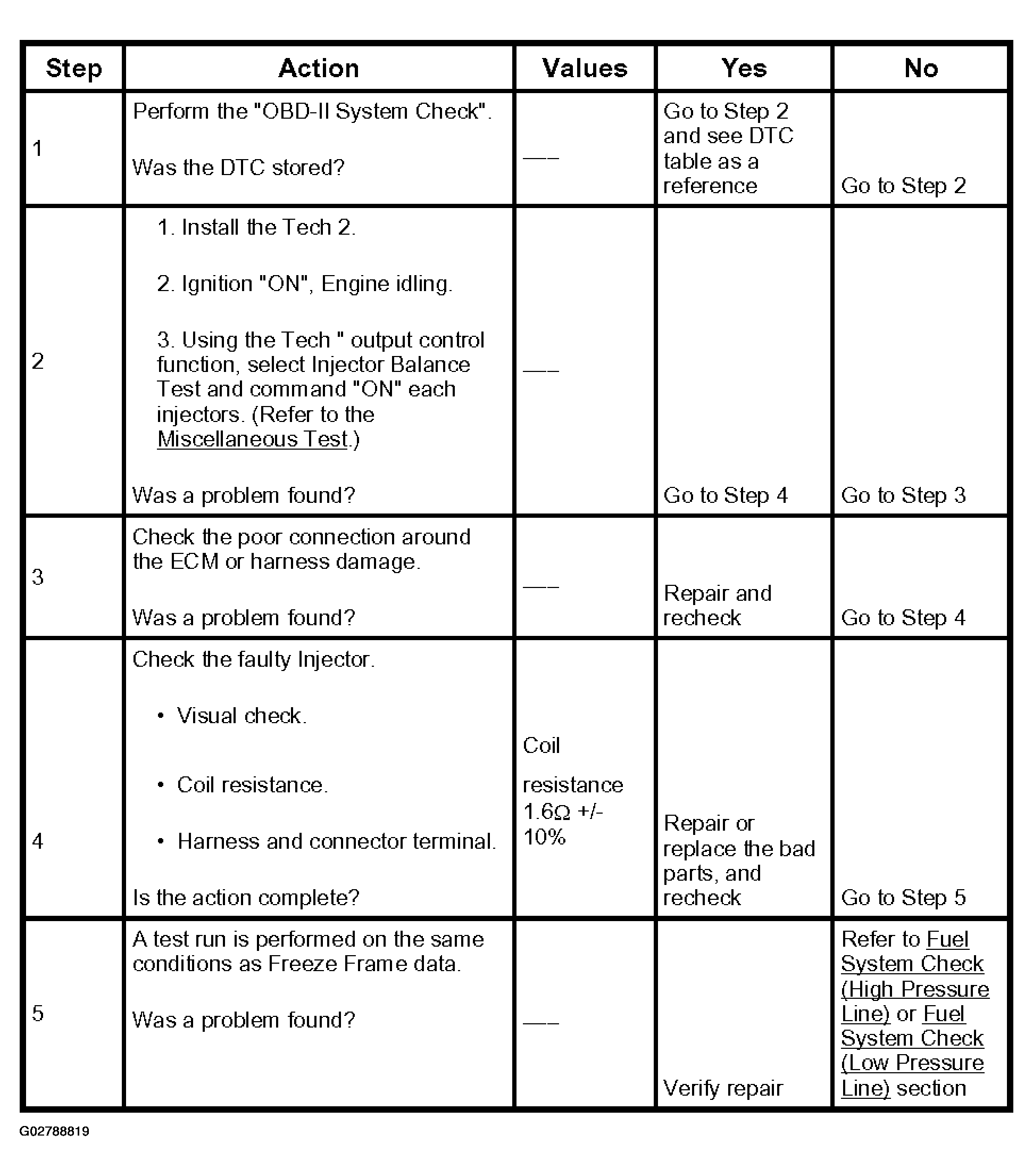

Fig 1: Identifying Diagnostic Chart (Fuel Injector Balance Test Procedure)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
