Coil Spring: Installation

Install coil spring and make sure that the coil spring is installed in the proper position. Paint mark(1) should be downward.

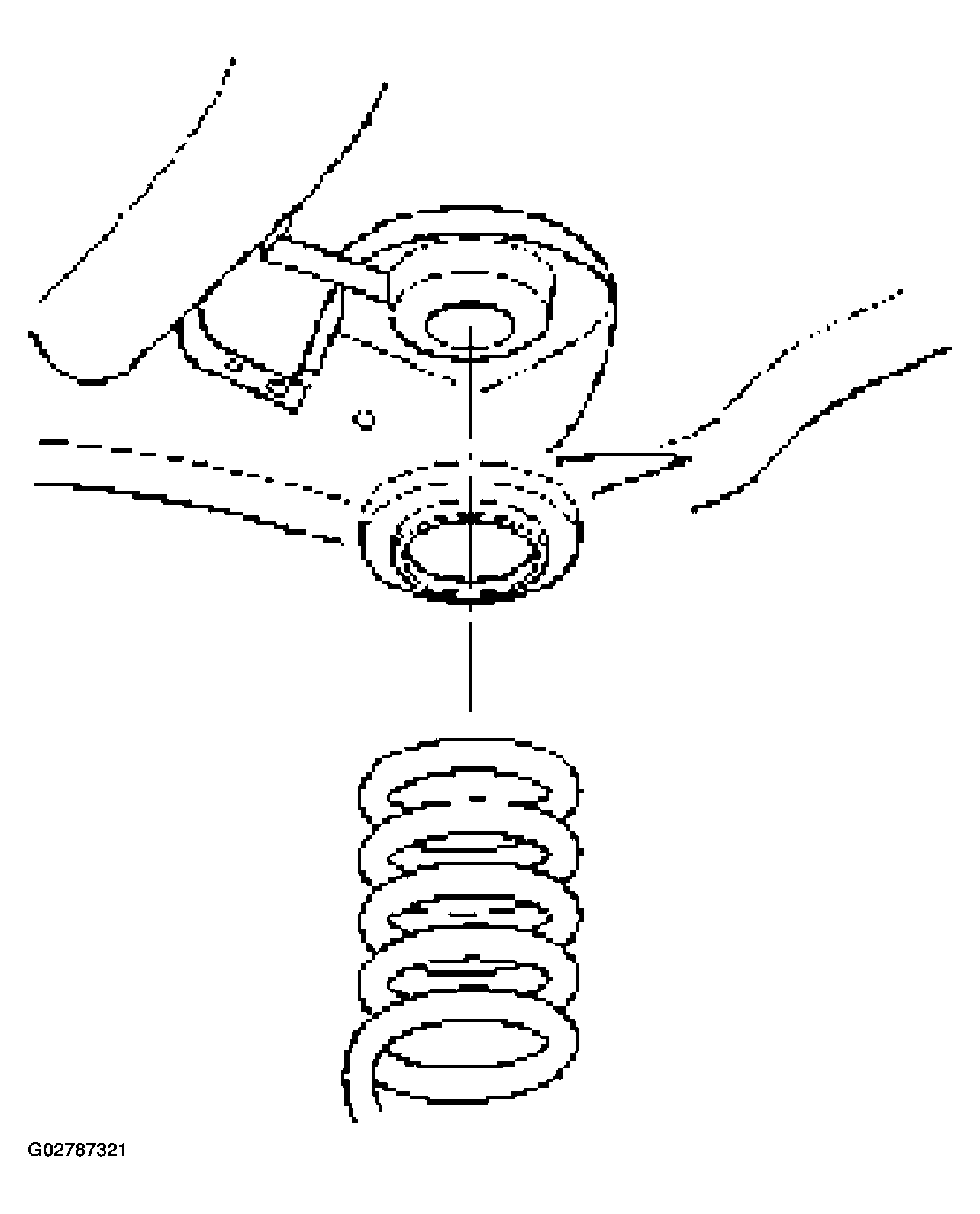

Fig 1: Installing Position Of Coil Spring
Courtesy of ISUZU MOTOR CO.
Fit the end of the coil spring to the coil spring seat and mount the coil spring on the rear axle case.

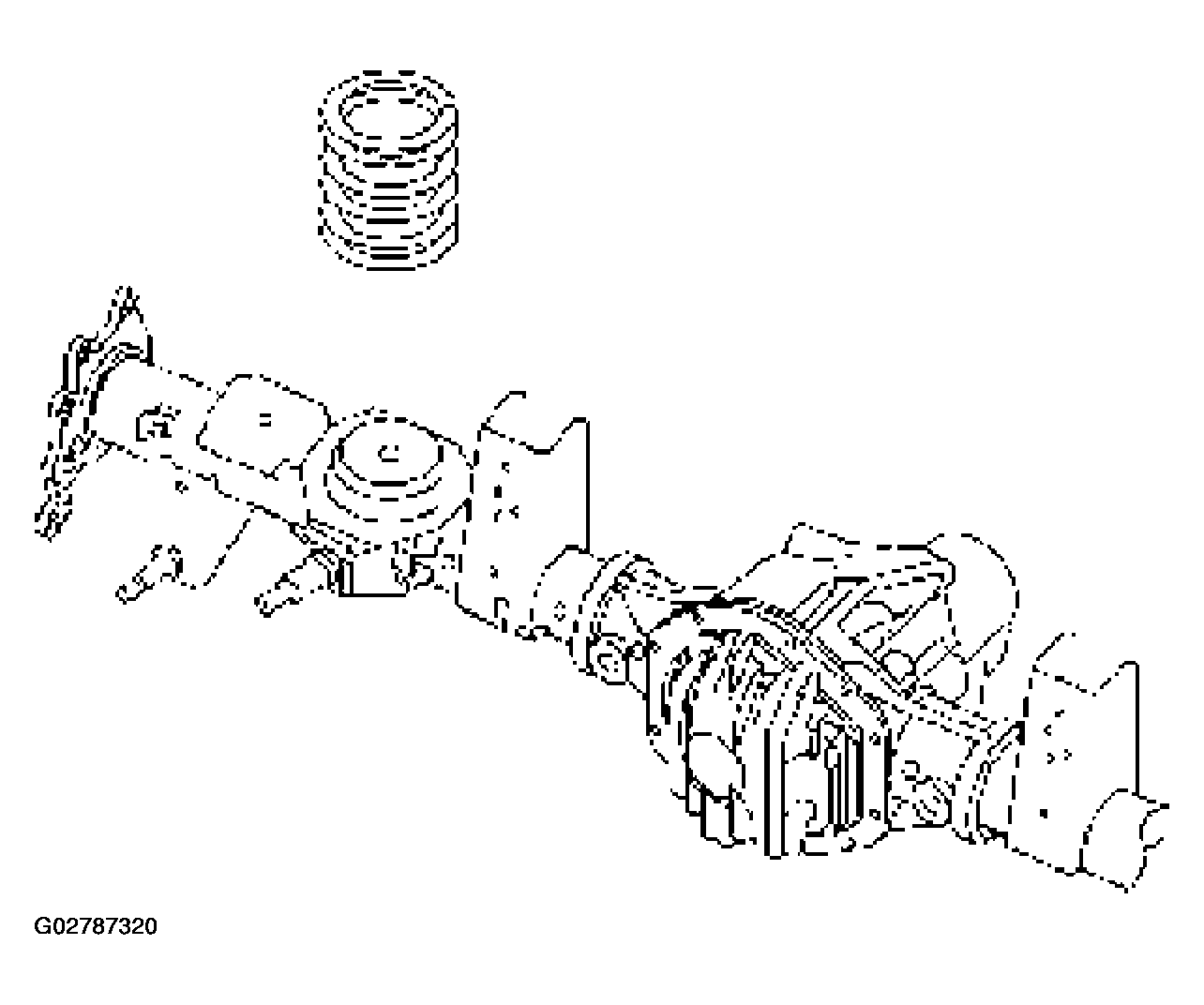

Fig 2: Mounting Coil Spring On Rear Axle Case
Courtesy of ISUZU MOTOR CO.
Install the insulator on the coil spring. Jack up the axle case gently with the top of the coil spring set to the spring seat on the frame side.

Fig 3: Installing Insulator On Coil Spring
Courtesy of ISUZU MOTOR CO.
Install shock absorber and tighten the nut lightly, then retighten it to the specified torque after the vehicle is at curb height.
NOTE: When mounting shock absorber, be sure not to use grease on bushings or any other nearby part.

Torque: 78 N.m (58 lb ft)
Install stabilizer bar at the stabilizer link.
Torque: 50 N.m (37 lb ft)
Install upper link with rubber plate and tighten fixing bolt.
Torque: 137 N.m (101 lb ft)
Install breather hose.
Connect brake hose and bleed the brake system. Refer to BLEEDING BRAKE SYSTEM .
