Isuzu
›
2004
›
Axiom Base, RWD
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Automatic Transmission
›
OD Support Assembly
›
Disassembled View
Disassembled View

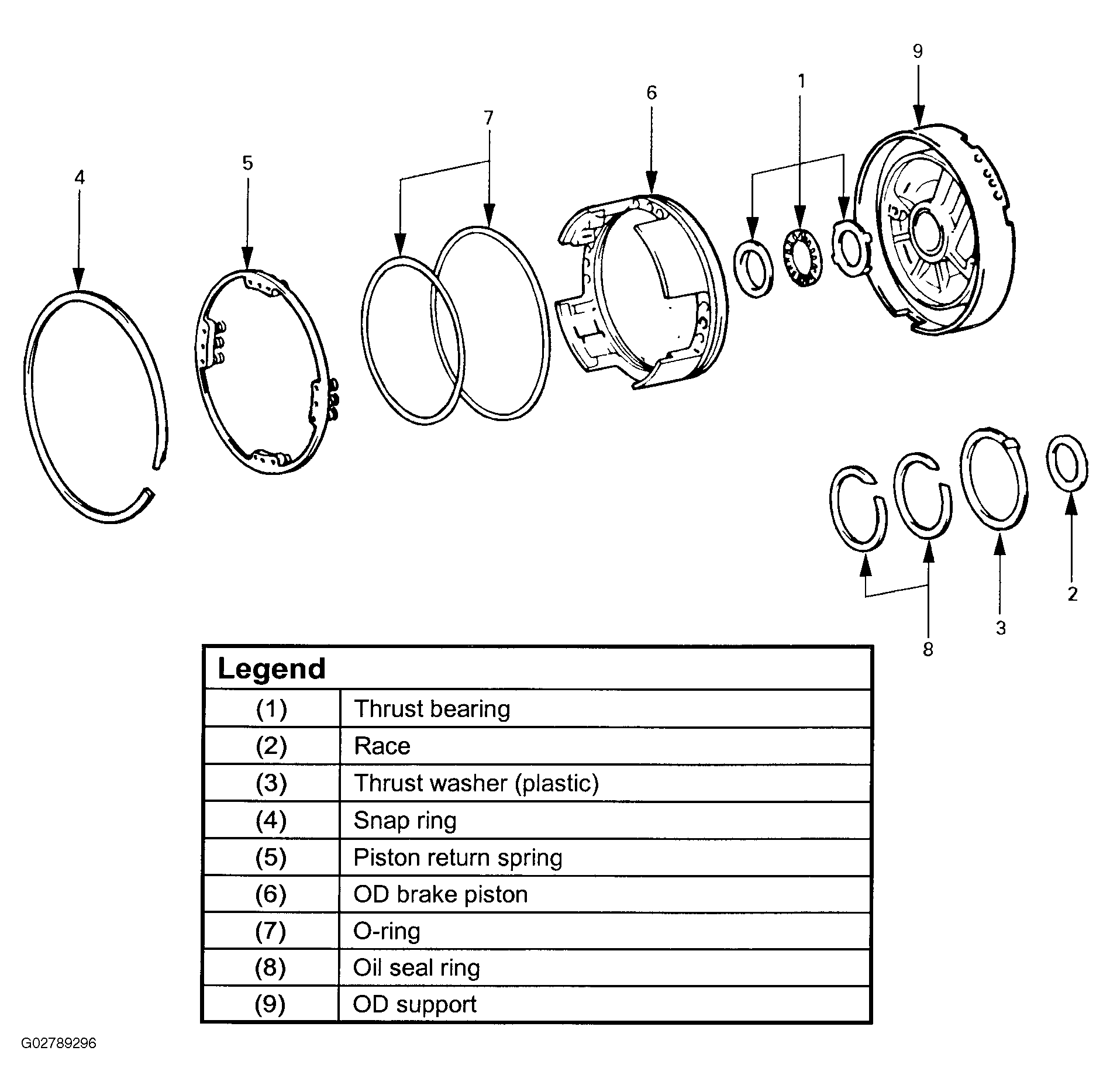

Fig 1: Disassembled View Of OD Support Assembly
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
