FixVault
Home
›
Isuzu
›
2004
›
Axiom Base, RWD
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Automatic Transmission
›
Special Tools
Special Tools

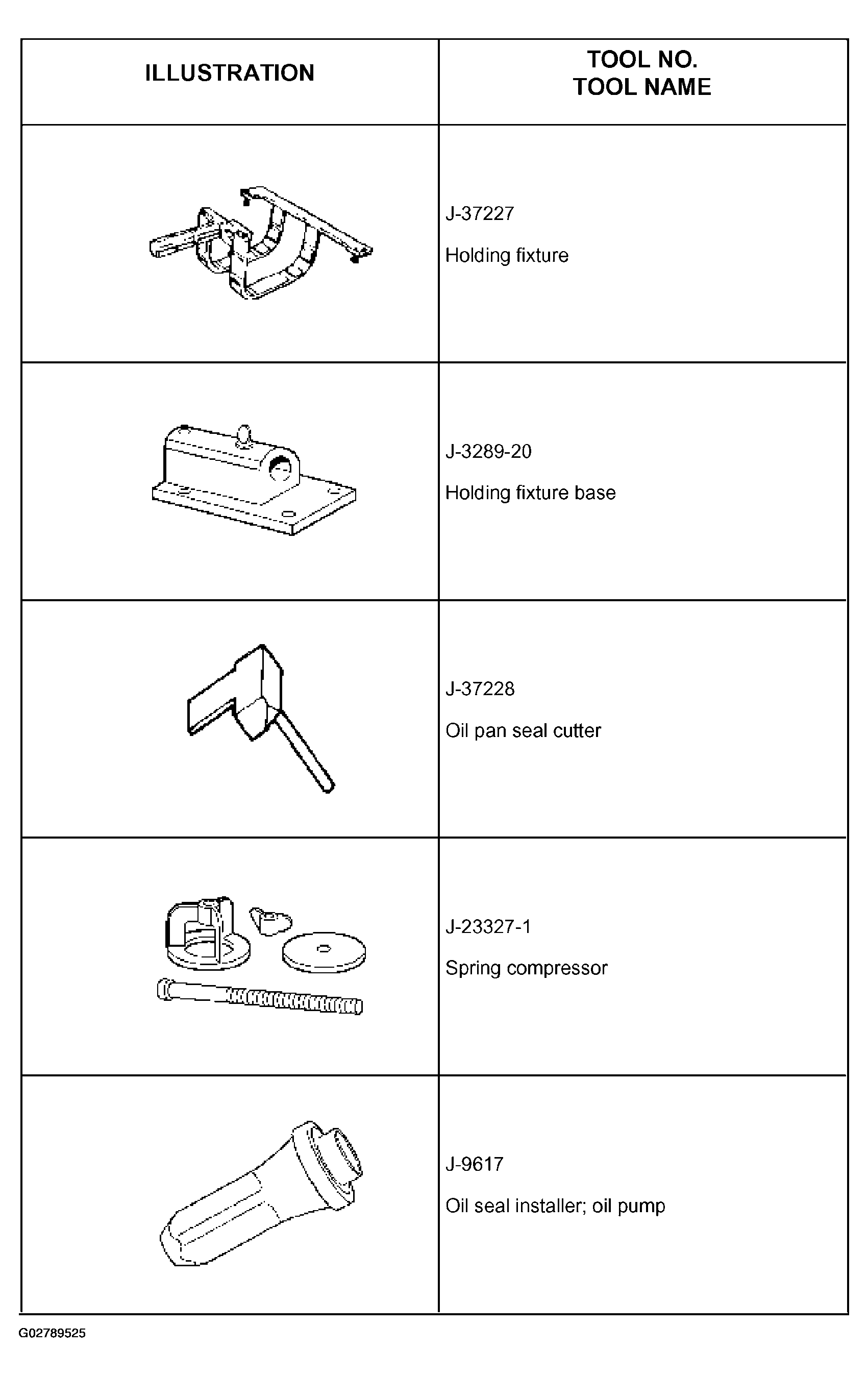

Fig 1: Identifying Special Tools (1 Of 3)
Courtesy of ISUZU MOTOR CO.

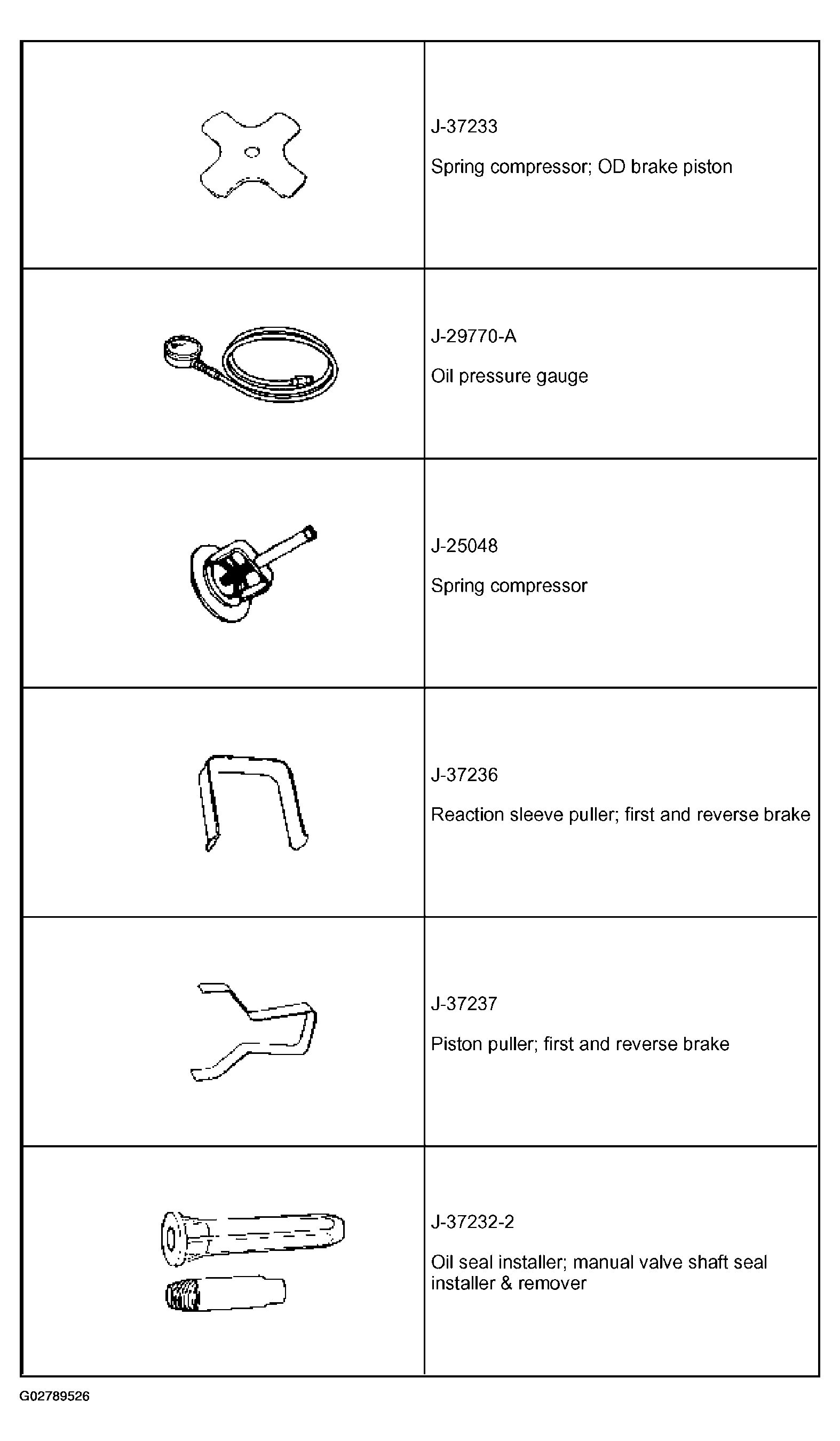

Fig 2: Identifying Special Tools (2 Of 3)
Courtesy of ISUZU MOTOR CO.

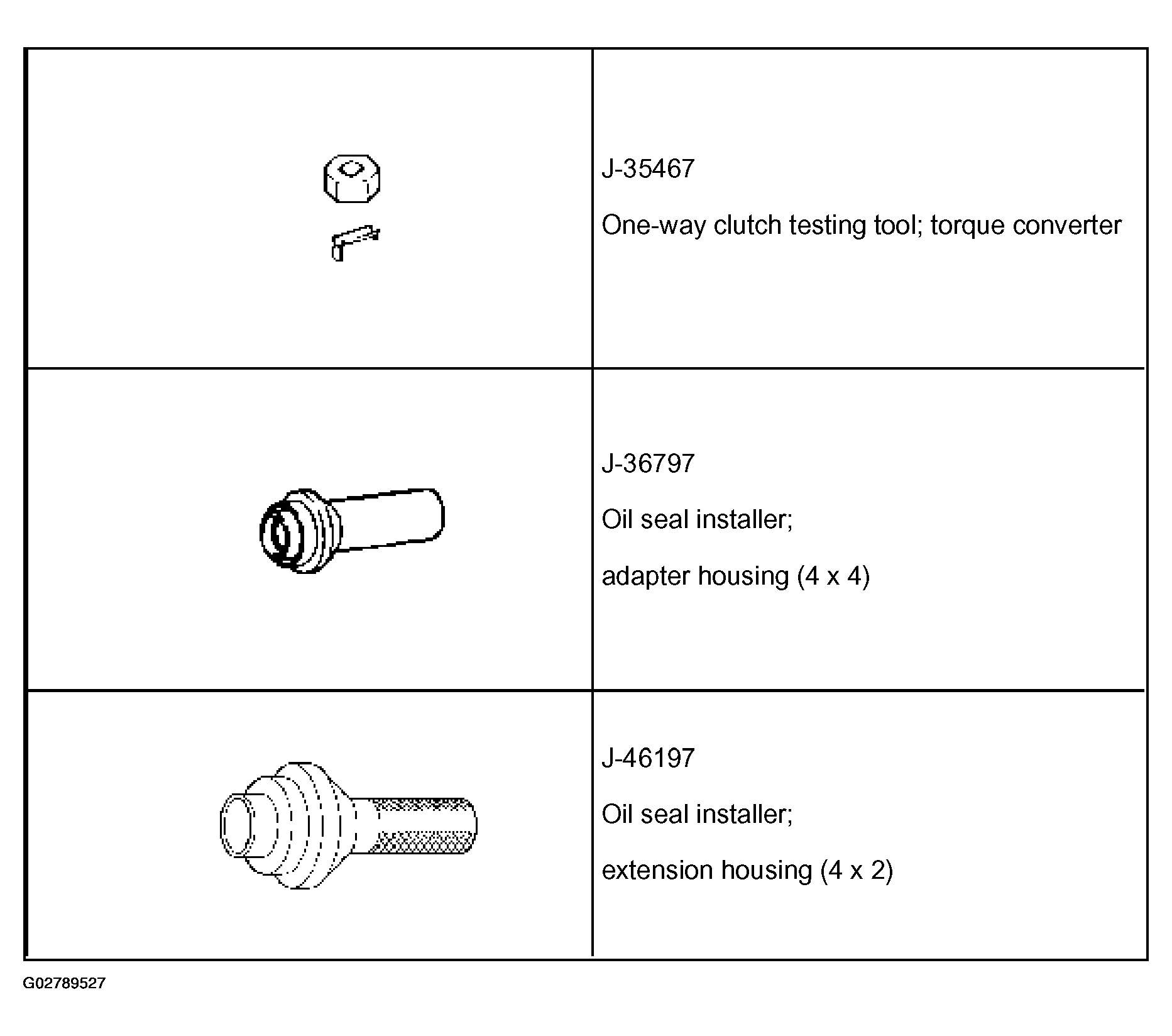

Fig 3: Identifying Special Tools (3 Of 3)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
