Home › Isuzu › 2004 › Axiom Base, RWD › Repair and Diagnosis › Transmission › Automatic Trans › Automatic Transmission › Valve Body Assembly and Pressure Control Solenoid › Notes

Valve Body Assembly and Pressure Control Solenoid: Notes

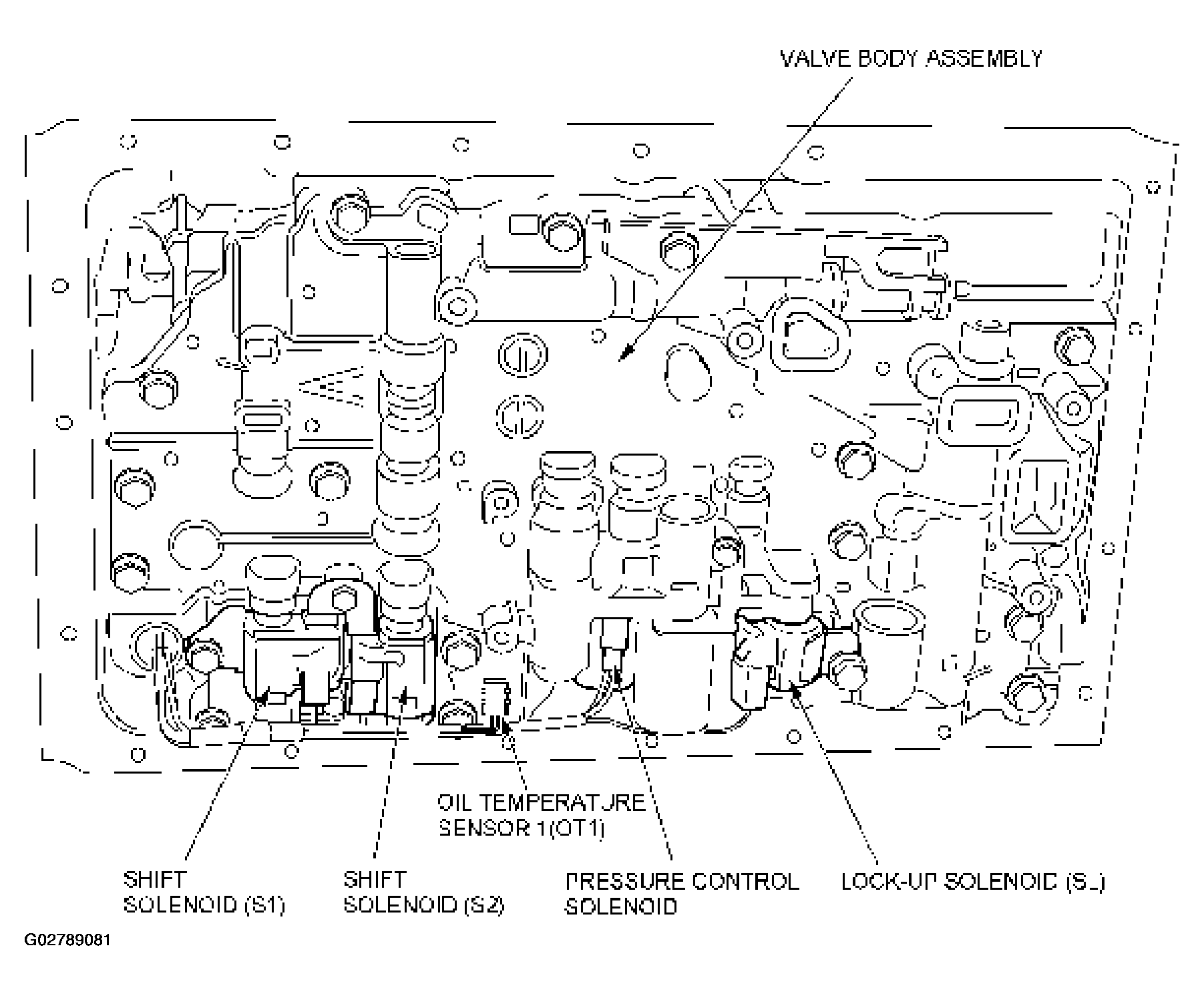

Fig 1: Identifying Valve Body Assembly & Pressure Control Solenoid
G02789081Courtesy of ISUZU MOTOR CO.
