Home › Isuzu › 2004 › Axiom Base, RWD › Repair and Diagnosis › Transmission › Automatic Trans › Transmission Control System › DTC P0712: (FLASHING CODE 15) Transmission Fluid Temperature Sensor Circuit Low › Notes

DTC P0712: (FLASHING CODE 15) Transmission Fluid Temperature Sensor Circuit Low: Notes

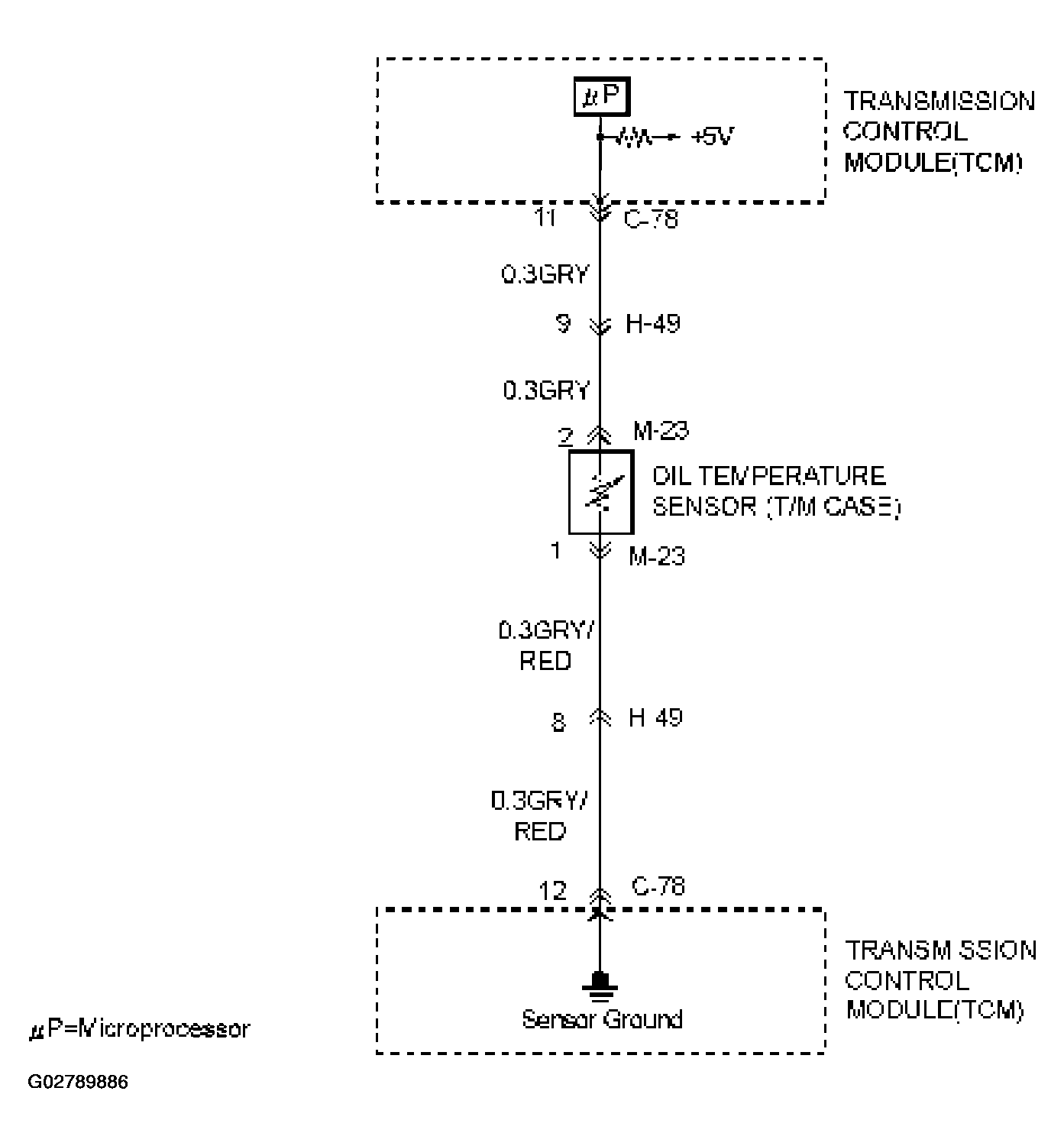

Fig 1: DTC P0712: (Flashing Code 15) Transmission Fluid Temperature Sensor Circuit Low Wiring Diagram
G02789886Courtesy of ISUZU MOTOR CO.
