FixVault
Home
›
Isuzu
›
2004
›
Axiom Base, RWD
›
Repair and Diagnosis
›
Transmission
›
Automatic Trans
›
Transmission Control System
›
DTC P0748: (FLASHING CODE 35) Pressure Control Solenoid Electrical
›
Notes
DTC P0748: (FLASHING CODE 35) Pressure Control Solenoid Electrical: Notes

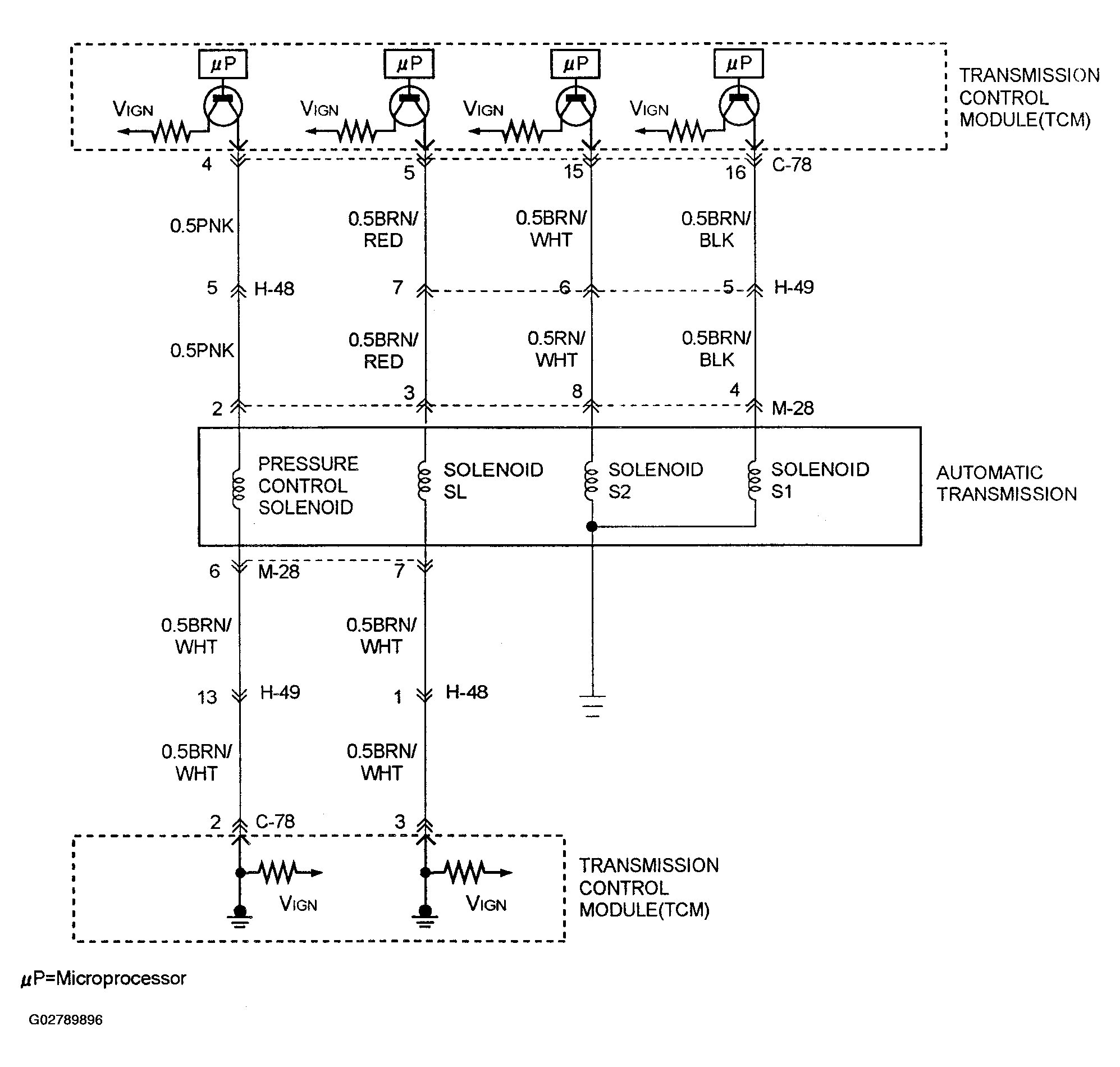

Fig 1: DTC P0748: (Flashing Code 35) Pressure Control Solenoid Electrical Wiring Diagram
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
