Functions of Input / Output Components

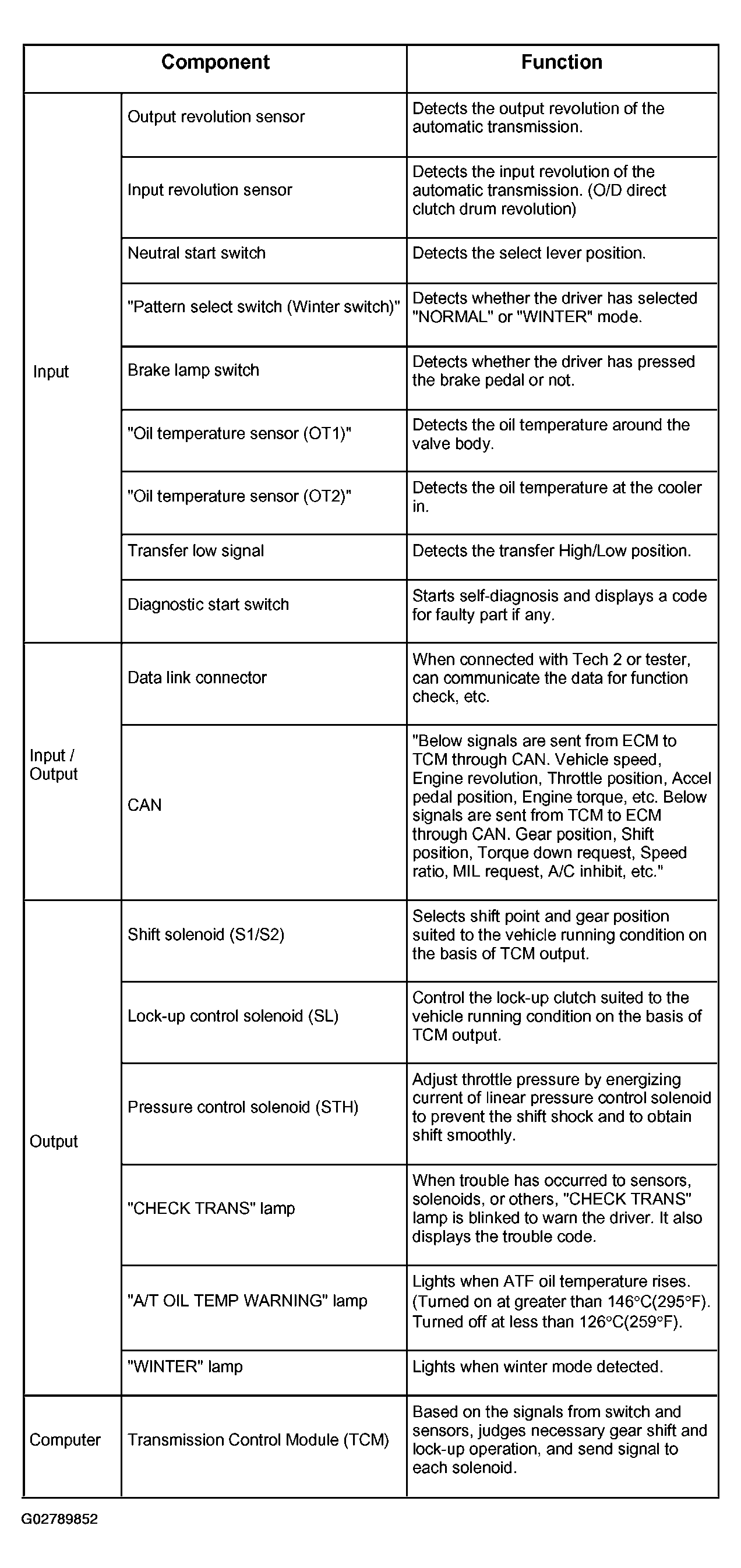

Fig 1: Identifying Functions of Input / Output Components
G02789852Courtesy of ISUZU MOTOR CO.
