General Description
›
Transmission Control Module (TCM)
Transmission Control Module (TCM)

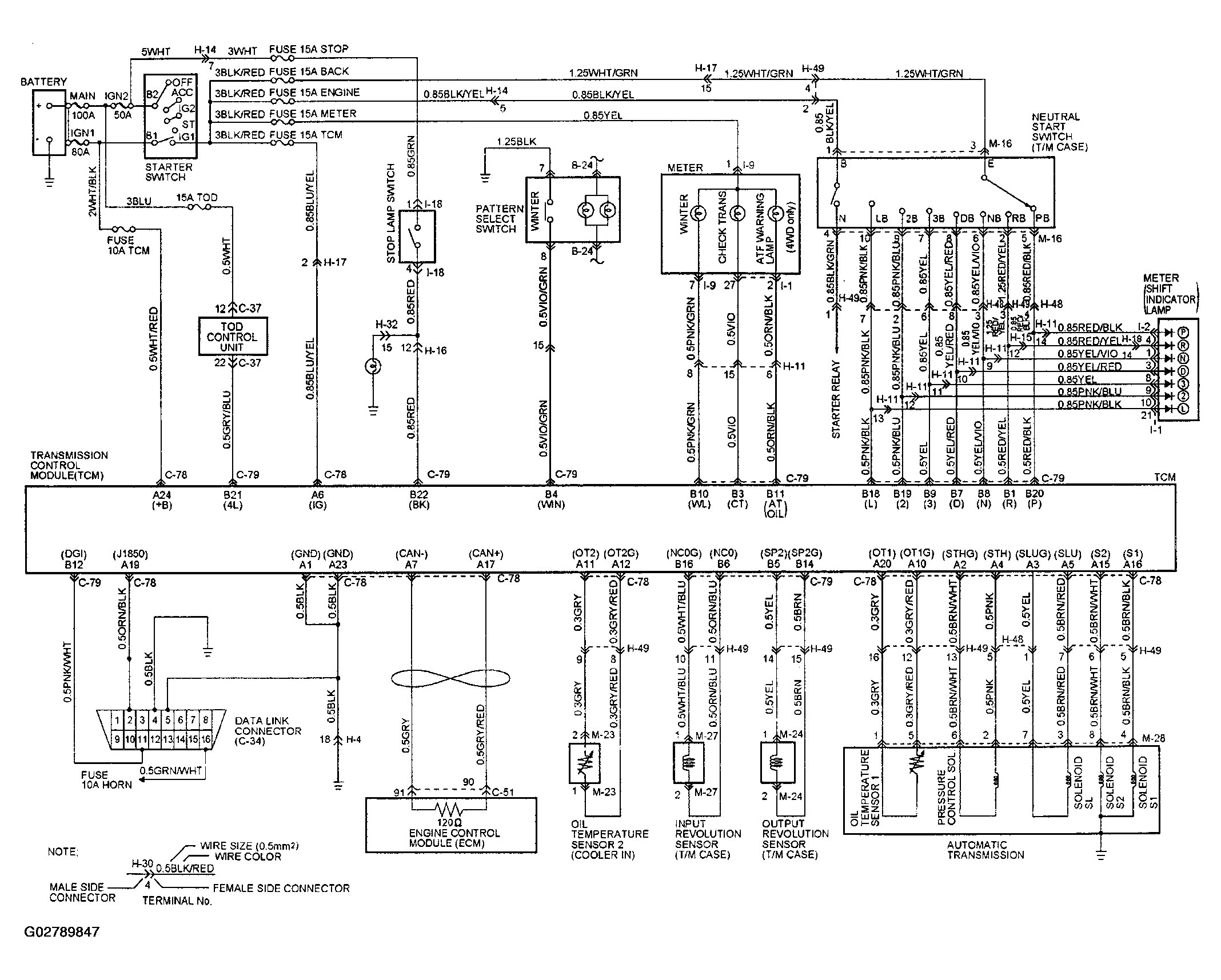

Fig 1: Transmission Control Module (TCM) Circuit Diagram
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
