Motor Position and Encoder Position Code

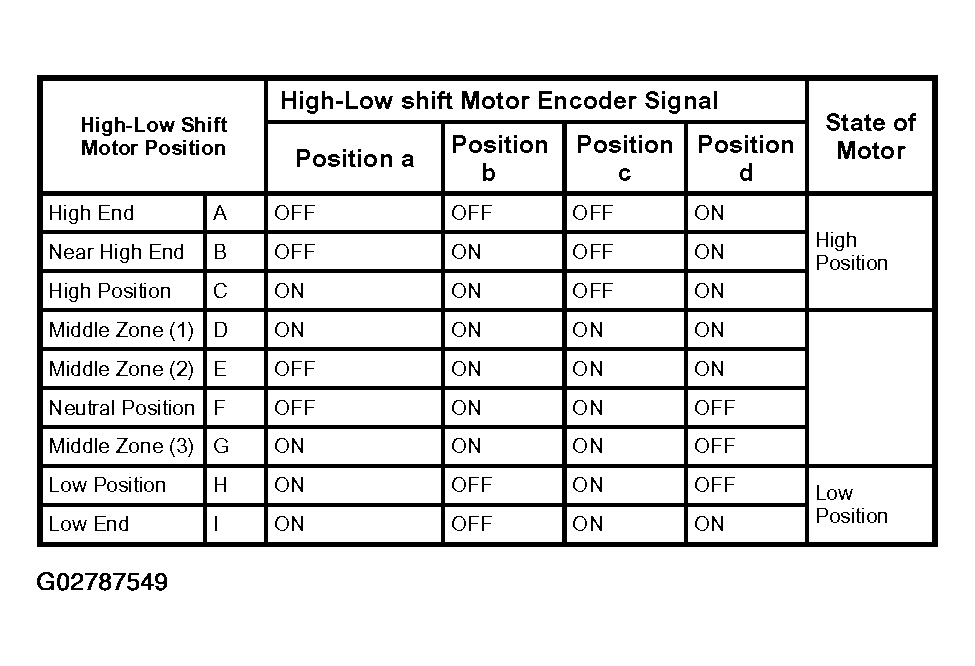

Fig 1: Motor Position And Encoder Position Code Chart
G02787549Courtesy of ISUZU MOTOR CO.
