Torque Specifications

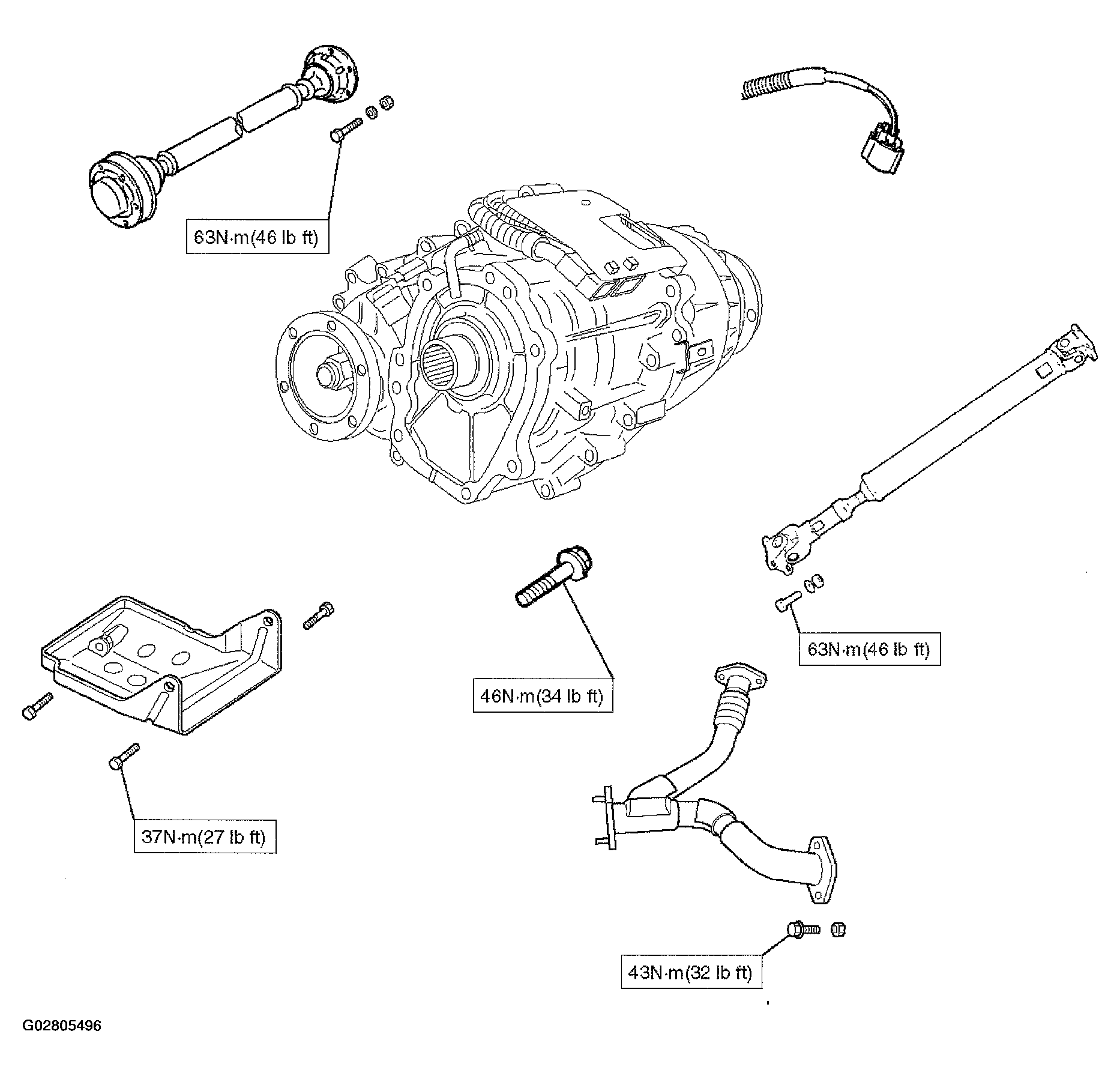

Fig 1: Torque Specifications (1 Of 3)

G02805496

Courtesy of ISUZU MOTOR CO.

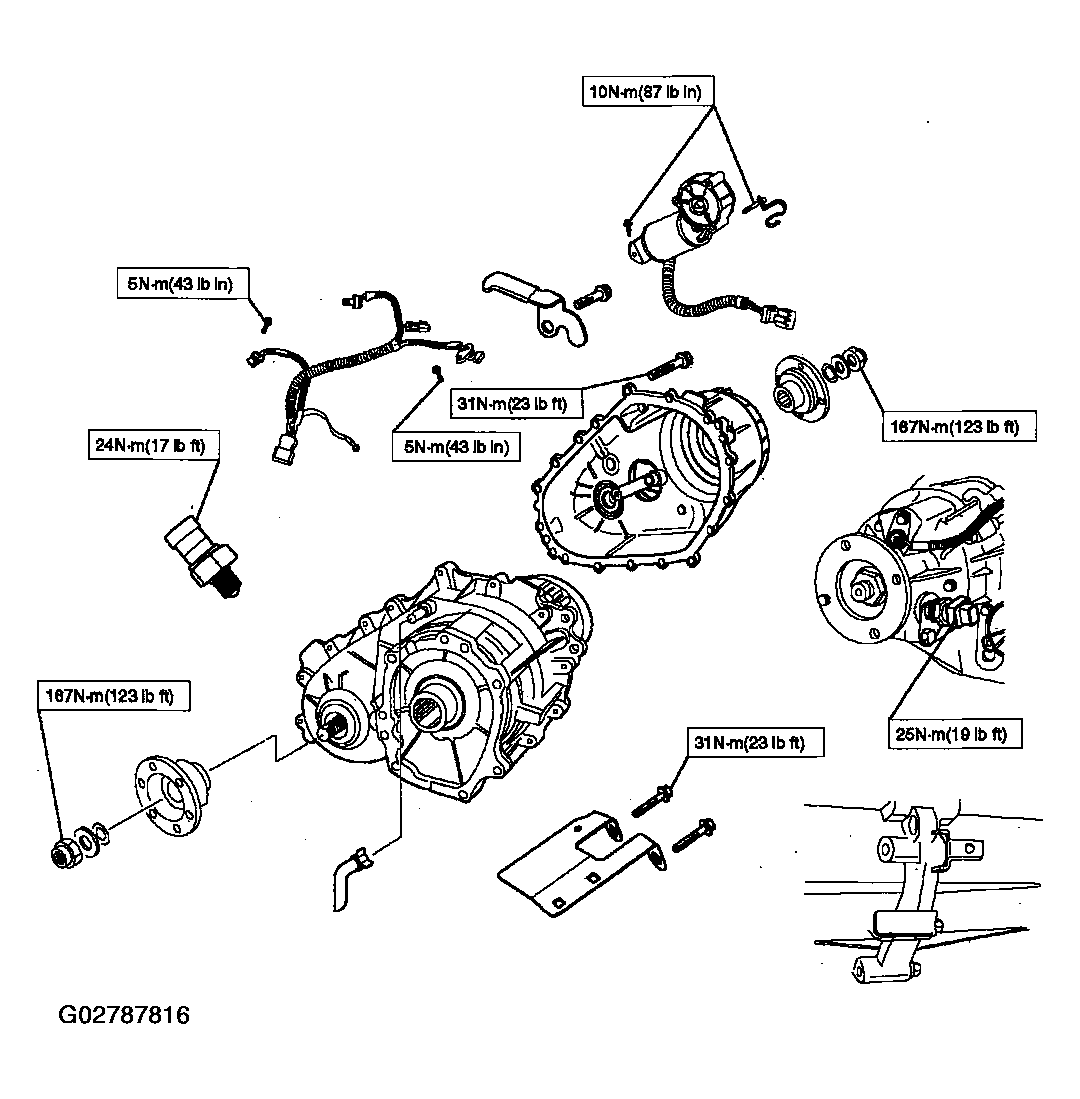

Fig 2: Torque Specifications (2 Of 3)

G02787816

Courtesy of ISUZU MOTOR CO.

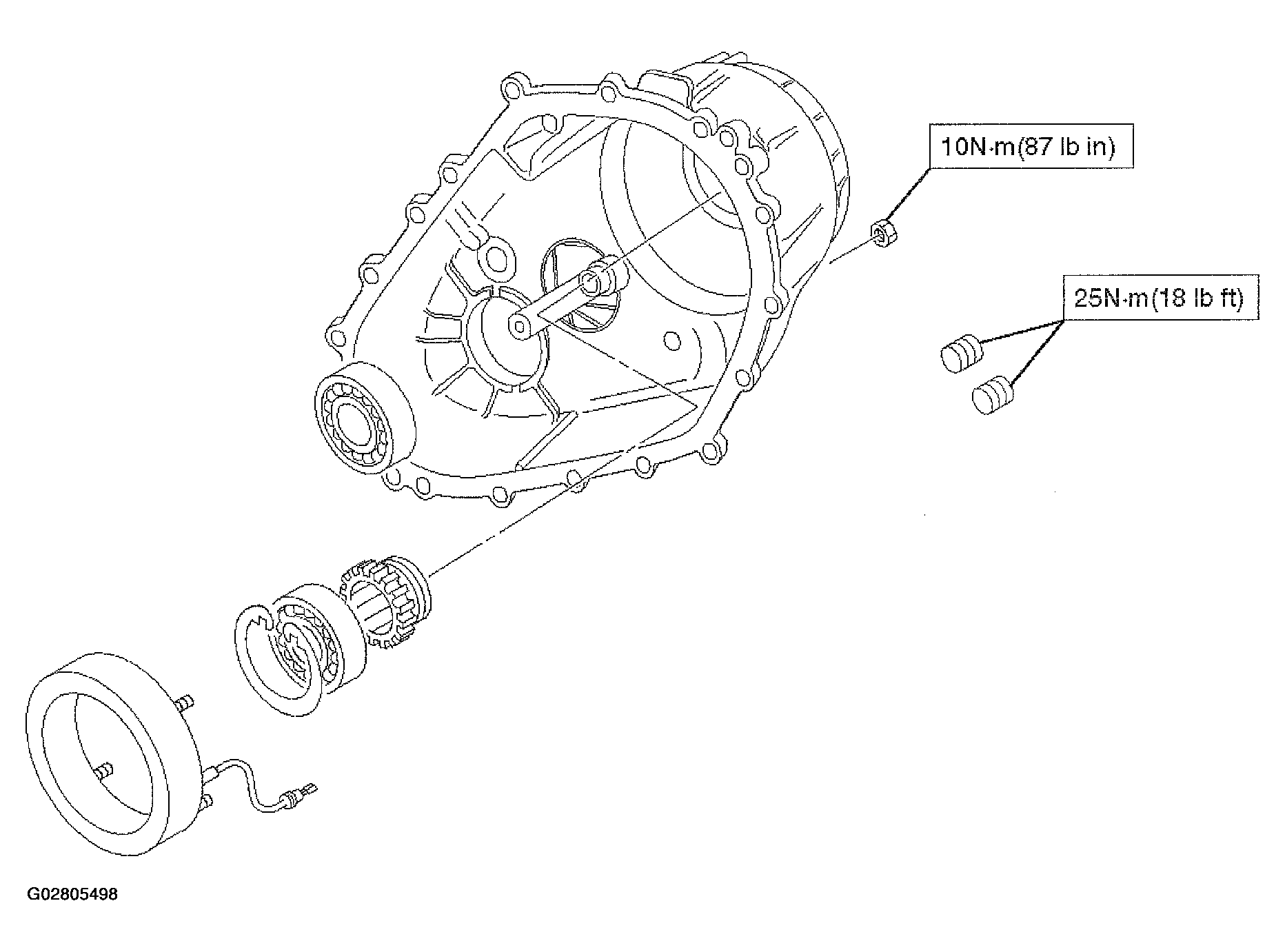

Fig 3: Torque Specifications (3 Of 3)

G02805498

Courtesy of ISUZU MOTOR CO.
