Chart C-1-2: FR Sensor Output Inspection Procedure
Chart C-1-2: FR Sensor Output Inspection Procedure

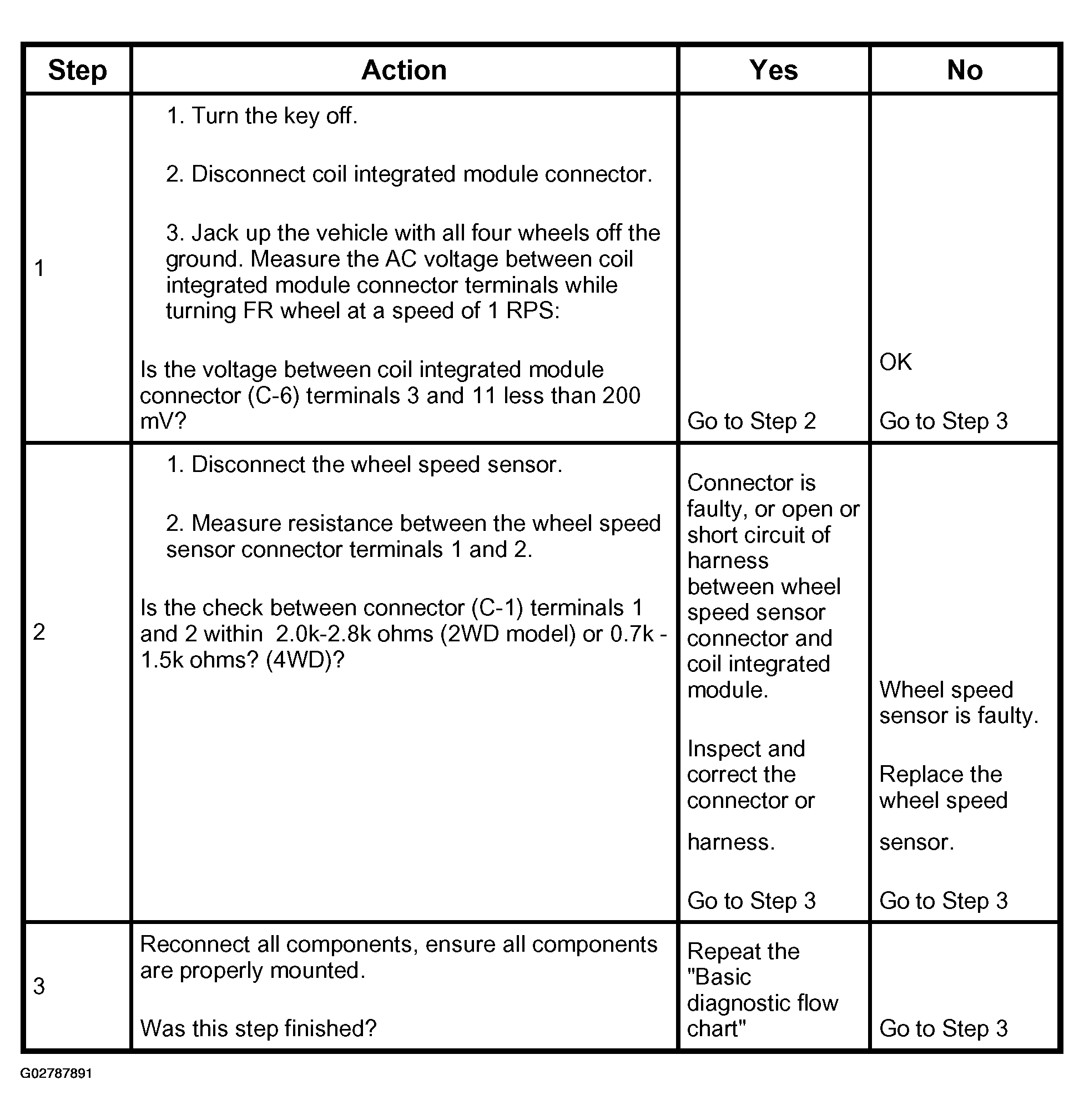

Fig 1: Unit Inspection Procedure Chart - FR Sensor Output Inspection Procedure
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
