Installation Procedure

  1. Insert the relay into the correct place in the fuse and relay box with the catch slot facing forward.
  2. Press down until the catch engages.
    • An audible "click" will be heard.

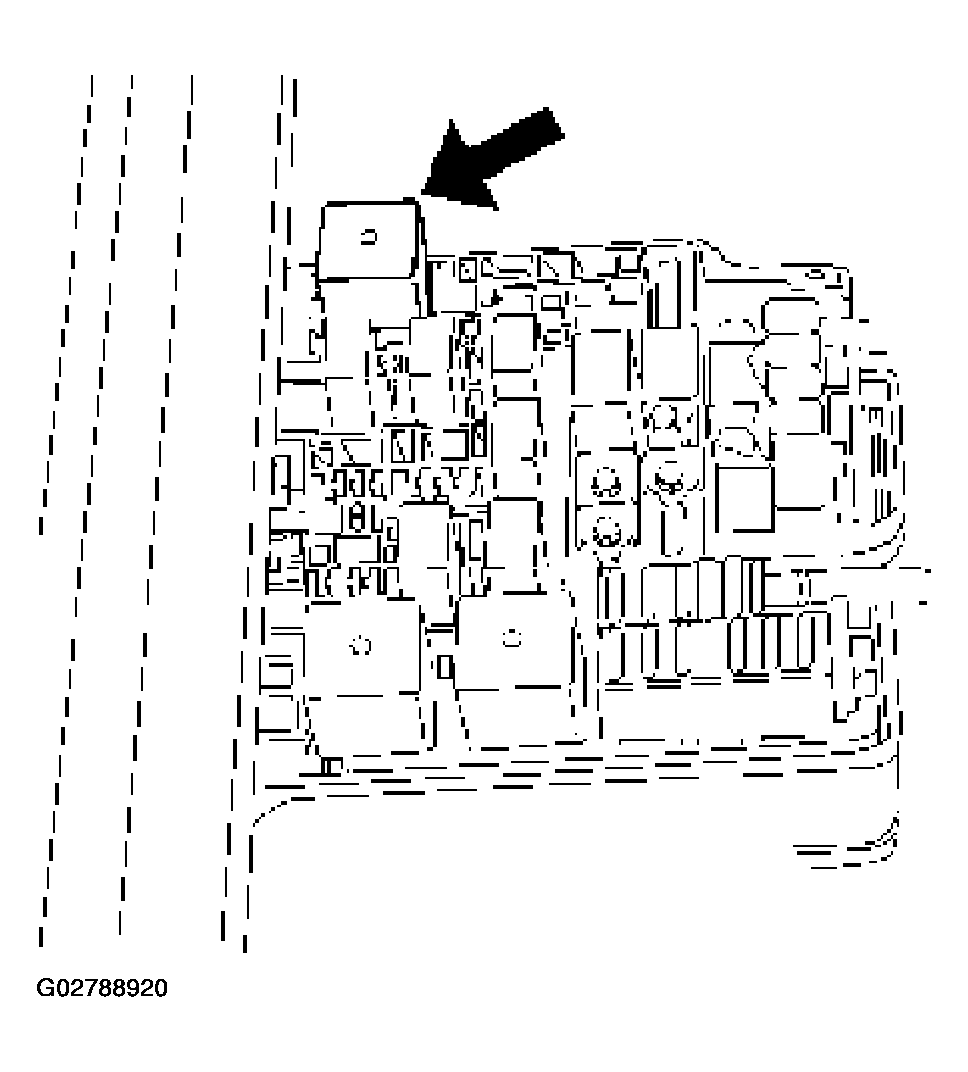

    Fig 1: Inserting Relay Into Correct Place In Fuse
    G02788920Courtesy of ISUZU MOTOR CO.
  3. Install the fuse and relay box cover.
