A/C Clutch Control Circuit Diagnosis: Notes

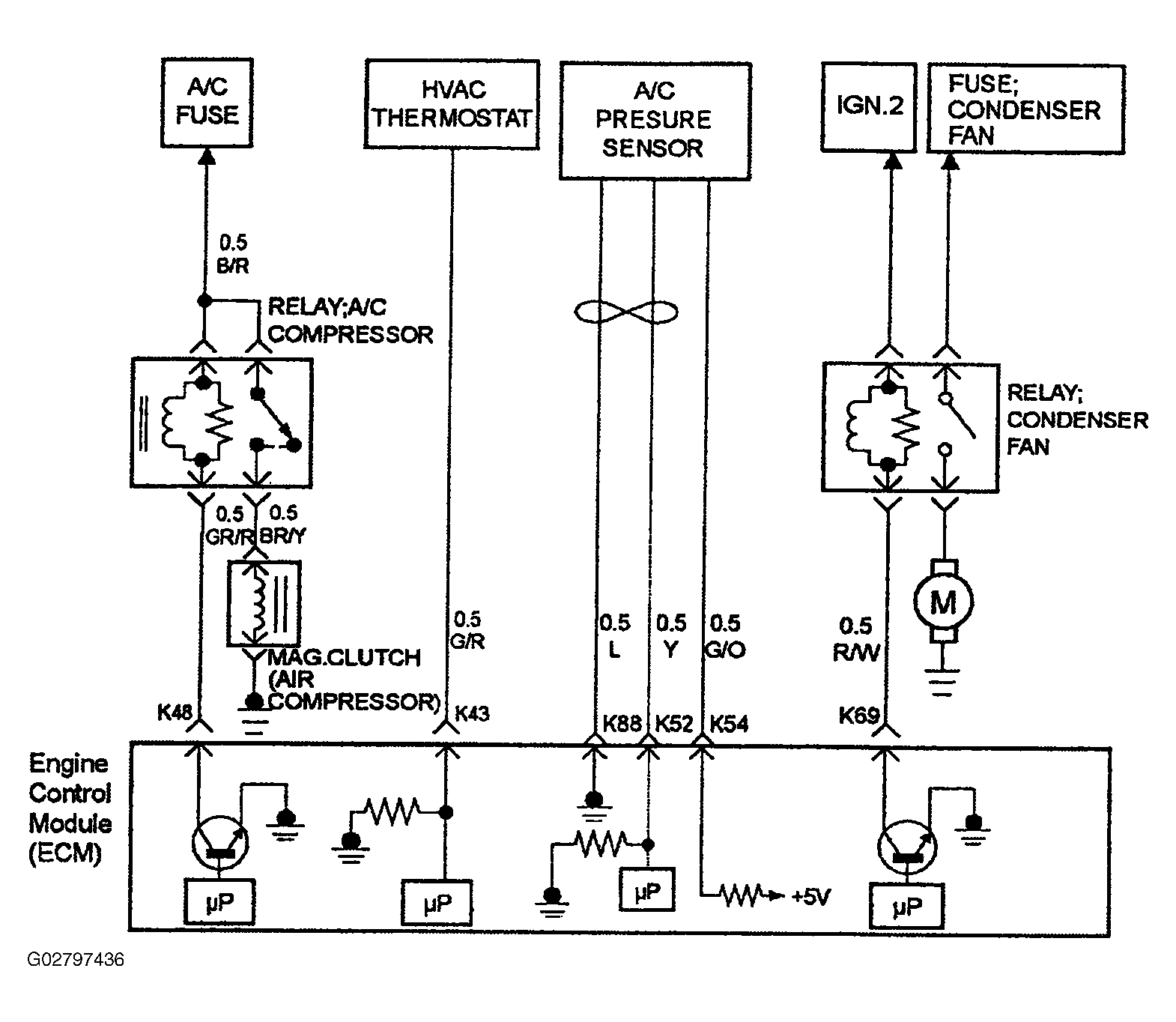

Fig 1: Identifying A/C Clutch Control Circuit Diagnosis Wiring Diagram
G02797436Courtesy of ISUZU MOTOR CO.
