No Reduced Power Lamp (RPL): Notes

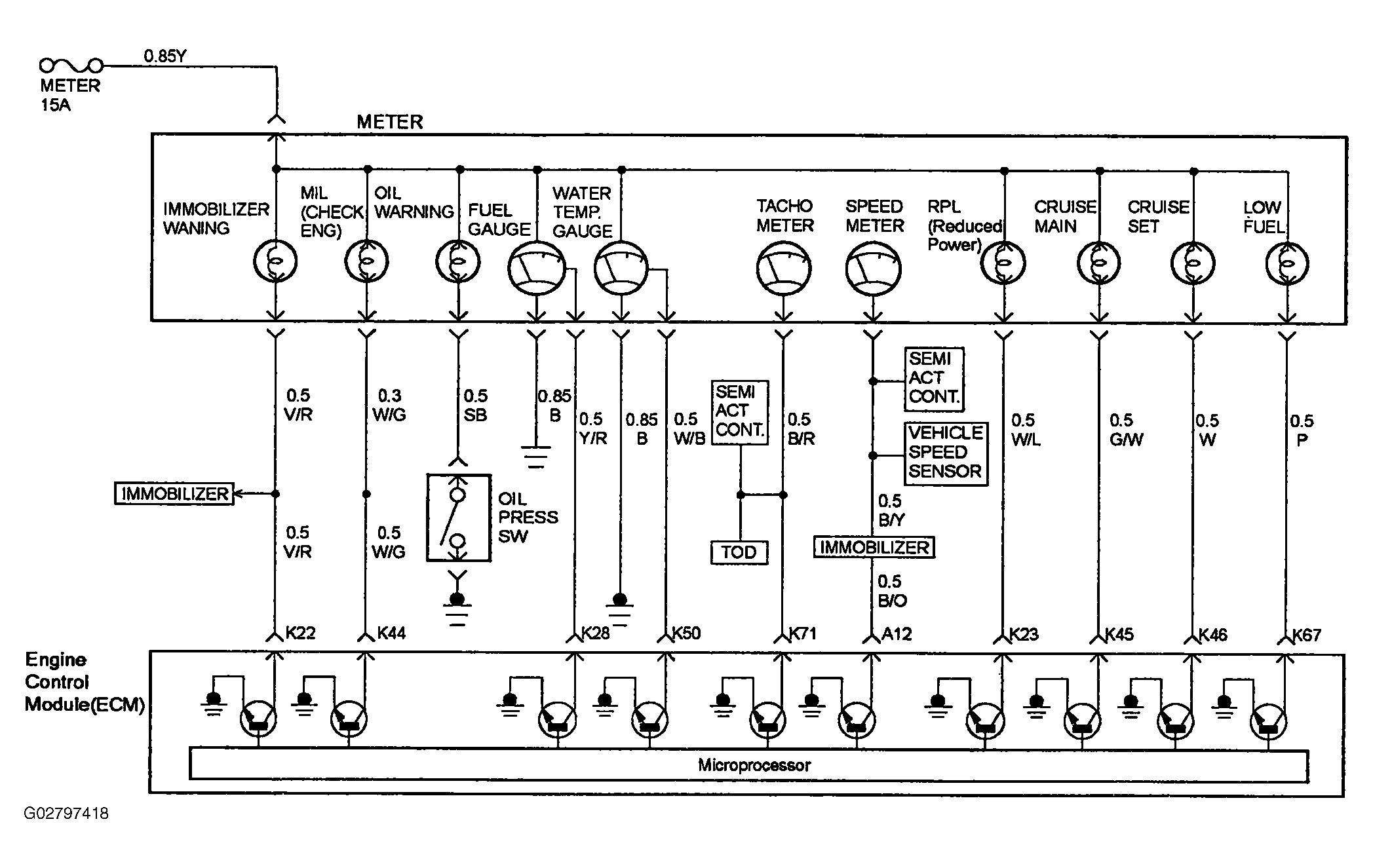

Fig 1: Identifying No Reduced Power Lamp (RPL) Wiring Diagram
G02797418Courtesy of ISUZU MOTOR CO.
