Front End Alignment Inspection and Adjustment
›
Main Data and Specifications
›
Torque Specification
Torque Specification

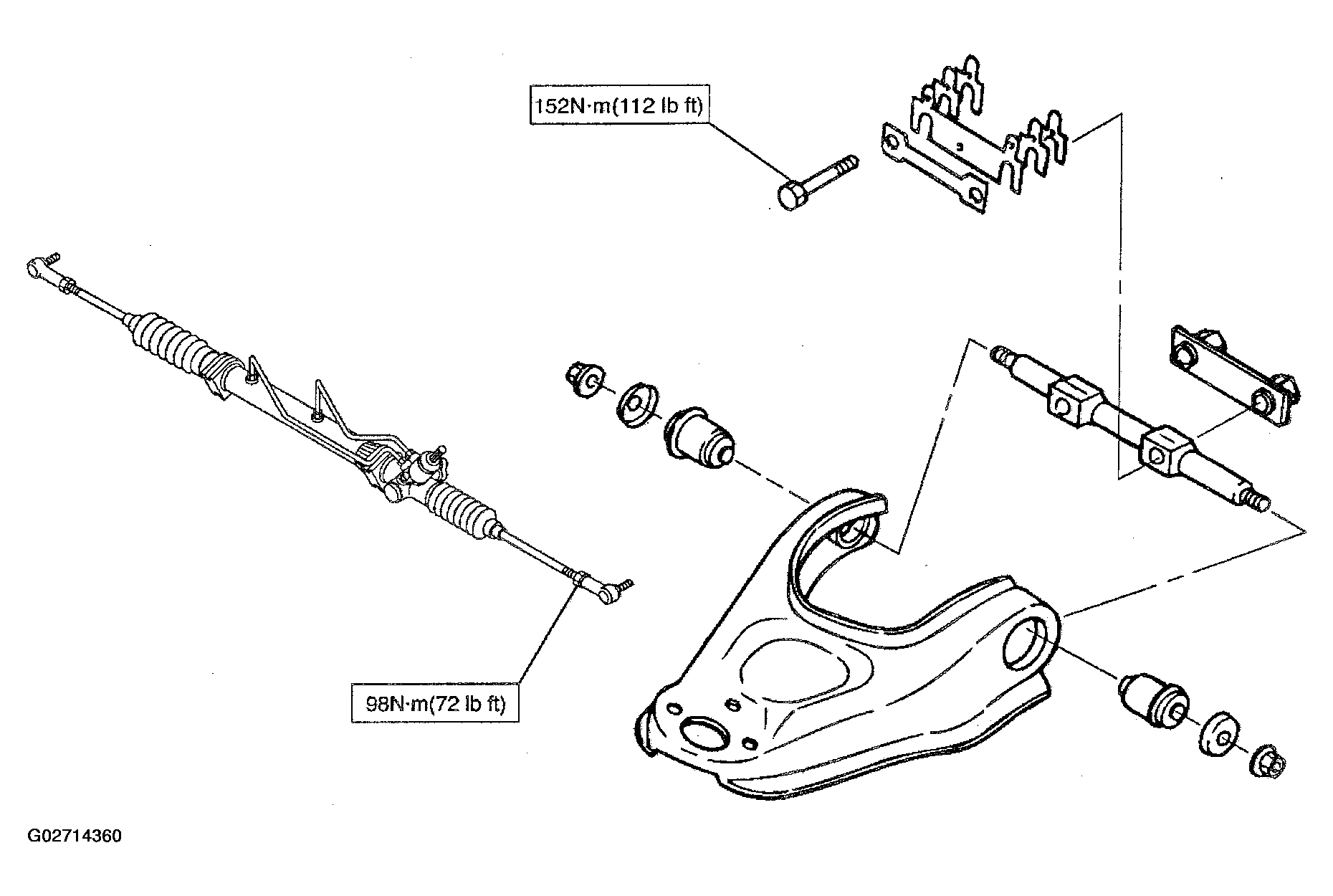

Fig 1: Front End Alignment Torque Specification
Courtesy of ISUZU MOTOR CO.
