Power-Assisted Steering System
›
Power Steering Unit
›
Power Steering Unit Disassembled View
Power Steering Unit Disassembled View

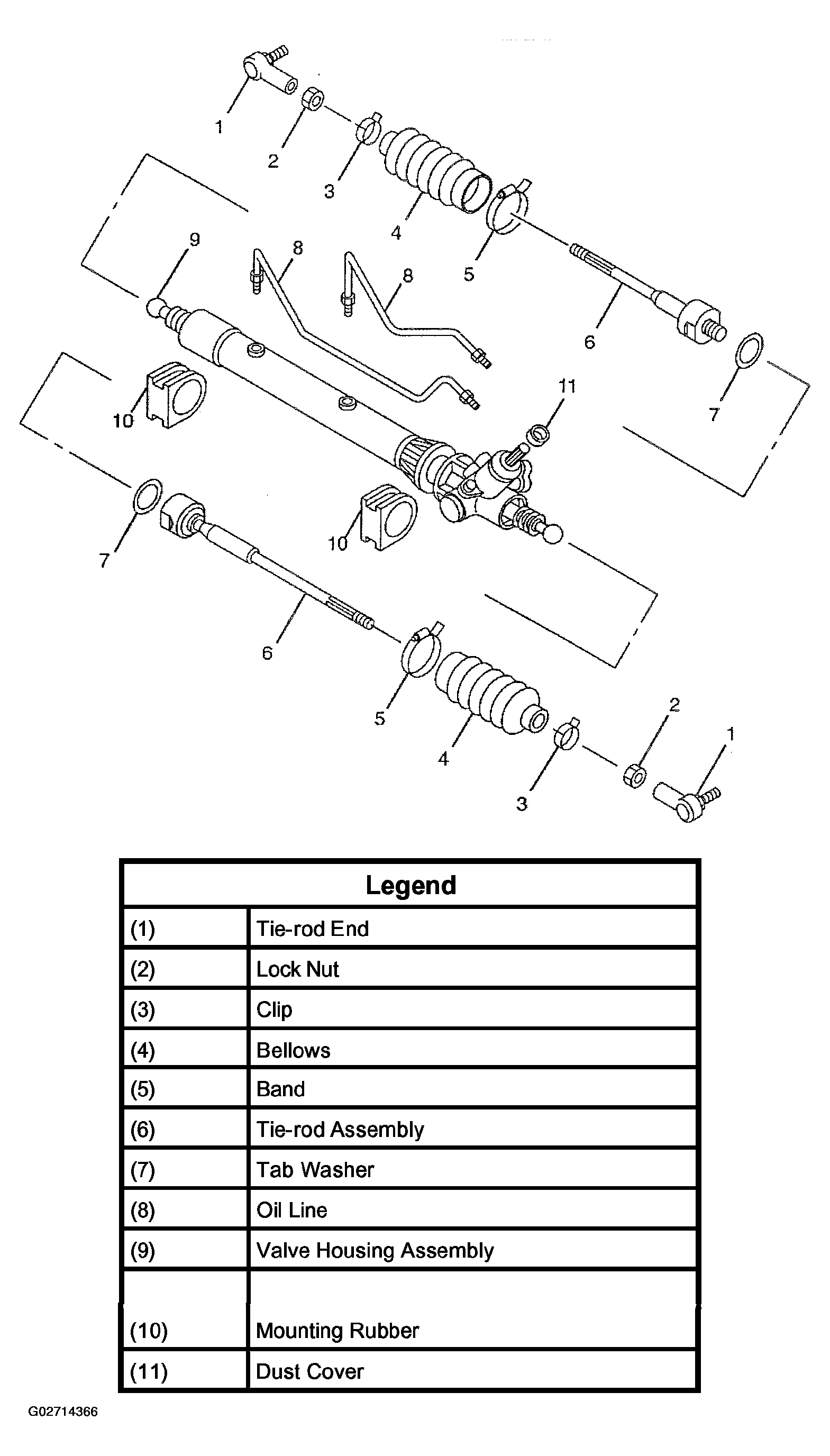

Fig 1: Identifying Power Steering Unit Components
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
