DTC P0705: (FLASHING CODE 17) Transmission Range Sensor Circuit: Notes

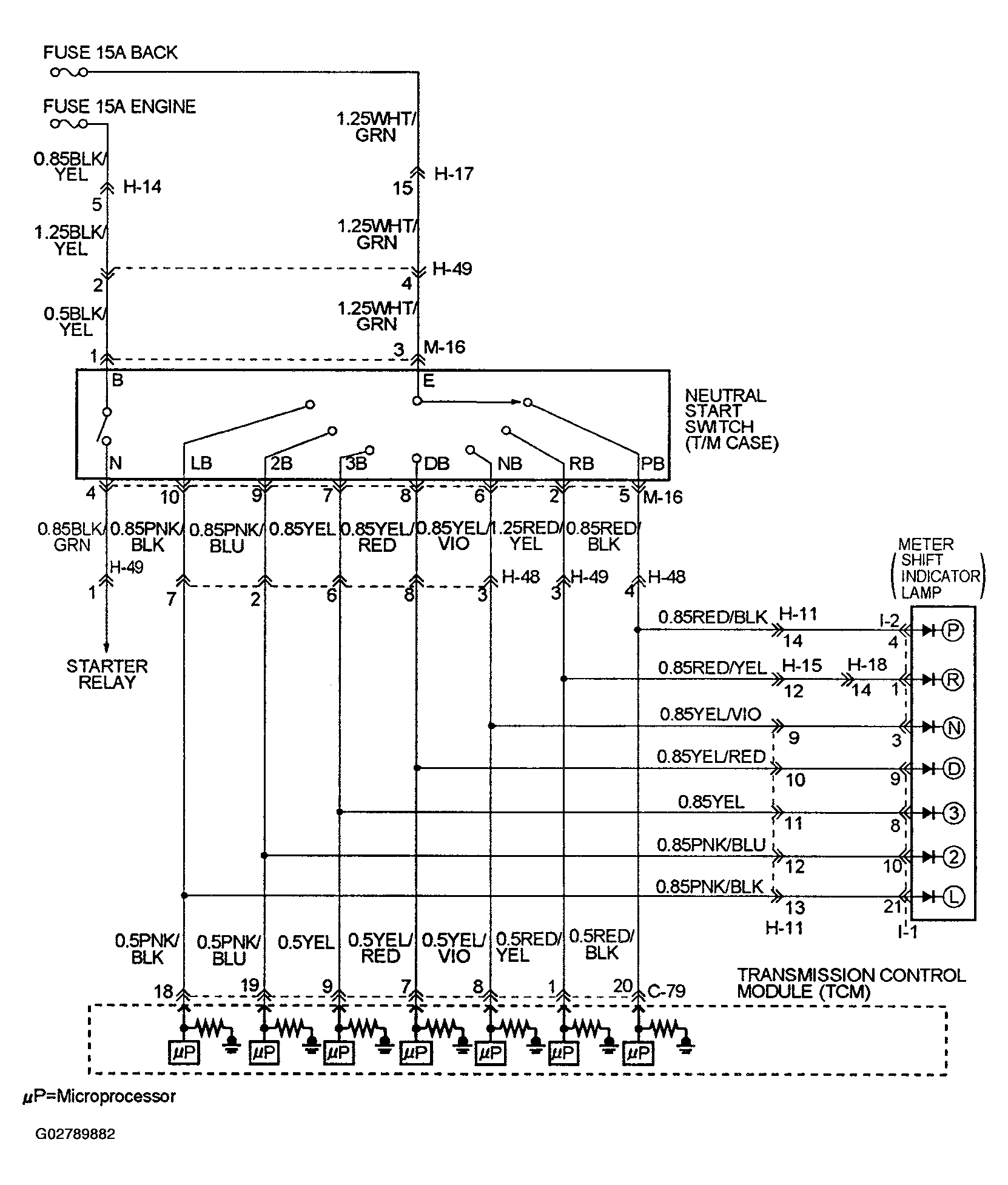

Fig 1: DTC P0705: (Flashing Code 17) Transmission Range Sensor Circuit Wiring Diagram
G02789882Courtesy of ISUZU MOTOR CO.
