Abs Brake Control System (Diagnostics)
›
Unit Inspection Procedure
›
Chart TC-1 Sensor Output Inspection Procedure
Chart TC-1 Sensor Output Inspection Procedure

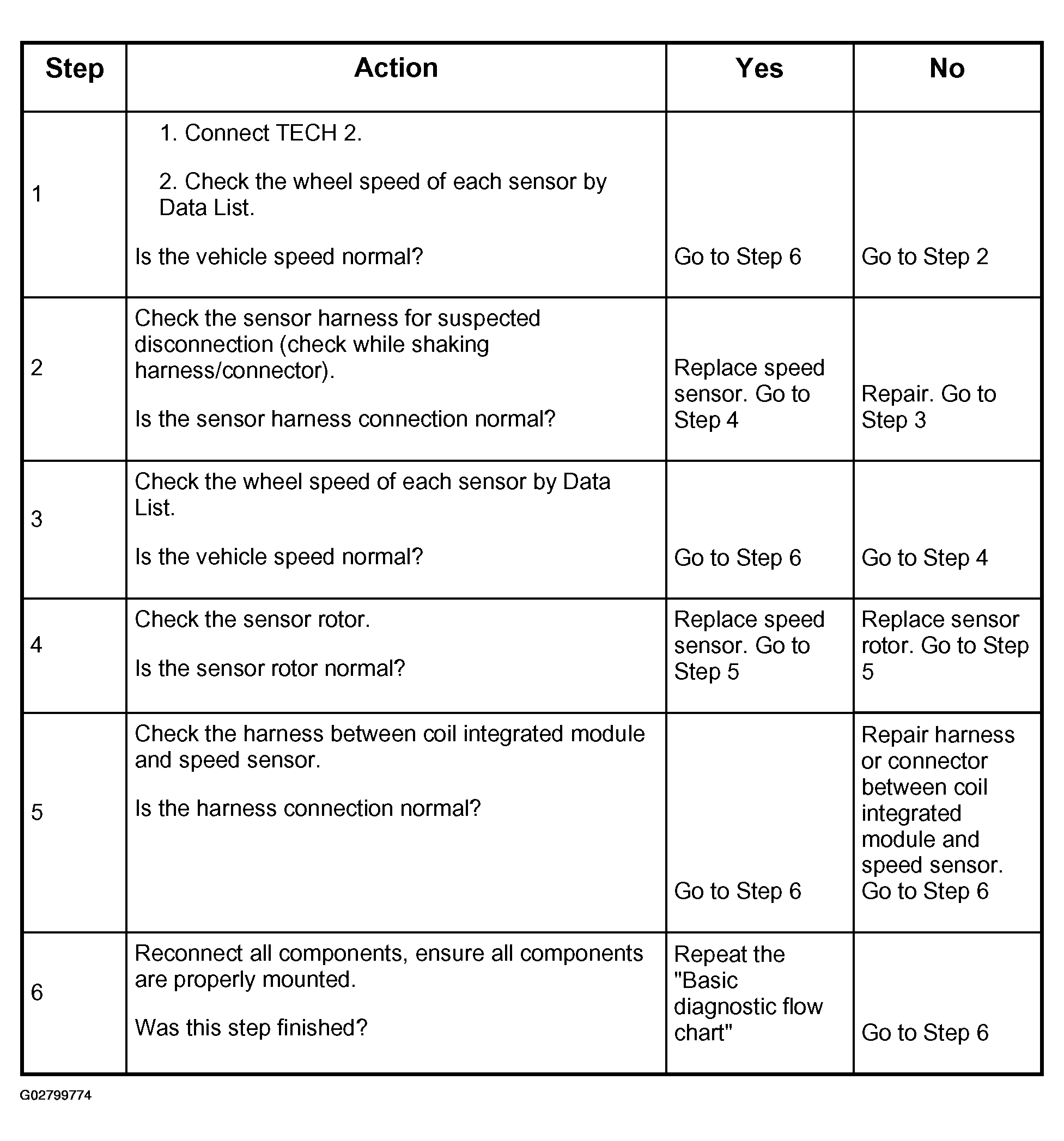

Fig 1: Chart TC-1 Sensor Output Inspection Procedure
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
