ID Code Additional Registration

This procedure additionally registers a new ID code with holding registered ID codes. If total number of registered ID codes and newly registered ID code exceed four, the oldest one is erased.

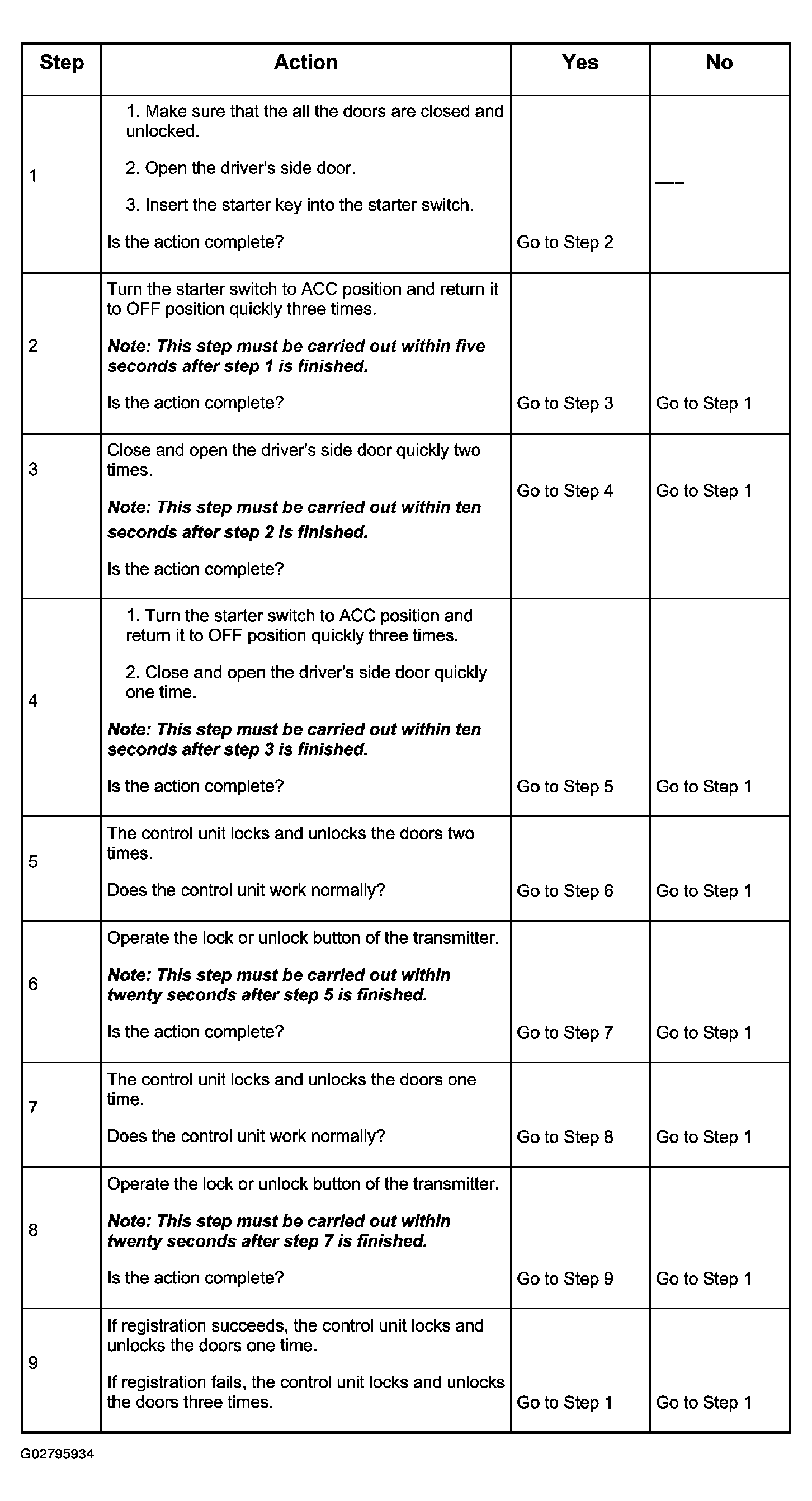

Fig 1: ID Code Additional Registration Chart

Courtesy of ISUZU MOTOR CO.
