Abs Brake Control System (Diagnostics)
›
General Diagnosis
›
Basic Diagnostic Flow Chart
Basic Diagnostic Flow Chart

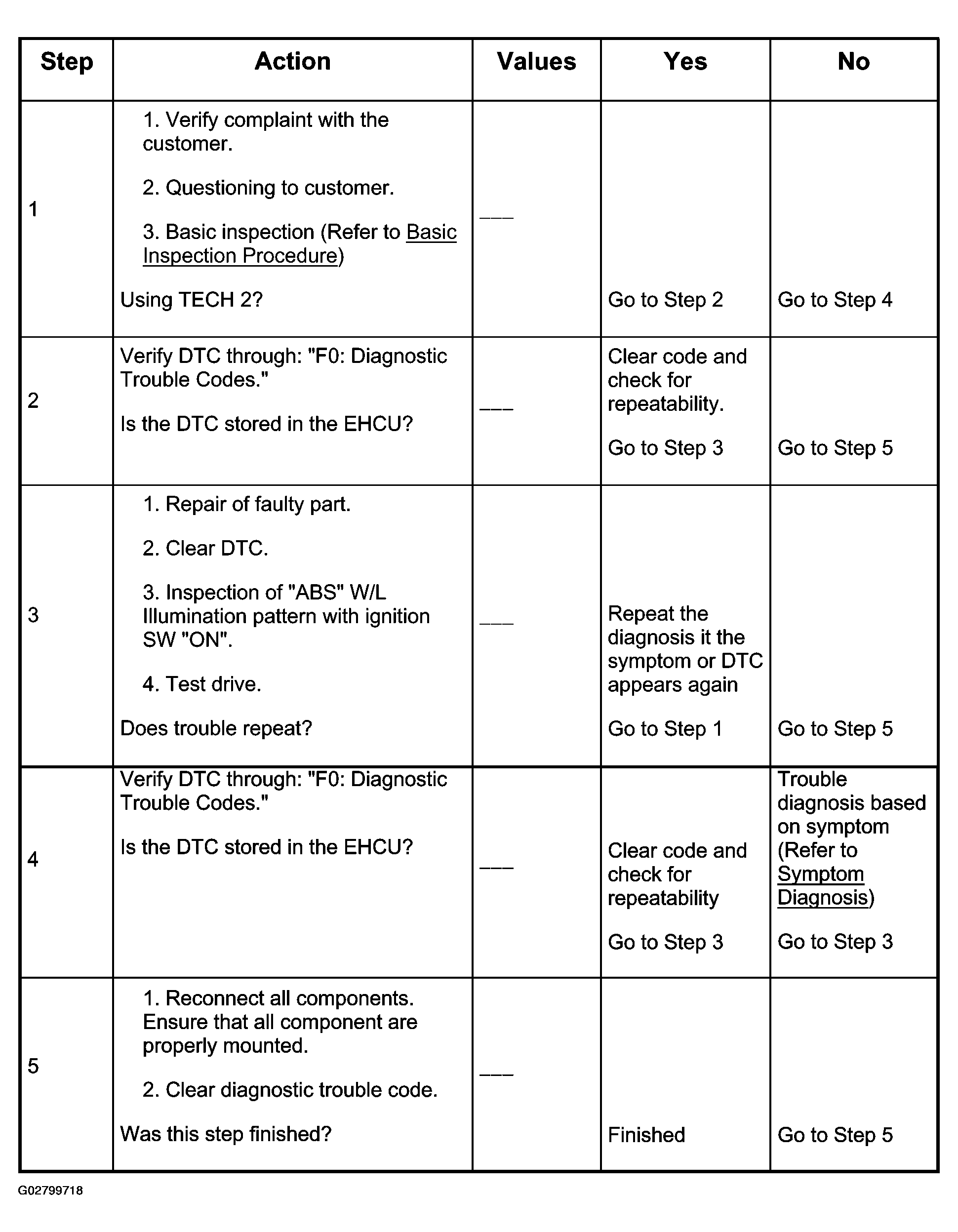

Fig 1: Basic Diagnostic Flow Chart
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
