Tech 2 Service Bleed

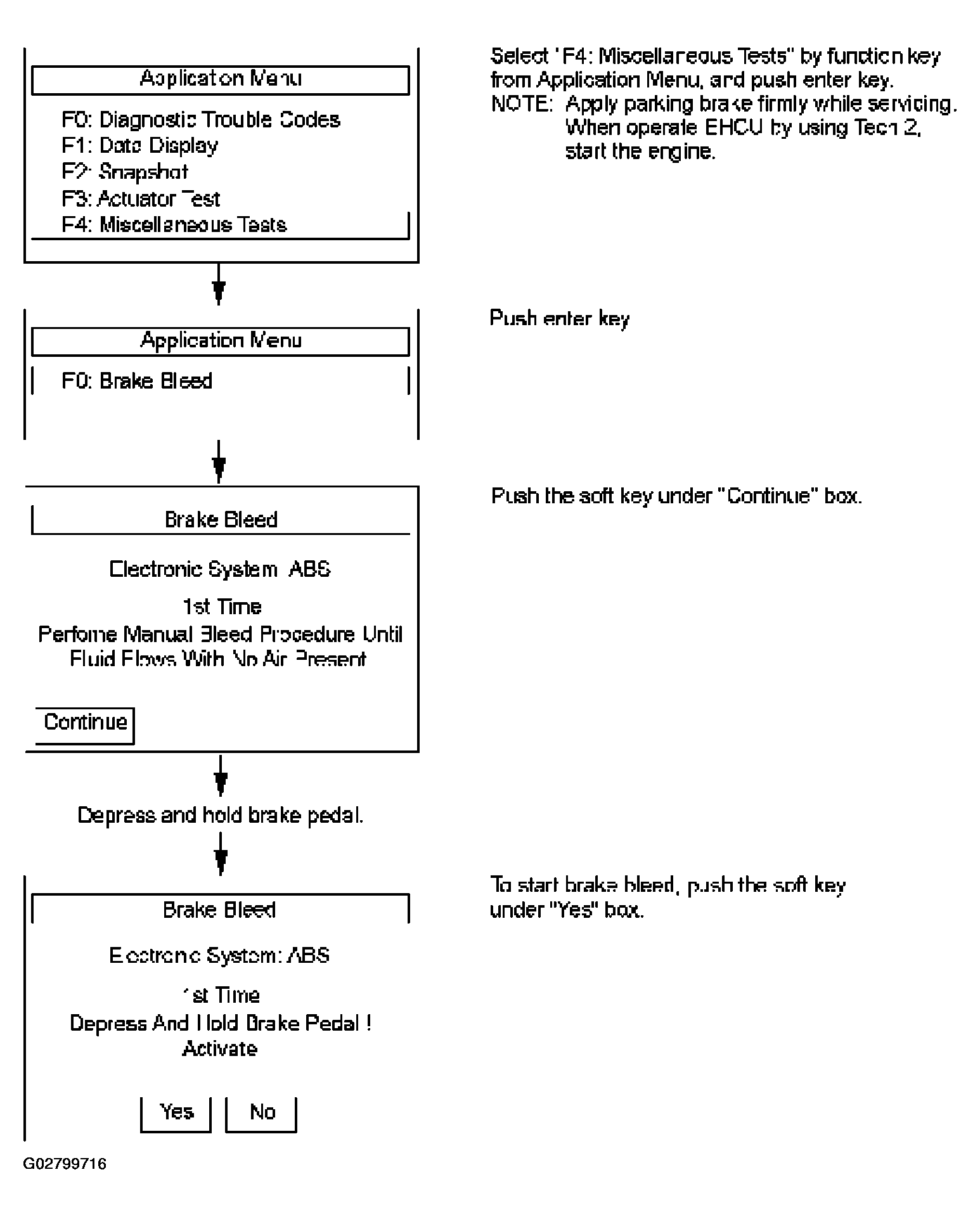

Fig 1: Identifying Tech 2 Service Bleed (1 Of 2)
G02799716Courtesy of ISUZU MOTOR CO.

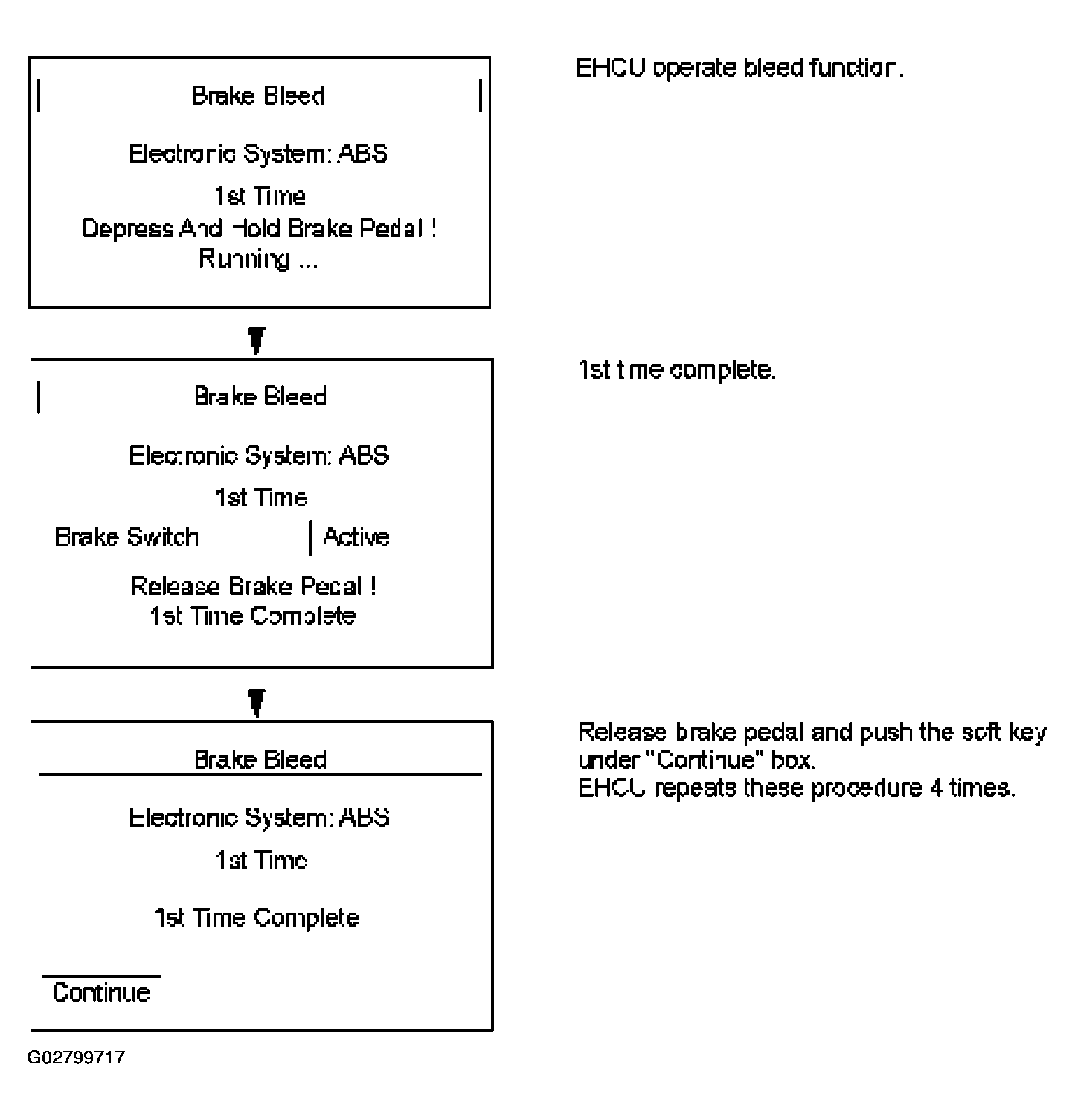

Fig 2: Identifying Tech 2 Service Bleed (2 Of 2)
G02799717Courtesy of ISUZU MOTOR CO.
