Power Steering Unit Disassembled View

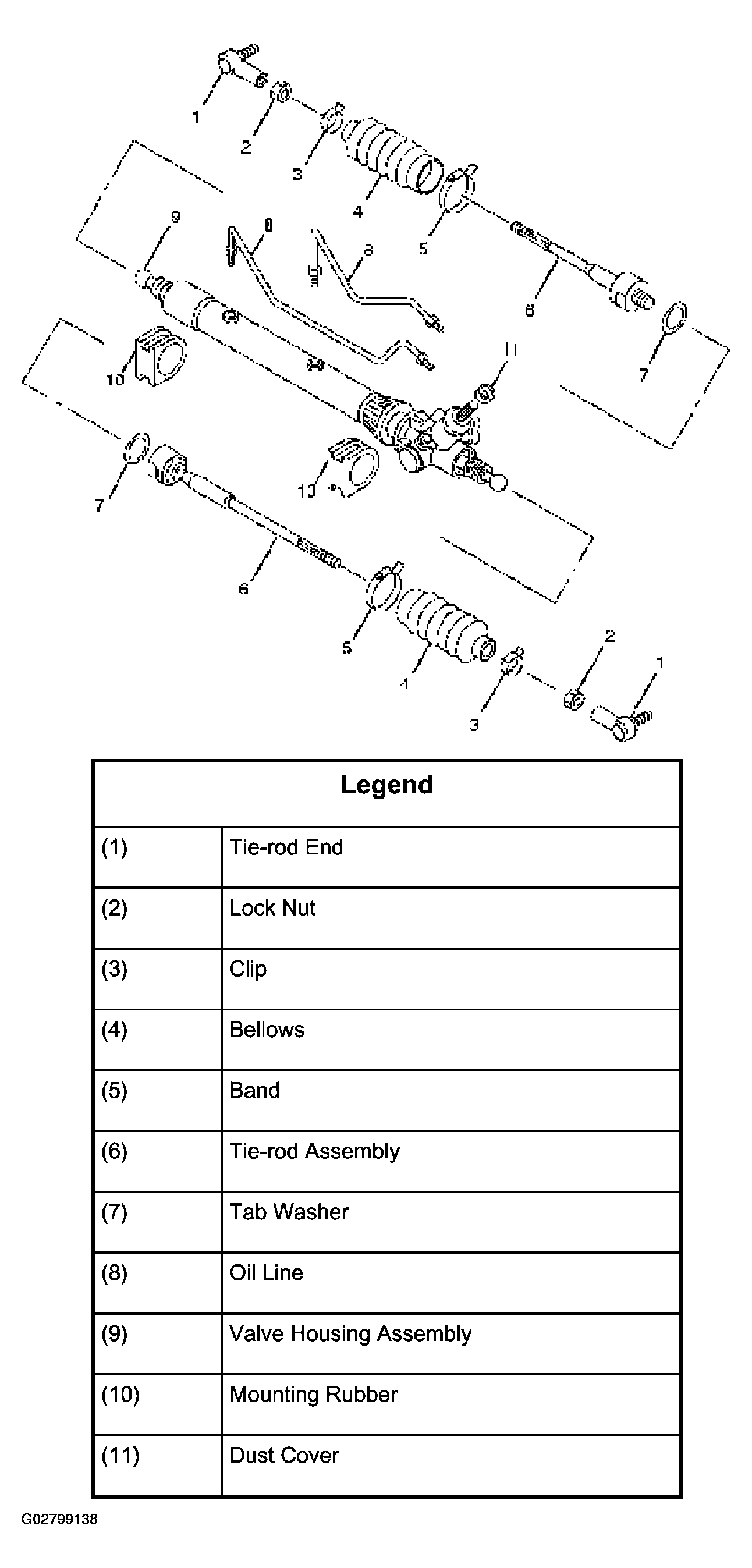

Fig 1: Disassembled View Of Power Steering Unit
G02799138Courtesy of ISUZU MOTOR CO.
