Frame Dimensions
Frame Dimensions

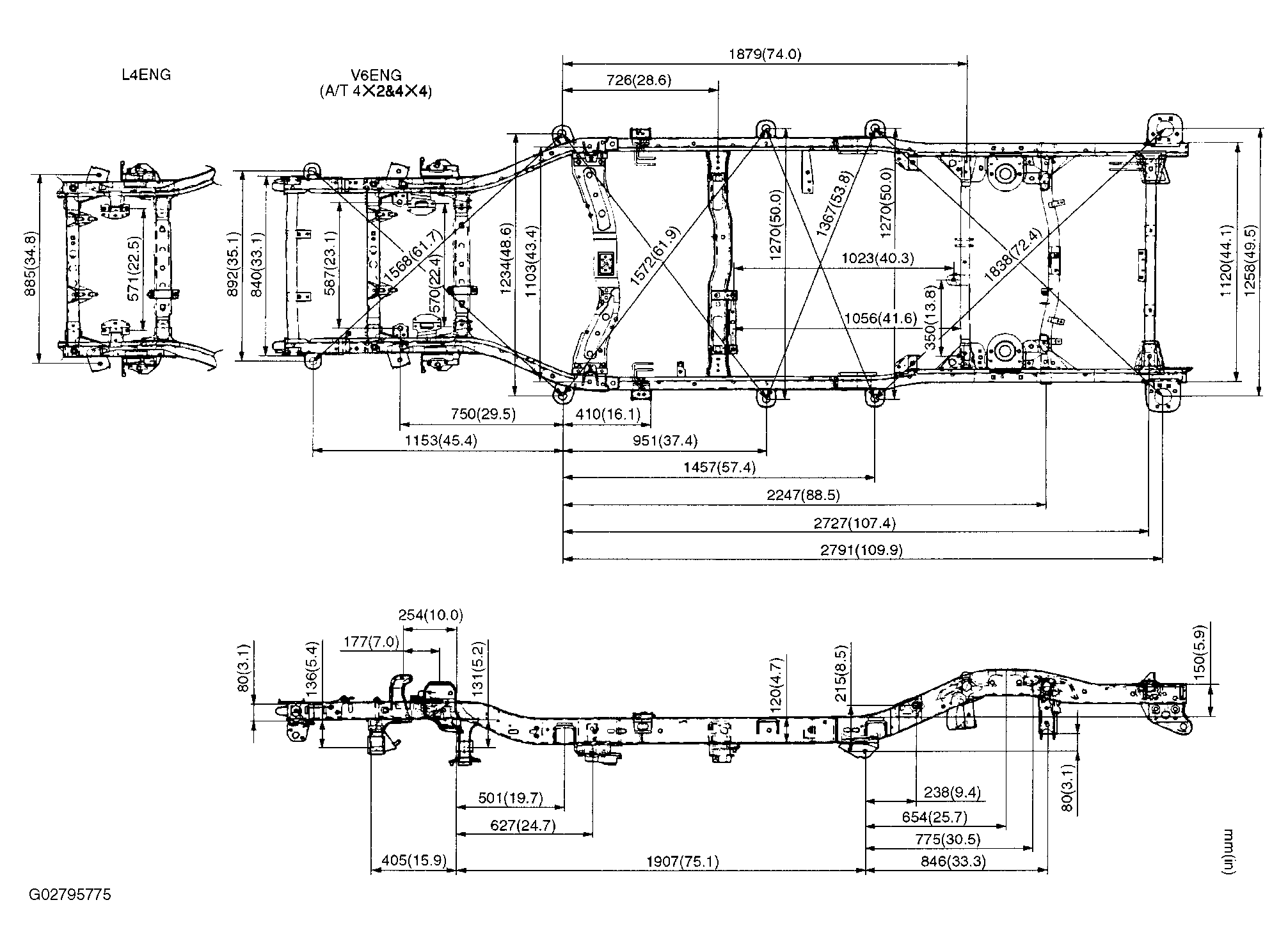

Fig 1: Identifying Dimensions Of Frame
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
