Chart C-1-1 FL Sensor Output Inspection Procedure

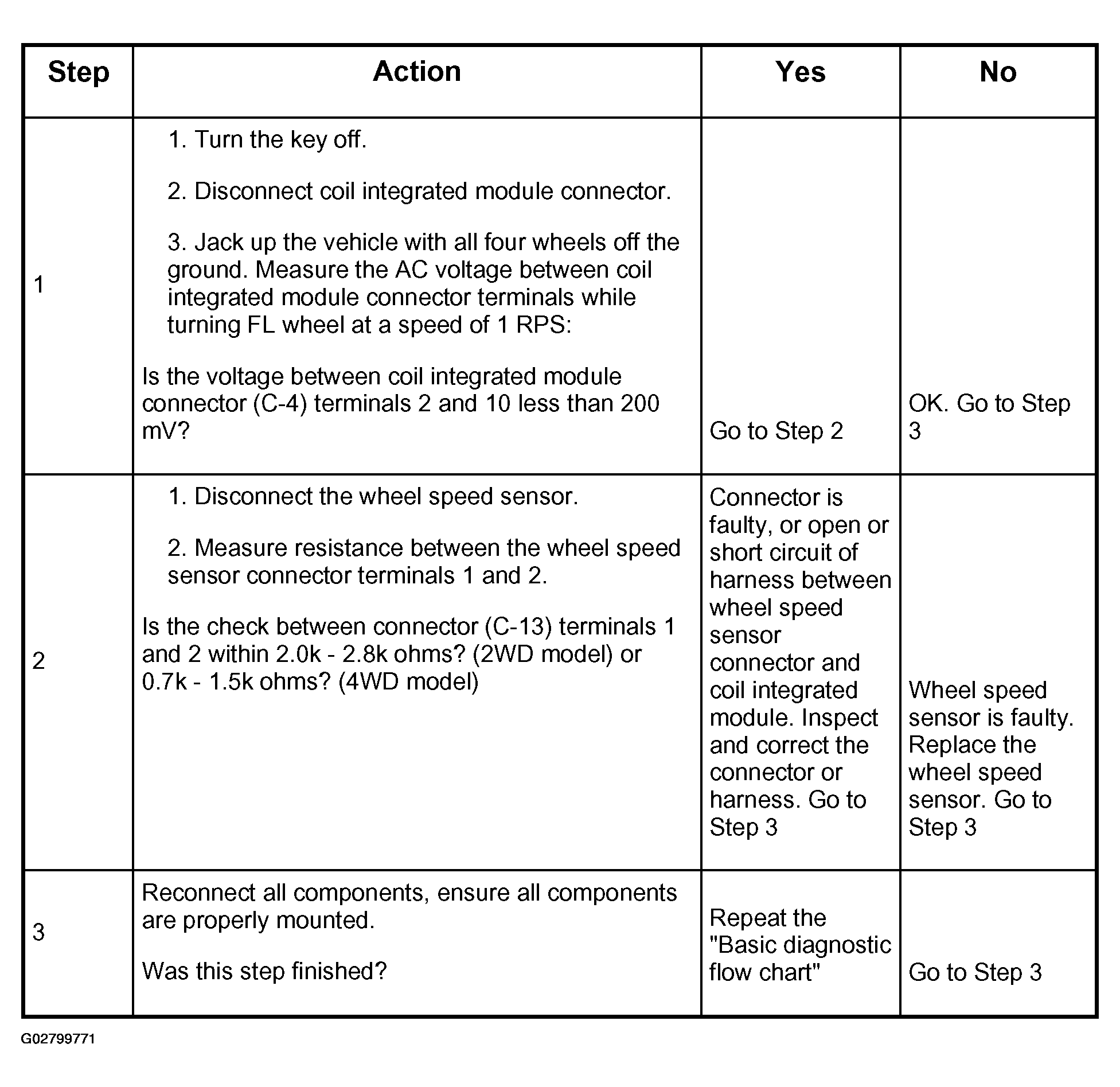

Fig 1: Chart C-1-1 FL Sensor Output Inspection Procedure Chart
G02799771Courtesy of ISUZU MOTOR CO.
