Chart C-1-3 Rear Sensor Output Inspection Procedure
Chart C-1-3 Rear Sensor Output Inspection Procedure

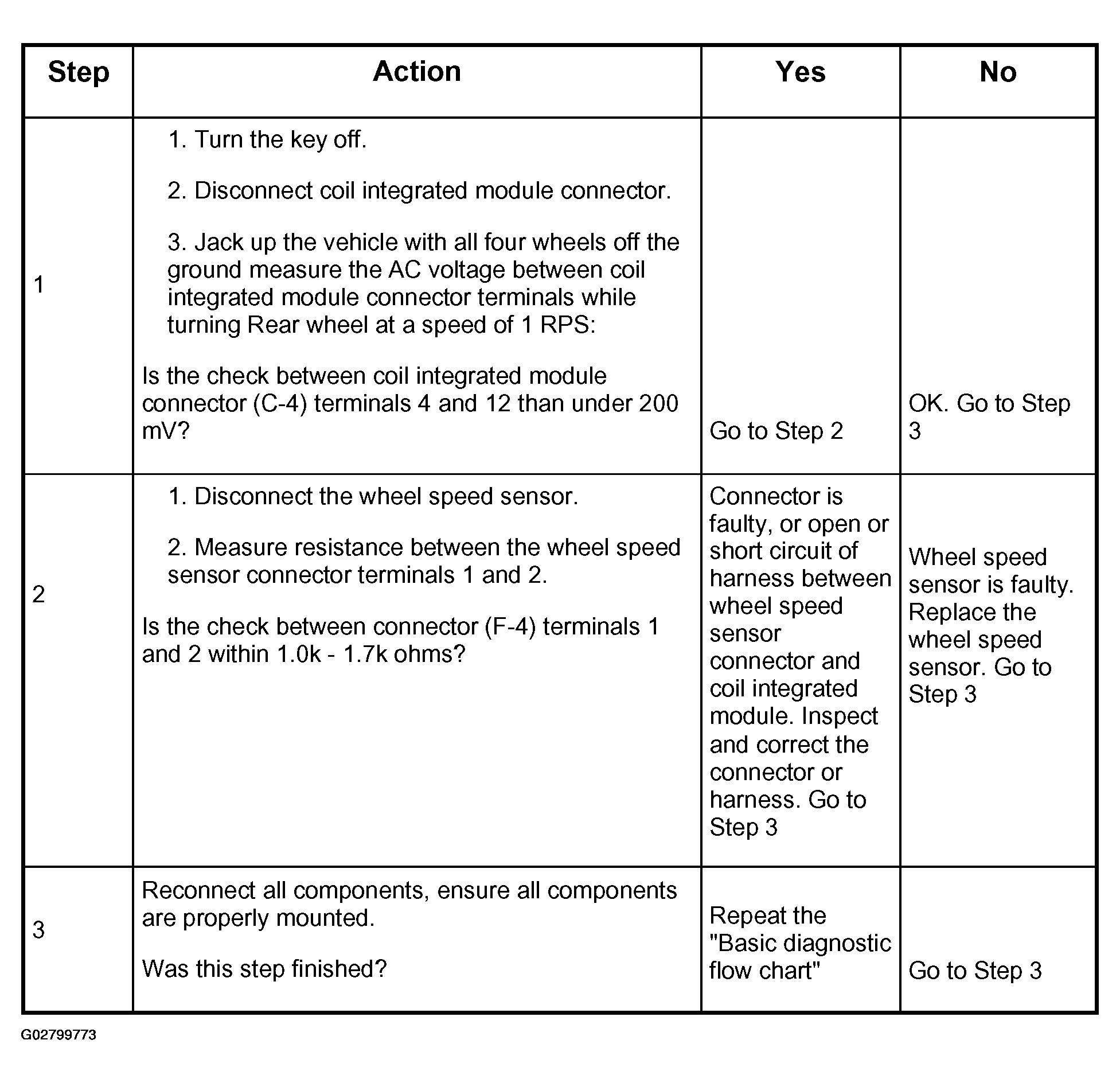

Fig 1: Chart C-1-3 Rear Sensor Output Inspection Procedure Chart
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
