Steering Column Lock System
Steering Column Lock System

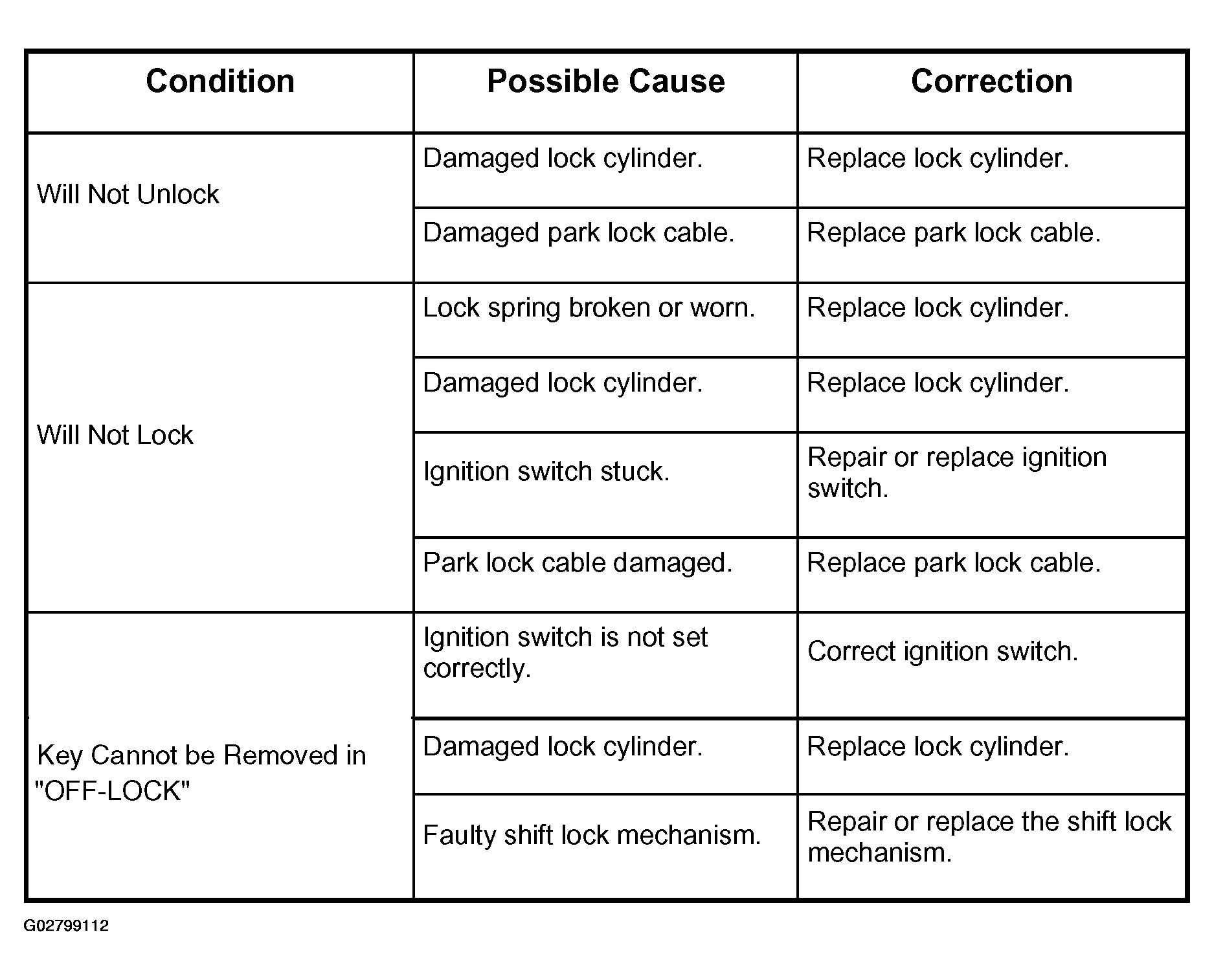

Fig 1: Diagnosis Procedure - Steering Column Lock System
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
