Door Control Module Schematics

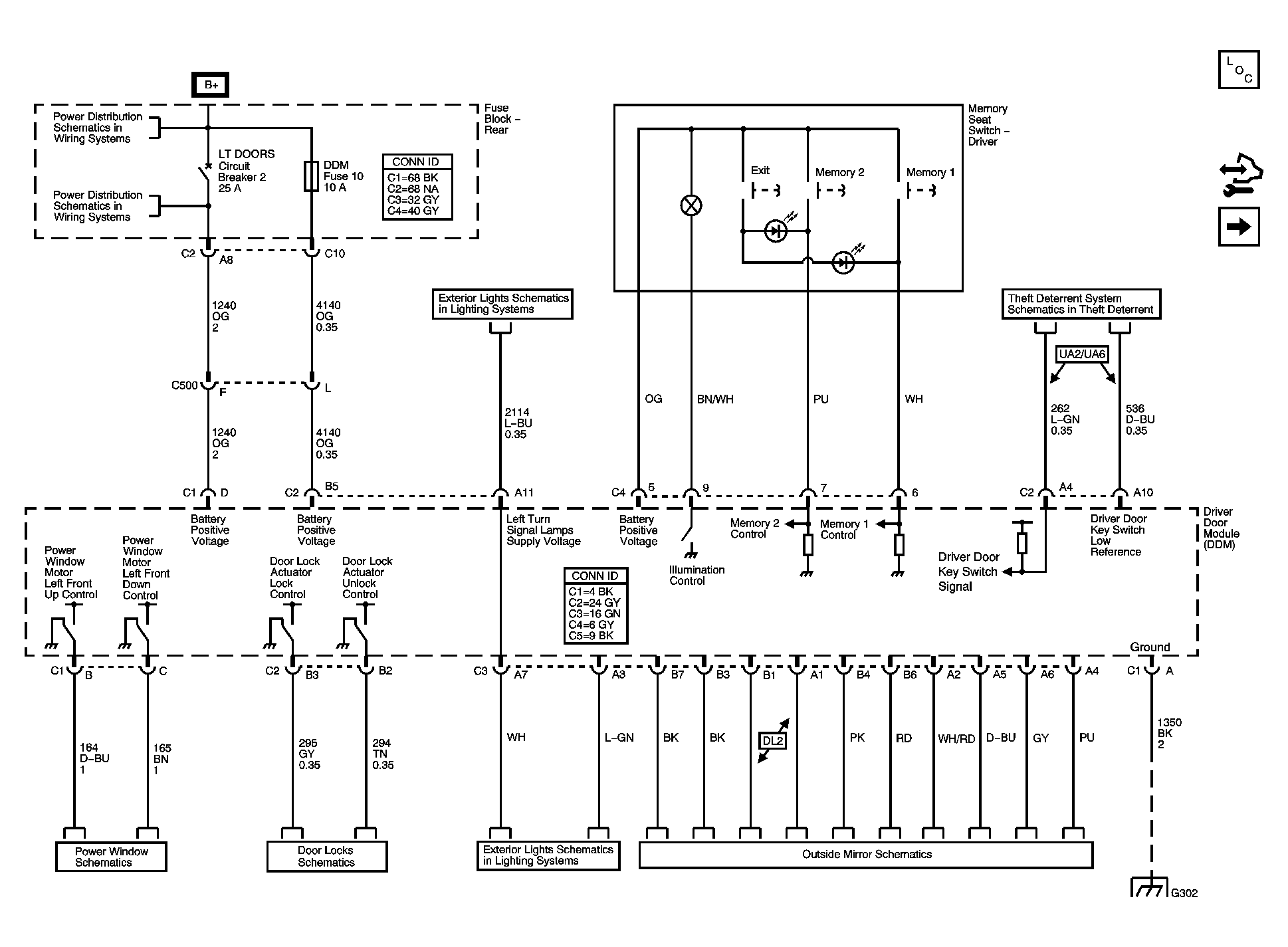

Fig 1: Power, Ground, and Subsystem References Schematics

Courtesy of GENERAL MOTORS CORP.

Fig 2: Serial Data and Subsystem References Schematics

Courtesy of GENERAL MOTORS CORP.

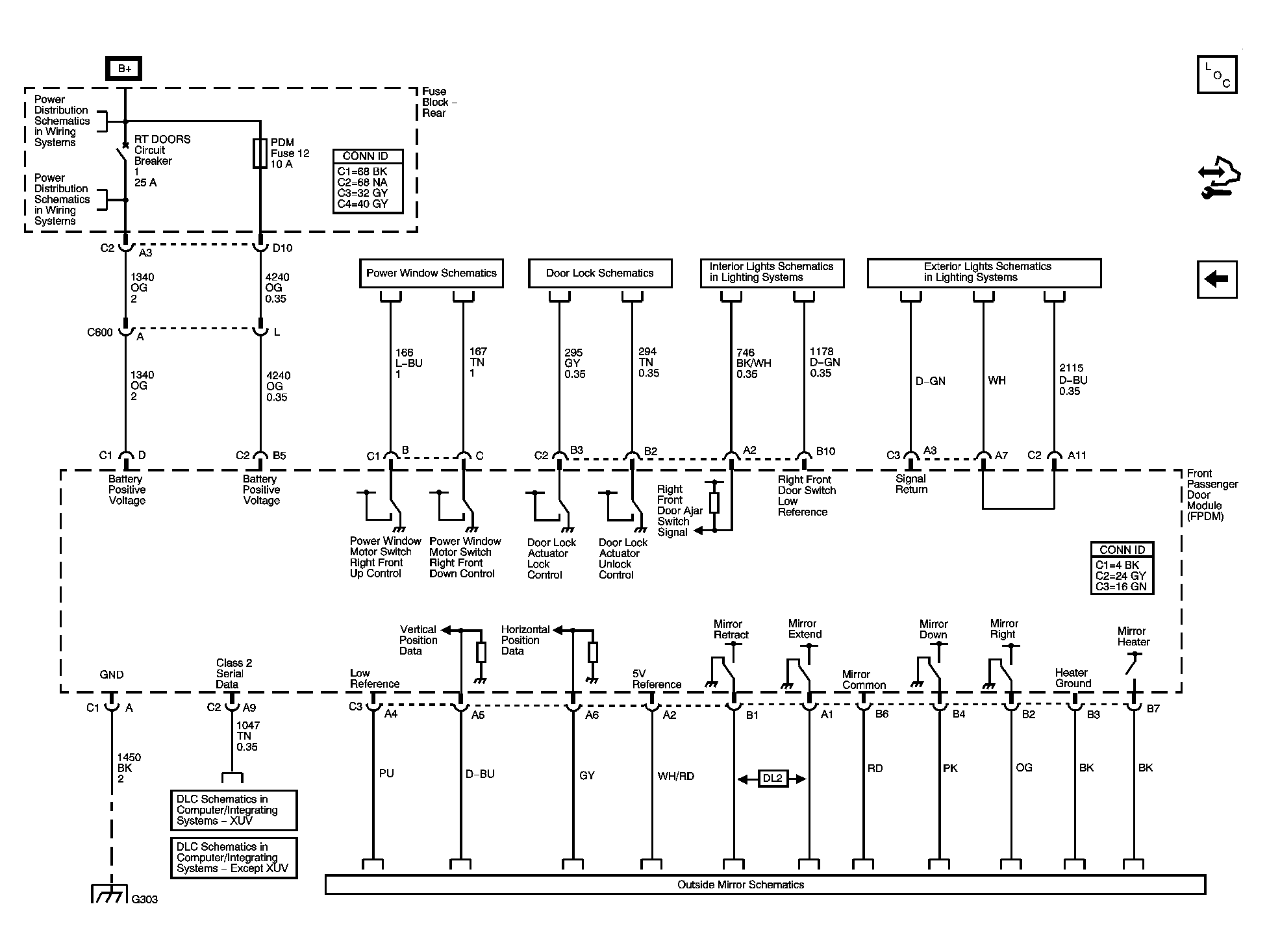

Fig 3: Front Passenger Schematics

Courtesy of GENERAL MOTORS CORP.
