Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Above Left Side Of Grille

G00288899

Courtesy of ISUZU MOTOR CO.

Fig 2: Left Side Of Engine Compartment

G00288900

Courtesy of ISUZU MOTOR CO.

Fig 3: Left Side Of Engine Compartment

G00288901

Courtesy of ISUZU MOTOR CO.

Fig 4: Left Side Of Engine Compartment

G00288902

Courtesy of ISUZU MOTOR CO.

Fig 5: Left Front Of Engine (4.2L)

G00288903

Courtesy of ISUZU MOTOR CO.

Fig 6: Top Rear Of Engine (4.2L)

G00288904

Courtesy of ISUZU MOTOR CO.

Fig 7: Left Front Of Engine (4.2L)

G00288905

Courtesy of ISUZU MOTOR CO.

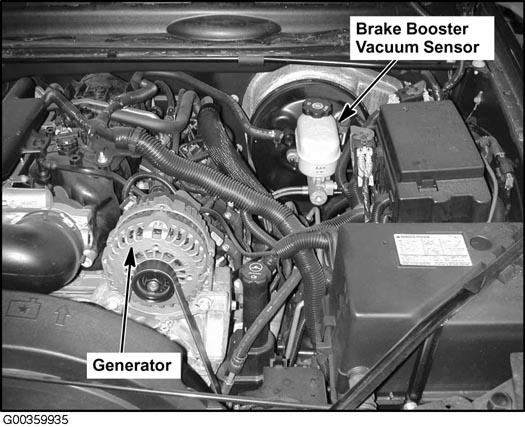

Fig 8: Top Left Of Engine (5.3L)

G00359935

Courtesy of ISUZU MOTOR CO.

Fig 9: Left Rear Of Hood

G00288907

Courtesy of ISUZU MOTOR CO.

Fig 10: Right Rear Of Engine Compartment

G00288908

Courtesy of ISUZU MOTOR CO.

Fig 11: Right Front Of Engine Compartment

G00288909

Courtesy of ISUZU MOTOR CO.

Fig 12: Right Front Of Engine Compartment

G00288910

Courtesy of ISUZU MOTOR CO.

Fig 13: Right Front Of Engine (4.2L)

G00288911

Courtesy of ISUZU MOTOR CO.

Fig 14: Right Front Of Engine (4.2L)

G00288912

Courtesy of ISUZU MOTOR CO.

Fig 15: Right Rear Of Engine Compartment (4.2L)

G00288913

Courtesy of ISUZU MOTOR CO.

Fig 16: Top Of Engine (4.2L)

G00288914

Courtesy of ISUZU MOTOR CO.

Fig 17: Under Cowl Cover (Cover Removed)

G00288915

Courtesy of ISUZU MOTOR CO.

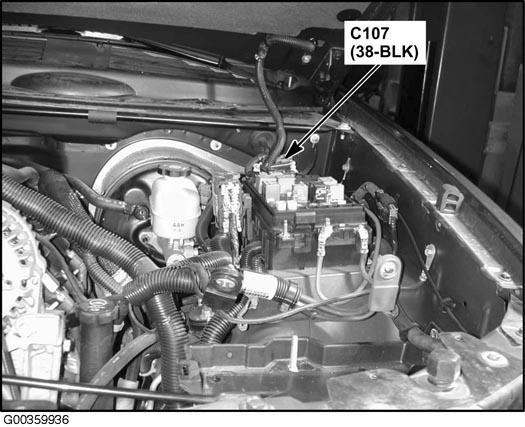

Fig 18: Left Rear Of Engine Compartment (5.3L)

G00359936

Courtesy of ISUZU MOTOR CO.

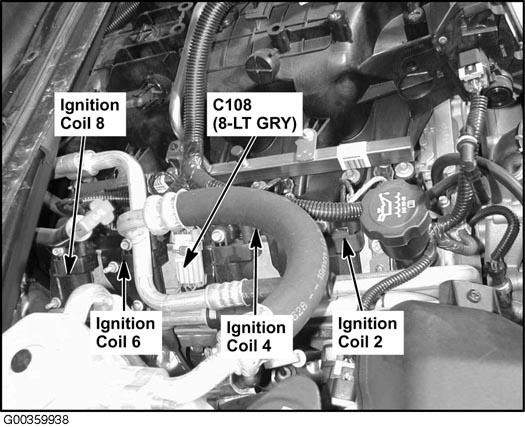

Fig 19: Top Right Side Of Engine (5.3L)

G00359938

Courtesy of ISUZU MOTOR CO.

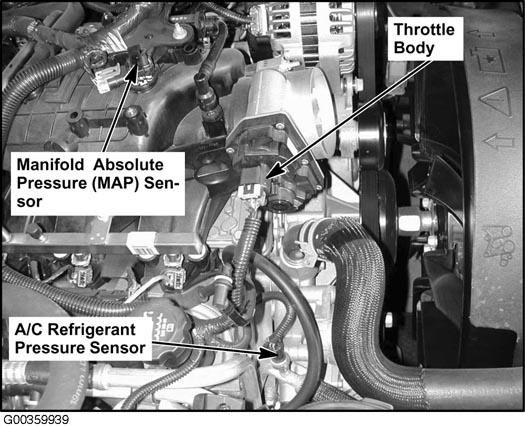

Fig 20: Right Front Of Engine Compartment (5.3L)

G00359939

Courtesy of ISUZU MOTOR CO.

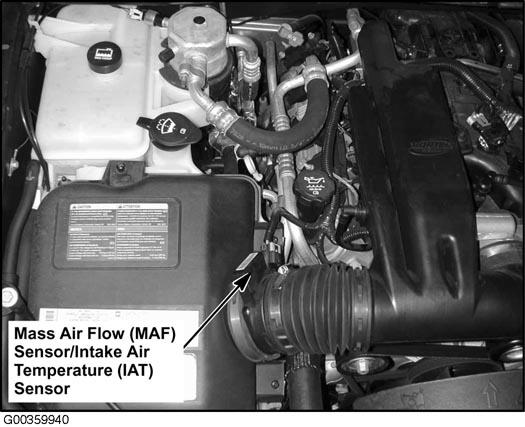

Fig 21: Top Of Engine (5.3L)

G00359940

Courtesy of ISUZU MOTOR CO.

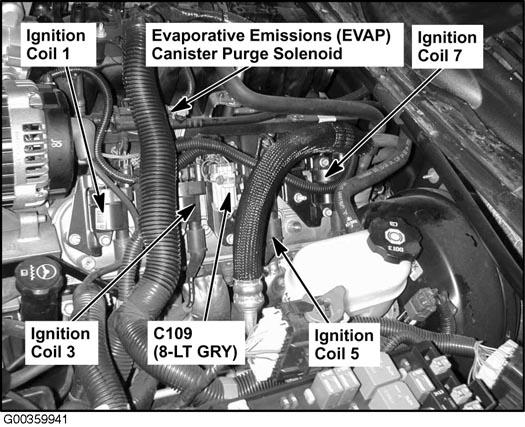

Fig 22: Top Left Side Of Engine (5.3L)

G00359941

Courtesy of ISUZU MOTOR CO.

Fig 23: Left Front Of Engine (5.3L)

G00288922

Courtesy of ISUZU MOTOR CO.

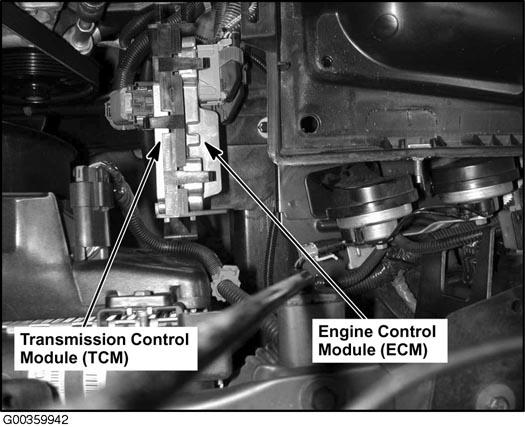

Fig 24: Left Front Of Engine Compartment (5.3L)

G00359942

Courtesy of ISUZU MOTOR CO.

Fig 25: Left Side Of Engine (4.2L)

G00288924

Courtesy of ISUZU MOTOR CO.

Fig 26: Left Side Of Engine (4.2L)

G00288925

Courtesy of ISUZU MOTOR CO.

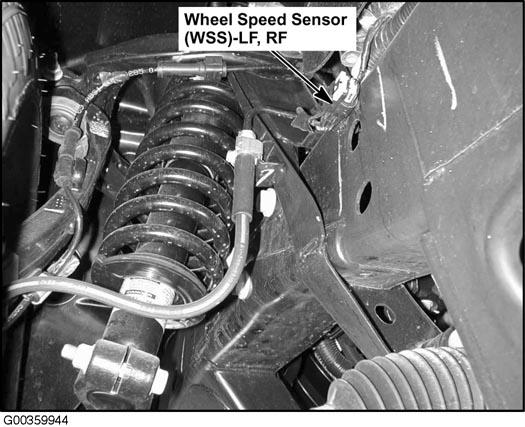

Fig 27: Left Front Wheel Housing (Right Similar)

G00359944

Courtesy of ISUZU MOTOR CO.

Fig 28: Right Front Of Engine (5.3L)

G00288929

Courtesy of ISUZU MOTOR CO.

Fig 29: Bottom Left Front Of Engine (4.2L)

G00288930

Courtesy of ISUZU MOTOR CO.

Fig 30: Bottom Right Front Of Engine (4.2L)

G00288931

Courtesy of ISUZU MOTOR CO.

Fig 31: Left Front Wheel Well (Near Upper Control Arm)

G00288932

Courtesy of ISUZU MOTOR CO.

Fig 32: Outside Of Left Frame Rail (Near EBCM)

G00288933

Courtesy of ISUZU MOTOR CO.

Fig 33: Outside Of Left Frame Rail (Near Fuel Tank)

G00288934

Courtesy of ISUZU MOTOR CO.

Fig 34: Lower Left Side Of Engine (4.2L)

G00288935

Courtesy of ISUZU MOTOR CO.

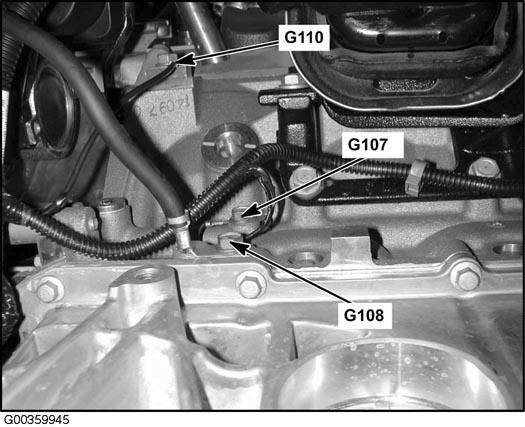

Fig 35: Lower Left Side Of Engine (5.3L)

G00359945

Courtesy of ISUZU MOTOR CO.

Fig 36: Lower Right Front Of Engine (On Oil Pan)

G00288937

Courtesy of ISUZU MOTOR CO.

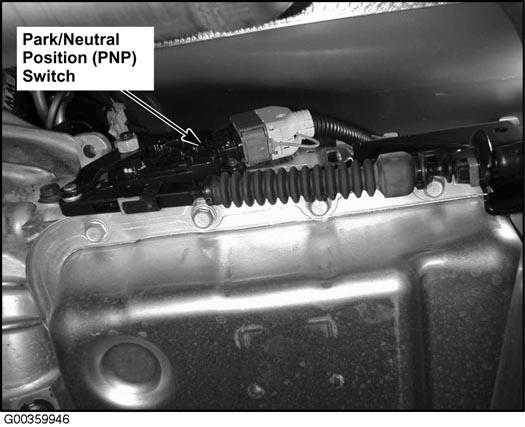

Fig 37: Left Side Of Transmission

G00359946

Courtesy of ISUZU MOTOR CO.

Fig 38: Inner Left Side Of Frame Rail (Near Transmission)

G00288939

Courtesy of ISUZU MOTOR CO.

Fig 39: Right Rear Of Transmission (2WD)

G00288940

Courtesy of ISUZU MOTOR CO.

Fig 40: Right Rear Of Transfer Case

G00288941

Courtesy of ISUZU MOTOR CO.

Fig 41: Left Rear Of Transfer Case

G00288942

Courtesy of ISUZU MOTOR CO.

Fig 42: Right Side Of Transmission

G00288943

Courtesy of ISUZU MOTOR CO.

Fig 43: Right Exhaust Downpipe (5.3L)

G00288944

Courtesy of ISUZU MOTOR CO.

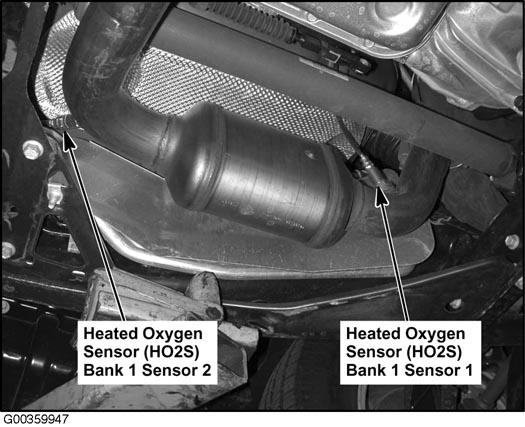

Fig 44: Left Exhaust Downpipe (5.3L)

G00359947

Courtesy of ISUZU MOTOR CO.

Fig 45: Right Rear Of Engine (5.3L)

G00288946

Courtesy of ISUZU MOTOR CO.

Fig 46: Underhood Fuse Block (Cover Removed)

G00288947

Courtesy of ISUZU MOTOR CO.

Fig 47: Underhood Fuse Block (Cover Removed)

G00288948

Courtesy of ISUZU MOTOR CO.

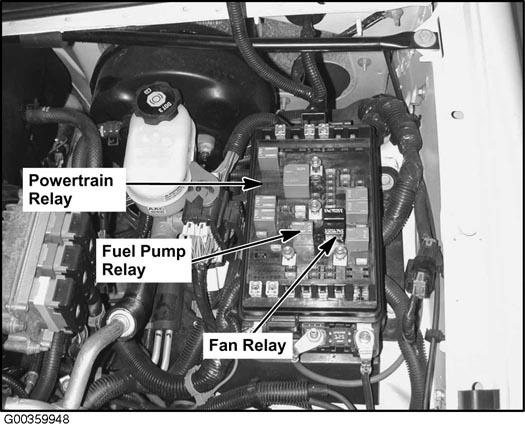

Fig 48: Underhood Fuse Block (Cover Removed)

G00359948

Courtesy of ISUZU MOTOR CO.

Fig 49: Under Left Rear Seat

G00288950

Courtesy of ISUZU MOTOR CO.

Fig 50: Rear Fuse Block (Cover Removed)

G00288951

Courtesy of ISUZU MOTOR CO.

Fig 51: Rear Fuse Block (Cover Removed)

G00288952

Courtesy of ISUZU MOTOR CO.

Fig 52: Rear Fuse Block (Cover Removed)

G00288953

Courtesy of ISUZU MOTOR CO.

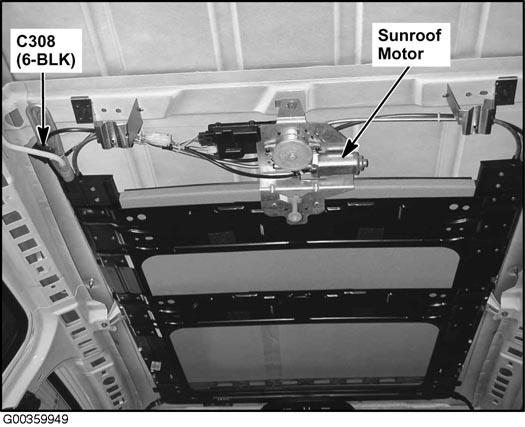

Fig 53: Middle Of Roof (Headliner Removed)

G00359949

Courtesy of ISUZU MOTOR CO.

Fig 54: Below Left Side Of Instrument Panel

G00288955

Courtesy of ISUZU MOTOR CO.

Fig 55: Below Left Side Of Instrument Panel

G00288956

Courtesy of ISUZU MOTOR CO.

Fig 56: Below Left Side Of Instrument Panel

G00288958

Courtesy of ISUZU MOTOR CO.

Fig 57: In Lower Console

G00288960

Courtesy of ISUZU MOTOR CO.

Fig 58: Below Left Side Of Instrument Panel

G00288961

Courtesy of ISUZU MOTOR CO.

Fig 59: Below Left Side Of Instrument Panel

G00288962

Courtesy of ISUZU MOTOR CO.

Fig 60: Under Right Rear Seat

G00288963

Courtesy of ISUZU MOTOR CO.

Fig 61: Bottom Of Steering Column

G00288964

Courtesy of ISUZU MOTOR CO.

Fig 62: Right Side Of Steering Column

G00288965

Courtesy of ISUZU MOTOR CO.

Fig 63: Center Of Steering Wheel

G00288966

Courtesy of ISUZU MOTOR CO.

Fig 64: Upper Center Of Instrument Panel

G00288974

Courtesy of ISUZU MOTOR CO.

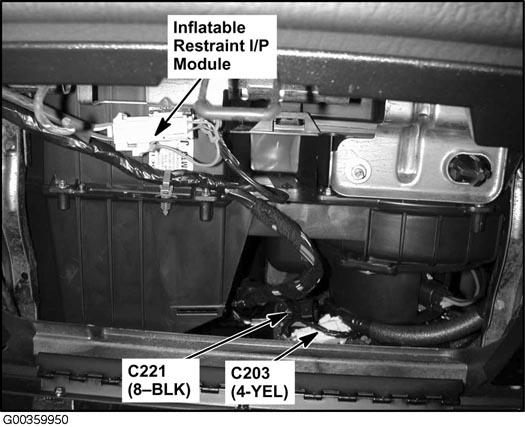

Fig 65: Behind Glove Box

G00359950

Courtesy of ISUZU MOTOR CO.

Fig 66: Right Center Of Instrument Panel

G00288976

Courtesy of ISUZU MOTOR CO.

Fig 67: Lower Right Side Of Instrument Panel

G00288977

Courtesy of ISUZU MOTOR CO.

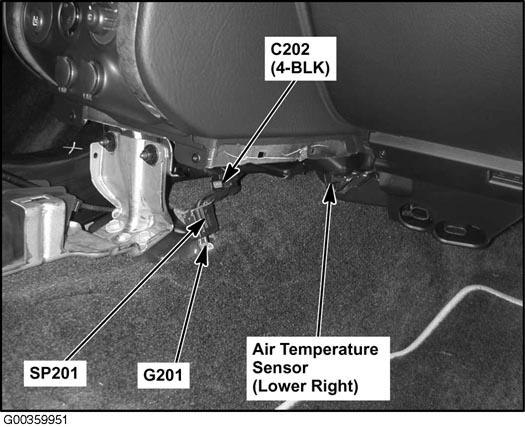

Fig 68: Lower Right Center Of Instrument Panel

G00359951

Courtesy of ISUZU MOTOR CO.

Fig 69: Lower Left Center Of Instrument Panel

G00288979

Courtesy of ISUZU MOTOR CO.

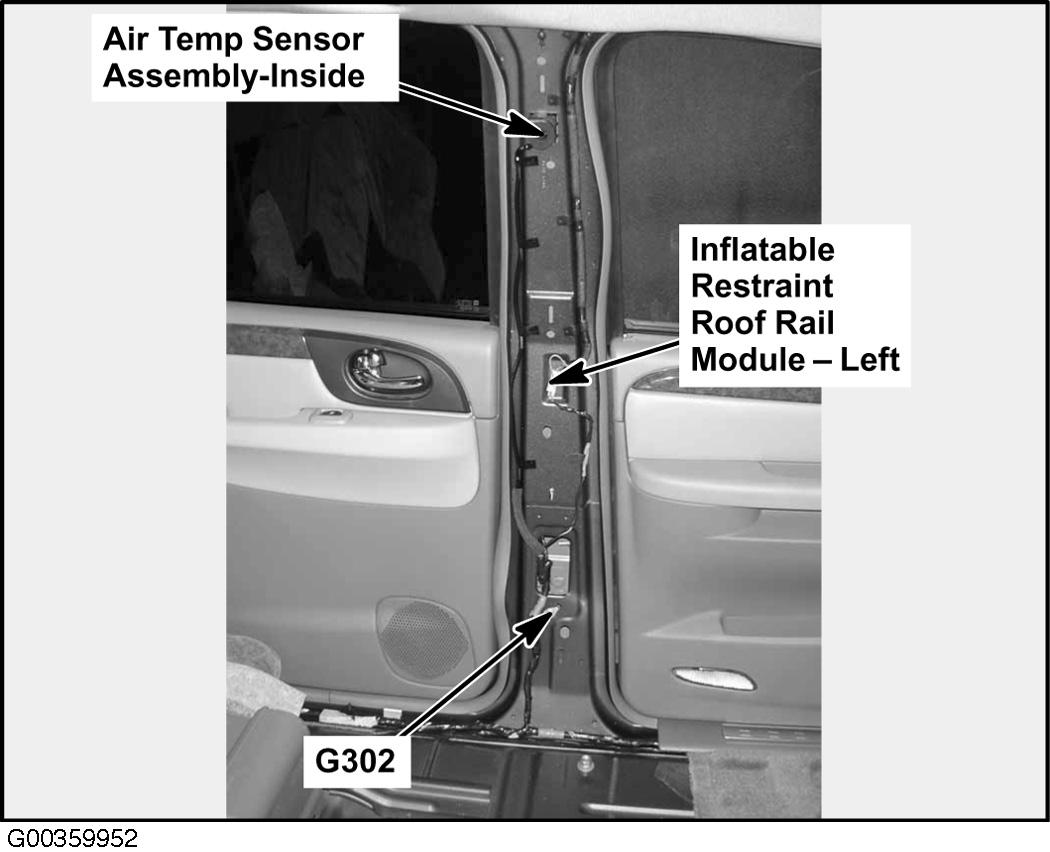

Fig 70: Left "B" Pillar

G00359952

Courtesy of ISUZU MOTOR CO.

Fig 71: Left Center Of Instrument Panel

G00288981

Courtesy of ISUZU MOTOR CO.

Fig 72: Rear Of Lower Console

G00288982

Courtesy of ISUZU MOTOR CO.

Fig 73: Under Rear Of Lower Console

G00288984

Courtesy of ISUZU MOTOR CO.

Fig 74: Under Lower Console

G00288985

Courtesy of ISUZU MOTOR CO.

Fig 75: Center Of Upper Instrument Panel

G00288987

Courtesy of ISUZU MOTOR CO.

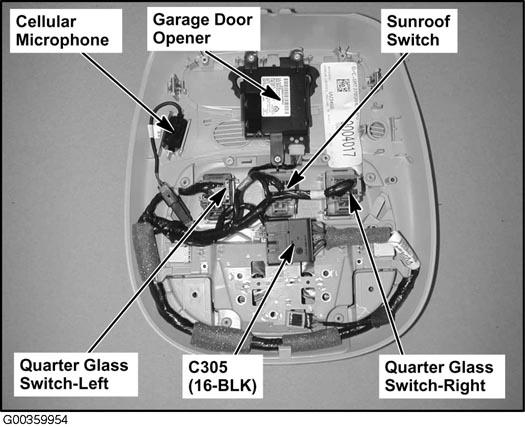

Fig 76: Upper Console

G00359954

Courtesy of ISUZU MOTOR CO.

Fig 77: Left Front Door Jamb (Right Similar)

G00288991

Courtesy of ISUZU MOTOR CO.

Fig 78: Left Rear Door Jamb (Right Similar)

G00288992

Courtesy of ISUZU MOTOR CO.

Fig 79: Driver Door Switch Panel

G00288993

Courtesy of ISUZU MOTOR CO.

Fig 80: Passenger Door Switch Panel

G00288994

Courtesy of ISUZU MOTOR CO.

Fig 81: Left Front Door (Right Similar)

G00288995

Courtesy of ISUZU MOTOR CO.

Fig 82: Left Rear Door (Right Similar)

G00288996

Courtesy of ISUZU MOTOR CO.

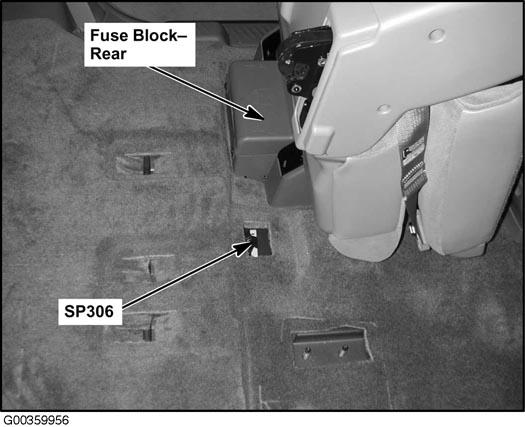

Fig 83: Under Right Rear Seat (Carpet Removed)

G00359956

Courtesy of ISUZU MOTOR CO.

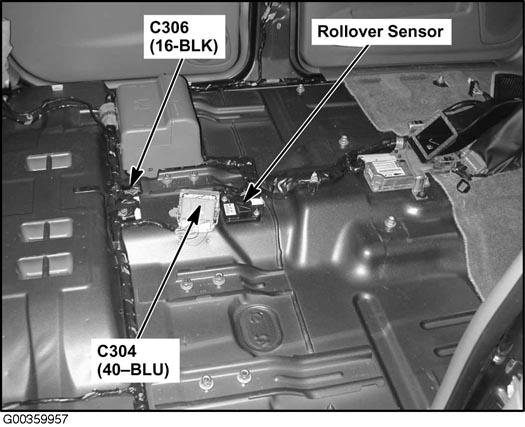

Fig 84: Under Left Rear Seat (Carpet Removed)

G00359957

Courtesy of ISUZU MOTOR CO.

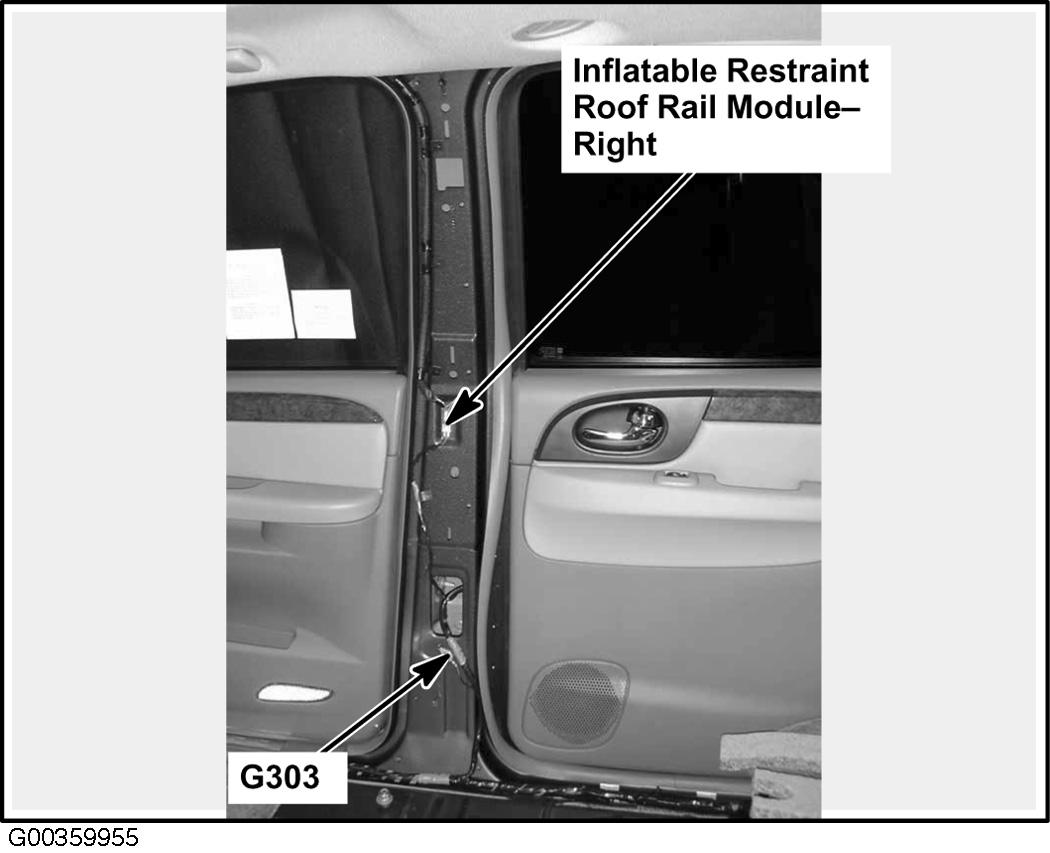

Fig 85: Left "B" Pillar

G00359955

Courtesy of ISUZU MOTOR CO.

Fig 86: Left Rear Frame Rail

G00289004

Courtesy of ISUZU MOTOR CO.

Fig 87: Center Of Roof Liftgate

G00289005

Courtesy of ISUZU MOTOR CO.

Fig 88: Left Quarter Panel

G00289006

Courtesy of ISUZU MOTOR CO.

Fig 89: Left Quarter Panel

G00289007

Courtesy of ISUZU MOTOR CO.

Fig 90: Left Quarter Panel

G00289008

Courtesy of ISUZU MOTOR CO.

Fig 91: Right Quarter Panel

G00289009

Courtesy of ISUZU MOTOR CO.

Fig 92: On Liftgate (Panel Removed)

G00289011

Courtesy of ISUZU MOTOR CO.

Fig 93: On Liftgate (Panel Removed)

G00289012

Courtesy of ISUZU MOTOR CO.

Fig 94: Rear Of Fuel Tank

G00289013

Courtesy of ISUZU MOTOR CO.

Fig 95: Under Rear Bumper

G00289014

Courtesy of ISUZU MOTOR CO.

Fig 96: Under Driver's Seat

G00289016

Courtesy of ISUZU MOTOR CO.

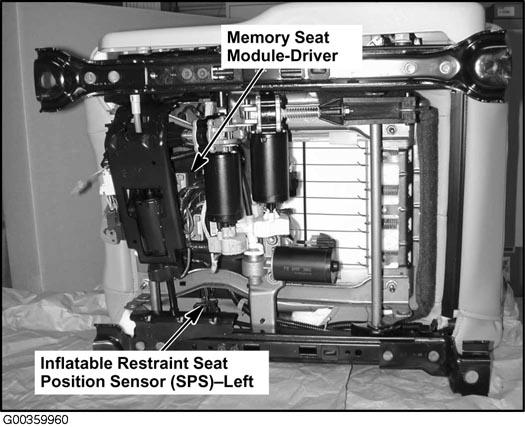

Fig 97: Under Driver's Seat

G00359960

Courtesy of ISUZU MOTOR CO.

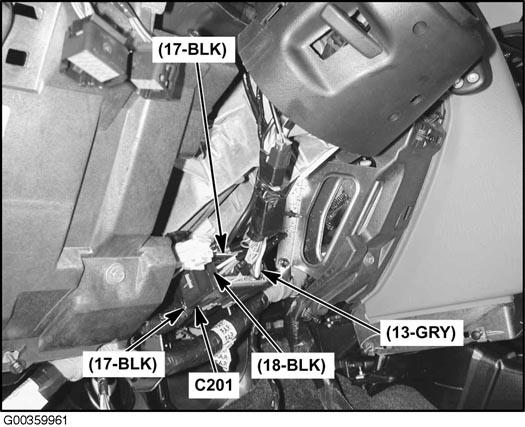

Fig 98: Under Steering Column

G00359961

Courtesy of ISUZU MOTOR CO.

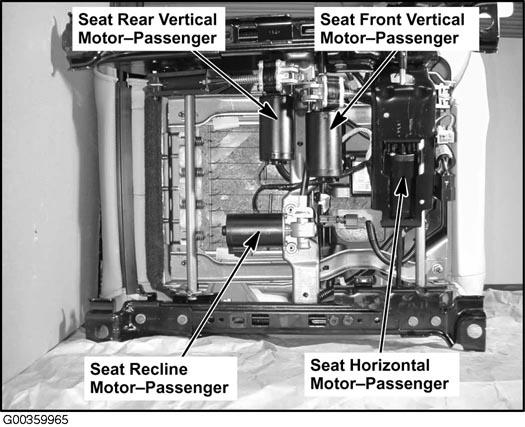

Fig 99: Under Front Passenger's Seat

G00359965

Courtesy of ISUZU MOTOR CO.

Fig 100: Lower Right Side Of Instrument Panel

G00289021

Courtesy of ISUZU MOTOR CO.

Fig 101: Rear Of Lower Console (W/Manual A/C)

G00289022

Courtesy of ISUZU MOTOR CO.

Fig 102: Below Left Side Of Instrument Panel

G00289023

Courtesy of ISUZU MOTOR CO.

Fig 103: Below Left Side Of Instrument Panel

G00289024

Courtesy of ISUZU MOTOR CO.

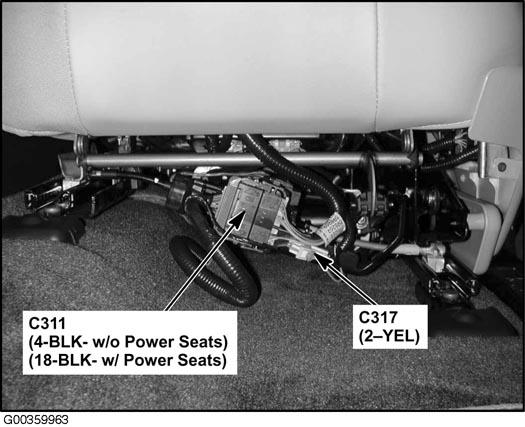

Fig 104: Under Front Of Driver's Seat

G00359963

Courtesy of ISUZU MOTOR CO.

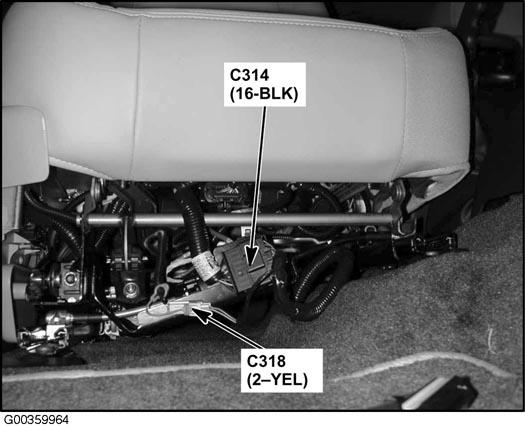

Fig 105: Under Front Of Passenger's Seat

G00359964

Courtesy of ISUZU MOTOR CO.

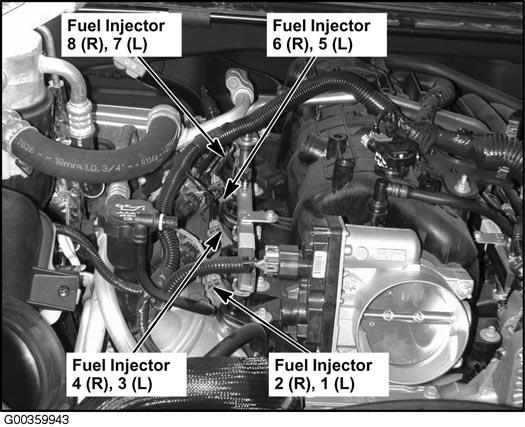

Fig 106: Right Side Of Engine (5.3L)

G00359943

Courtesy of ISUZU MOTOR CO.

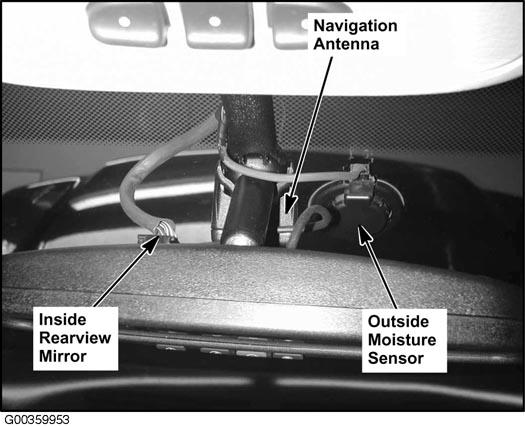

Fig 107: Center Of Windshield

G00359953

Courtesy of ISUZU MOTOR CO.

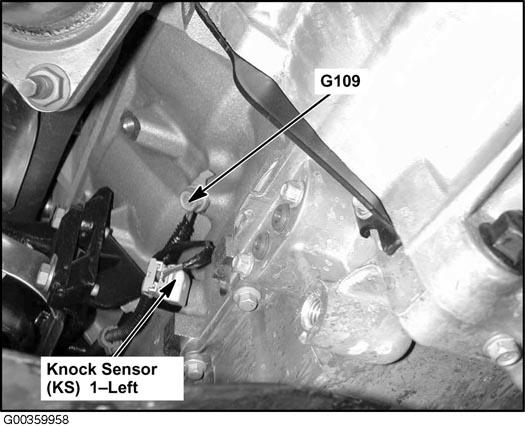

Fig 108: Left Side Of Engine (5.3L)

G00359958

Courtesy of ISUZU MOTOR CO.

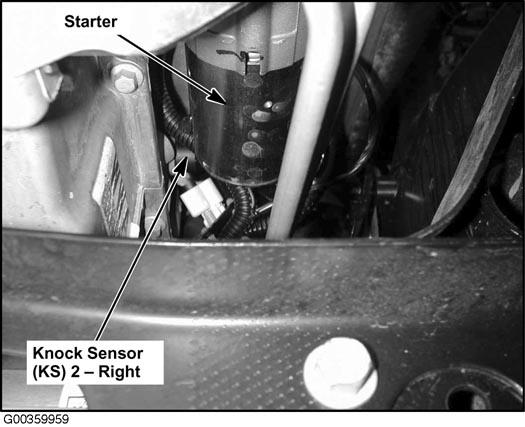

Fig 109: Right Side Of Engine (5.3L)

G00359959

Courtesy of ISUZU MOTOR CO.

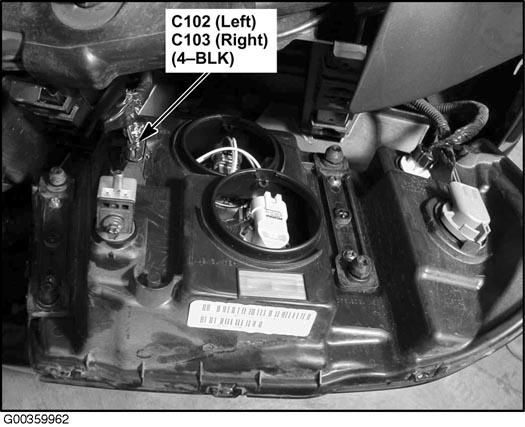

Fig 110: Behind Left Headlight (Right Similar)

G00359962

Courtesy of ISUZU MOTOR CO.

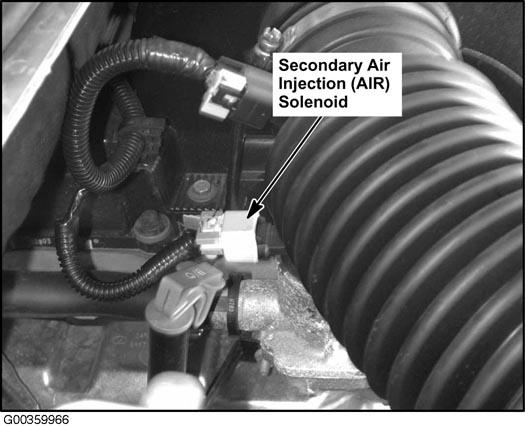

Fig 111: Right Rear Of Engine Compartment

G00359966

Courtesy of ISUZU MOTOR CO.

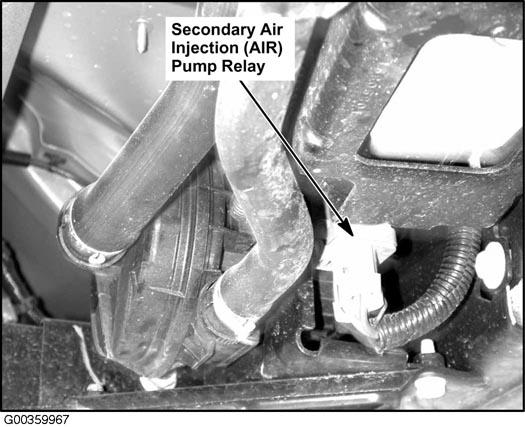

Fig 112: Left Frame Rail, Near EBCM

G00359967

Courtesy of ISUZU MOTOR CO.

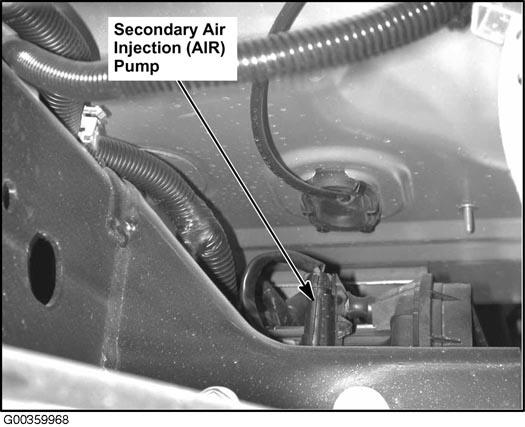

Fig 113: Left Frame Rail, Near EBCM

G00359968

Courtesy of ISUZU MOTOR CO.

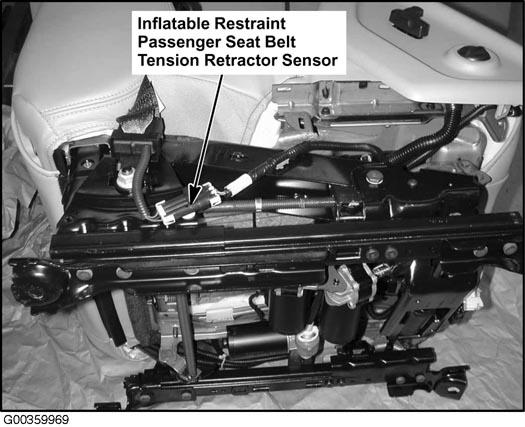

Fig 114: Right Side Of Passenger's Seat

G00359969

Courtesy of ISUZU MOTOR CO.

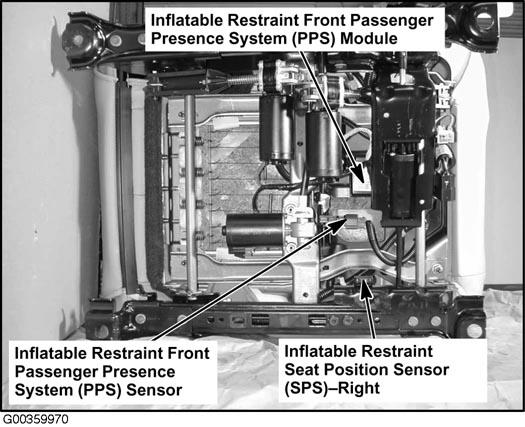

Fig 115: Under Front Passenger's Seat

G00359970
