Wheel Alignment Specifications

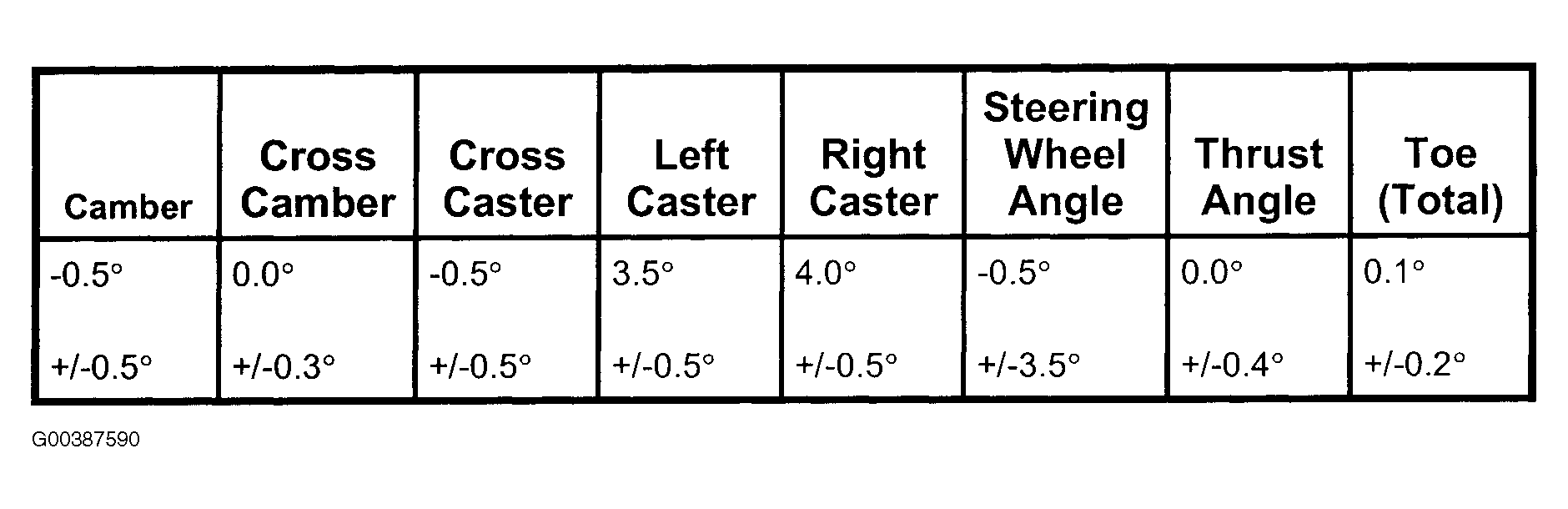

Fig 1: Wheel Alignment Specifications

G00387590

Courtesy of ISUZU MOTOR CO.
