Power Door Systems Connectors

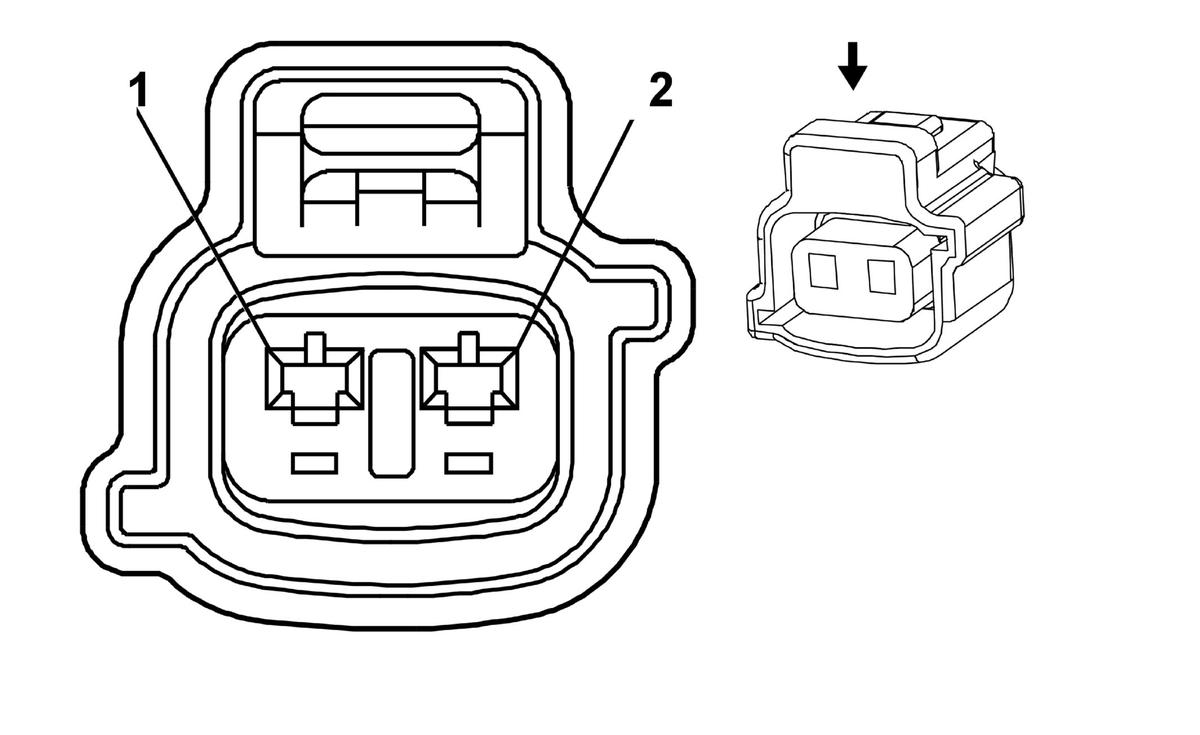

Door Lock Actuator - Driver w/AU3

GM1336230Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15383439
  • 2-Way F 090 II Sealed (WH)
Pin Wire Color Circuit No. Function
1 TN 694 Door Lock Actuator Unlock Control
2 GY 295 Door Lock Actuator Lock Control
Door Lock Actuator - Front Passenger w/AU3

GM1336230Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15383439
  • 2-Way F 090 II Sealed (WH)
Pin Wire Color Circuit No. Function
1 TN 294 Door Lock Actuator Unlock Control
2 GY 295 Door Lock Actuator Lock Control
Door Lock Actuator - LR (Crew Cab) w/AU3

GM1336230Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15383439
  • 2-Way F 090 II Sealed (WH)
Pin Wire Color Circuit No. Function
1 TN 294 Door Lock Actuator Unlock Control
2 GY 295 Door Lock Actuator Lock Control
Door Lock Actuator - RR (Crew Cab) w/AU3

GM1336230Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15383439
  • 2-Way F 090 II Sealed (WH)
Pin Wire Color Circuit No. Function
1 TN 294 Door Lock Actuator Unlock Control
2 GY 295 Door Lock Actuator Lock Control
Door Lock and Window Switch - Driver C1 w/A31 or AU3

GM1335541Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12105465
  • 8-Way F 090 II (WH)
Pin Wire Color Circuit No. Function
1 OG 1240 Battery Positive Voltage
2 TN 694 Driver Door Lock Actuator Unlock Control
3 BK 850 Ground
4 GY 295 Door Lock Actuator Lock Control
5 TN 294 Door Lock Actuator Unlock Control
6 YE 443 Accessory Voltage
7 D-BU 164 Power Window Motor Left Front Up Control
8 BN 165 Power Window Motor Left Front Down Control
Door Lock and Window Switch - Driver C2 w/A31 or AU3

GM1336194Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15380363
  • 14-Way F 040 III (WH)
Pin Wire Color Circuit No. Function
1 D-BU 1307 Power Window Master Switch Lockout Signal
2 BN 9 Park Lamp Supply Voltage
3 - - Not Used
4 PU 171 Power Window Master Switch Right Rear Down Signal
5 L-GN 170 Power Window Master Switch Right Rear Up Signal
6 D-BU 245 Passenger Door Lock Switch Unlock Control
7 L-BU 244 Passenger Door Lock Switch Lock Control
8 L-BU 166 Power Window Master Switch Right Front Up Signal
9 TN 167 Power Window Master Switch Right Front Down Signal
10 - - Not Used
11 YE 1187 Power Window Master Switch Left Rear Down Signal
12 D-GN 168 Power Window Master Switch Left Rear Up Signal
13 WH 194 Door Unlock Control
14 - - Not Used
Door Lock and Window Switch - Front Passenger w/A31 or AU3

GM1336245Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15383359
  • 12-Way F 090 II (WH)
Pin Wire Color Circuit No. Function
1-2 - - Not Used
3 D-BU 245 Passenger Door Lock Switch Unlock Control
4 L-BU 244 Passenger Door Lock Switch Lock Control
5 BK 2050 Ground
6 BN 9 Park Lamp Supply Voltage
7 D-BU 1307 Power Window Master Switch Lockout Signal
8 TN 167 Power Window Master Switch Right Front Down Signal
9 L-BU 166 Power Window Master Switch Right Front Up Signal
10 BN 667 Power Window Motor Right Front Down Control
11 YE 443 Accessory Voltage
12 D-BU 666 Power Window Motor Right Front Up Control
Window Switch - LR (Crew Cab) w/A31

GM1335541Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12105465
  • 8-Way F 090 II (WH)
Pin Wire Color Circuit No. Function
1 D-GN 168 Power Window Master Switch Left Rear Up Signal
2 BN 9 Park Lamp Supply Voltage
3 BK 850 Ground
4 YE 1187 Power Window Master Switch Left Rear Down Signal
5 D-BU 1307 Power Window Master Switch Lockout Signal
6 YE 443 Accessory Voltage
7 BN 669 Power Window Motor Left Rear Down Control
8 D-BU 668 Power Window Motor Left Rear Up Control
Window Switch - RR (Crew Cab) w/A31

GM1335541Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12105465
  • 8-Way F 090 II (WH)
Pin Wire Color Circuit No. Function
1 D-GN 168 Power Window Master Switch Left Rear Up Signal
2 BN 9 Park Lamp Supply Voltage
3 BK 850 Ground
4 YE 1187 Power Window Master Switch Left Rear Down Signal
5 D-BU 1307 Power Window Master Switch Lockout Signal
6 YE 443 Accessory Voltage
7 BN 669 Power Window Motor Left Rear Down Control
8 D-BU 668 Power Window Motor Left Rear Up Control
Outside Rearview Mirror - Driver w/DE6

GM1336225Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15383150
  • 4-Way F 090 (WH)
Pin Wire Color Circuit No. Function
1 WH 81 Driver Mirror Motor Right Control
2 L-GN 1499 Driver Mirror Motor Left/Down Control
3 - - Not Used
4 YE 88 Driver Mirror Motor Up Control
Outside Rearview Mirror - Front Passenger w/DE6

GM1336225Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15383150
  • 4-Way F 090 (WH)
Pin Wire Color Circuit No. Function
1 RD/WH 881 Passenger Mirror Motor Right Control
2 L-BU/WH 1497 Passenger Mirror Motor Left/Down Control
3 - - Not Used
4 BN/WH 1498 Passenger Mirror Motor Up Control
Outside Rearview Mirror Switch w/DE6

GM1336193Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15365903
  • 10-Way F 050 050 (WH)
Pin Wire Color Circuit No. Function
1 L-BU/WH 1497 Passenger Mirror Motor Left/Down Control
2 BN/WH 1498 Passenger Mirror Motor Up Control
3 YE 88 Driver Mirror Motor Up Control
4 OG 1732 Courtesy Lamps Supply Voltage
5 BN 9 Park Lamp Supply Voltage
6 BK 850 Ground
7 L-GN 1499 Driver Mirror Motor Left/Down Control
8 BK 850 Ground
9 WH 81 Driver Mirror Motor Right Control
10 RD/WH 881 Passenger Mirror Motor Right Control
Window Motor - Driver w/A31

GM1336232Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15398861
  • 2-Way F 062 Sealed (BN)
Pin Wire Color Circuit No. Function
1 BN 165 Power Window Motor Left Front Down Control
2 D-BU 164 Power Window Motor Left Front Up Control
Window Motor - Front Passenger w/A31

GM1336232Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15398861
  • 2-Way F 062 Sealed (BN)
Pin Wire Color Circuit No. Function
1 D-BU 666 Power Window Motor Right Front Up Control
2 BN 667 Power Window Motor Right Front Down Control
Window Motor - LR (Crew Cab) w/A31

GM1336232Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15398861
  • 2-Way F 062 Sealed (BN)
Pin Wire Color Circuit No. Function
1 BN 669 Power Window Motor Left Rear Down Control
2 D-BU 668 Power Window Motor Left Rear Up Control
Window Motor - RR (Crew Cab) w/A31

GM1336232Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15398861
  • 2-Way F 062 Sealed (BN)
Pin Wire Color Circuit No. Function
1 BN 669 Power Window Motor Right Rear Down Control
2 D-BU 668 Power Window Motor Right Rear Up Control
