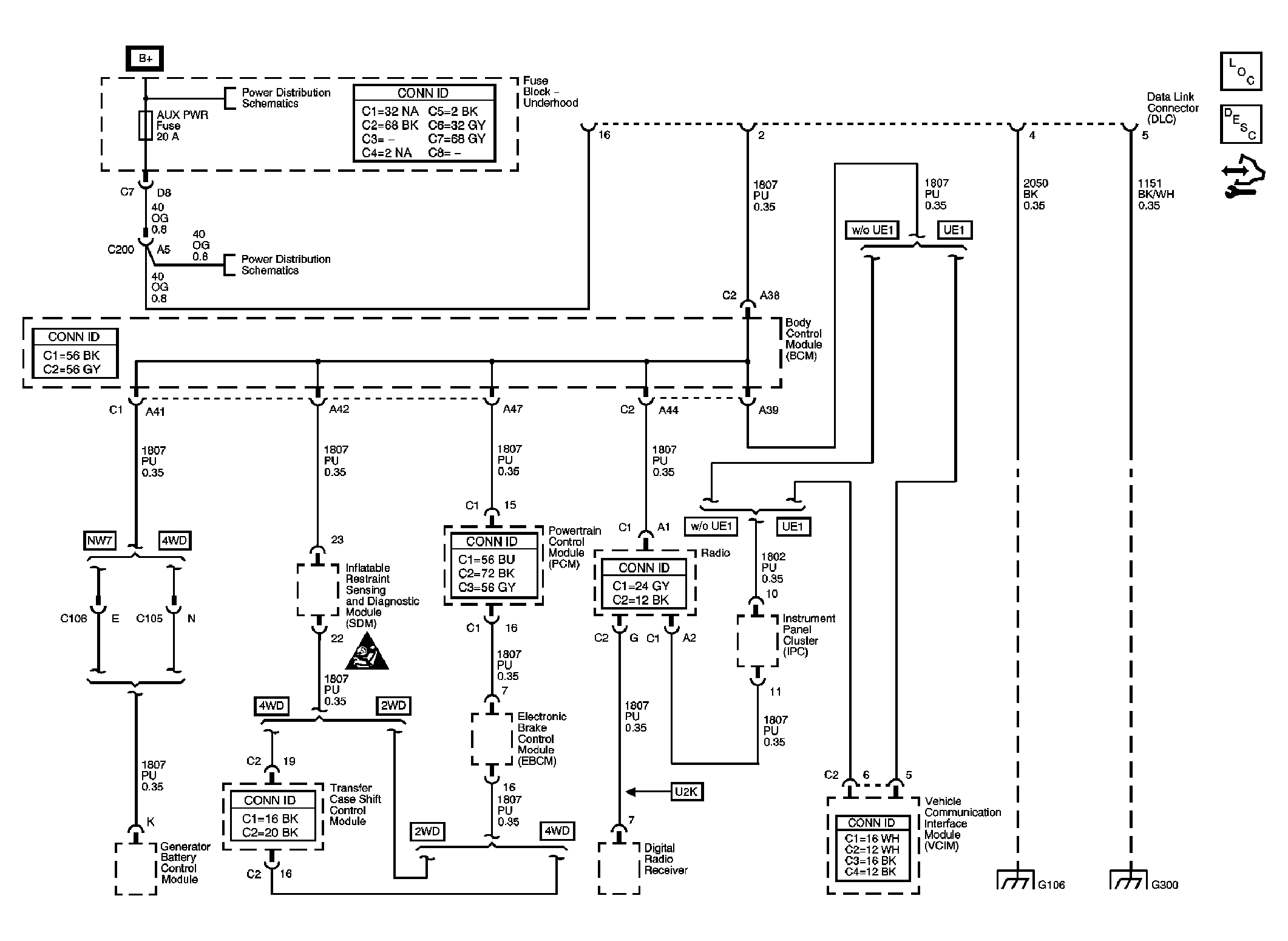

Data Communication Schematics

WARNING: This page is about a different car, the 2007 Isuzu i-370, 2007 Isuzu i-290, 2007 GMC Canyon, and 2007 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.
