SIR Component Views

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Left Side of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G101
2	Front Fascia
3	Inflatable Restraint Front End Discriminating Sensor - Left
4	Inflatable Restraint Front End Discriminating Sensor - Right
5	Lower Front Tie Bar

Fig 2: Steering Column Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Traction Control Switch (AQ9)
3	Ignition Lock Cylinder Solenoid (AQ9)
4	Ignition Key Alarm Switch
5	Theft Deterrent Module (TDM)
6	Ignition Switch
7	Inflatable Restraint Steering Wheel Module Coil
8	Steering Angle Sensor (JL4)
9	Telescoping Actuator (N37)
10	Tilt Actuator (N37)
11	Tilt/Telescope Switch (N37)

Fig 3: Headliner Components - Bottom

Callout	Component Name
1	Sunshade - Left Rear (DC5)
2	Rear Park Assist Indicator (UFR)
3	Courtesy Lamp - Right Rear (V4U)
4	Sunshade - Right Rear (DC5)
5	Garage Door Opener Transmitter (UG1)
6	Noise Compensation Microphone (UQA)
7	Courtesy Lamp - Right Front (V4U)
8	Sunshade - Right Front
9	Sunshade Switch (DE9)
10	Inflatable Restraint I/P Module Indicator
11	Inside Rearview Mirror (ISRVM)
12	Onstar Button Assembly (UE1)
13	Sunroof Switch (CF5)
14	Sunshade - Left Front (- V4U)
15	Courtesy Lamp - Left Front (V4U)
16	Cellular Microphone (UE1/U3Q/U3R/U3U)
17	Courtesy Lamp - Left Rear (V4U)

Fig 4: Passenger Seat

Callout	Component Name
1	Passenger Seat
2	Inflatable Restraint Passenger Seat Belt Tension Sensor (Part of Seat Buckle Assembly)
3	Inflatable Restraint Seat Position Sensor (SPS) - Right

Fig 5: Driver Seat Components

Callout	Component Name
1	Inflatable Restraint Side Impact Module - Left
2	Seat Back Ventilation Heat and Cool Module - Driver (KB6)
3	Seat Lumbar Motor - Driver (AL2)
4	Seat Recline Motor - Driver (AG1/A45)
5	Seat Lumbar Switch - Driver (AL2/A45)
6	Memory Seat Module (MSM) (A45/AM3/KB6)
7	Seat Cushion Ventilation Heat and Cool Module - Driver (KB6)
8	Seat Belt Switch - Left
9	Seat Rear Vertical Motor - Driver
10	Seat Rear Vertical Position Sensor - Driver (A45)
11	Seat Horizontal Motor - Driver
12	Seat Adjuster Motor Assembly - Driver (AG1/A45)
13	Seat Horizontal Position Sensor - Driver (A45)
14	Seat Front Vertical Position Sensor - Driver (A45)
15	Seat Adjuster Switch - Driver (AG1/A45)
16	Seat Lumbar Massage Switch - Driver (AM3)
17	Seat Lumbar Massage Motor - Driver (AM3)
18	Seat Recline Position Sensor - Driver (A45)

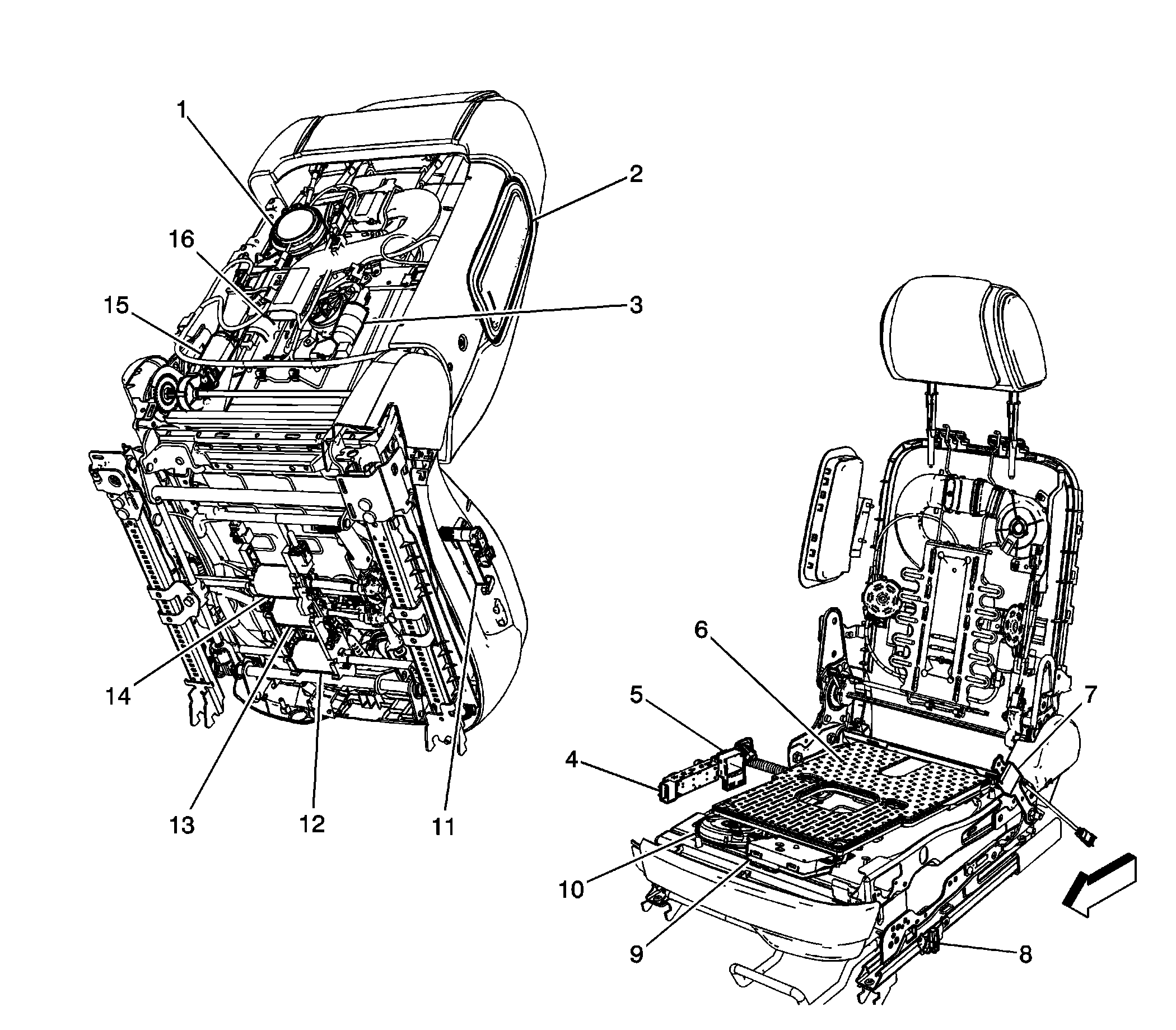

Fig 6: Passenger Seat Components

Callout	Component Name
1	Seat Back Ventillation Heat and Cool Module - Passenger (KB6)
2	Inflatable Restraint Side Impact Module - Right
3	Seat Lumbar Motor - Front Passenger (AL2)
4	Seat Adjuster Switch - Passenger (AG2)
5	Seat Lumbar Massage Switch - Front Passenger (AM3)
6	Inflatable Restraint Passenger Presence System (PPS) Sensor
7	Seat Belt Switch - Right
8	Inflatable Restraint Seat Position Sensor (SPS) - Right
9	Climate Control Seat Module - Front (KB6)
10	Seat Cushion Ventillation Heat and Cool Module - Front Passenger (KB6)
11	Inflatable Restraint Passenger Presence System (PPS) Sensor Connector
12	Seat Horizontal Motor - Passenger
13	Seat Front Vertical Motor - Passenger
14	Seat Rear Vertical Motor - Passenger
15	Seat Recline Motor - Front Passenger (AG2)
16	Seat Lumbar Massage Motor - Front Passenger

Fig 7: Air Bag Components - I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Steering Wheel Module
2	Inflatable Restraint I/P Module
3	Floor Pan

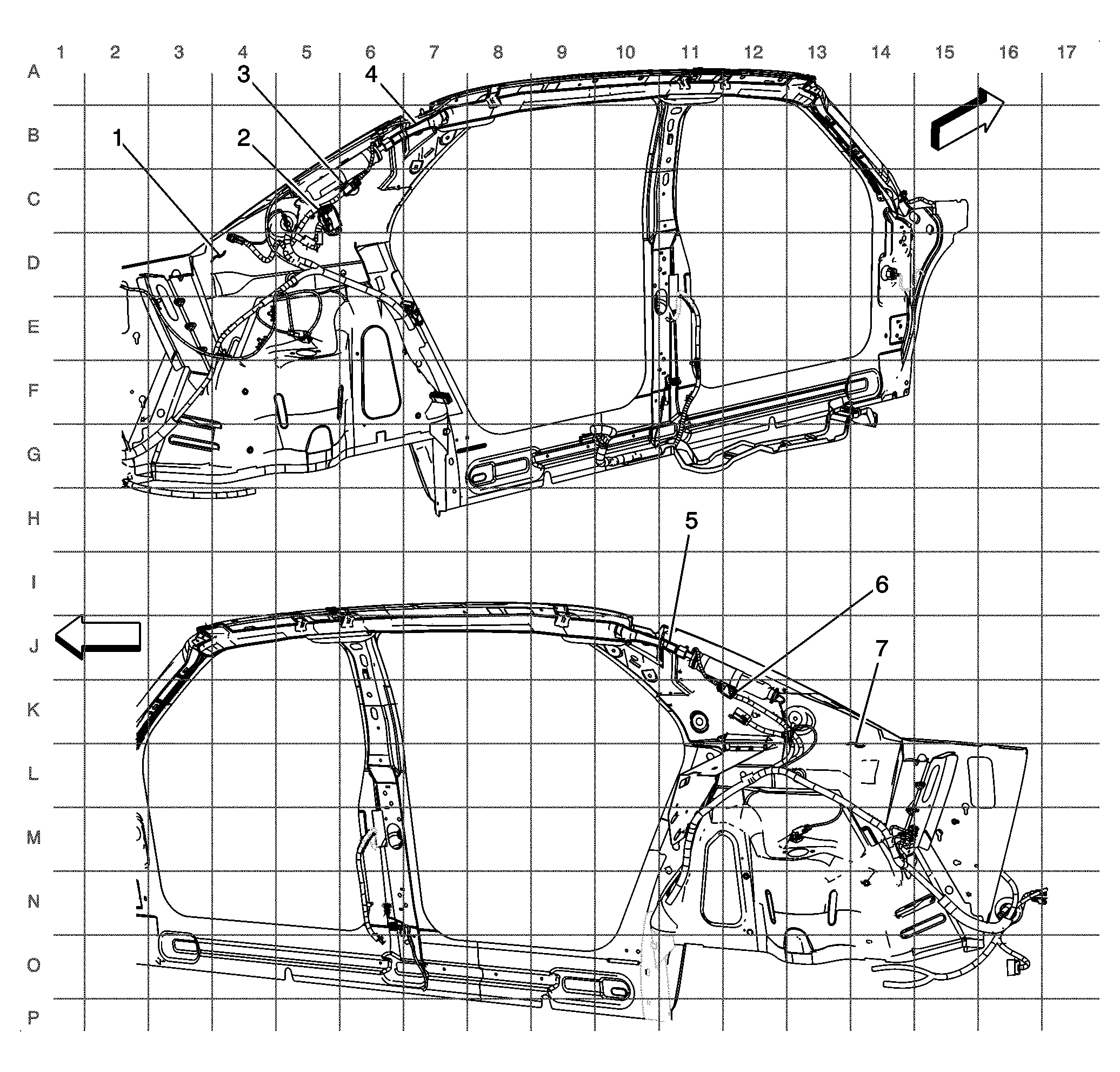

Fig 8: Driver Seat Area Components (Body Harness)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C315 Body Harness to Driver Seat Harness
2	G300
3	Inflatable Restraint Side Impact Module - Left Connector
4	G305
5	Yaw and Lateral Acceleration Sensor (JL4)
6	Inflatable Restraint Sensing and Diagnostic Module (SDM)
7	Inflatable Restraint Side Impact Sensor - Left
8	Seat Belt Pretensioner - LF
9	C-Pillar
10	Inflatable Restraint Roof Rail Module - Left (AY0)

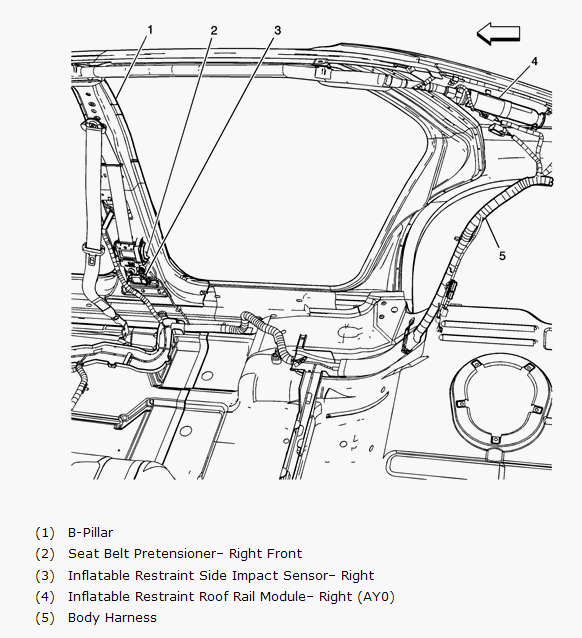

Fig 9: Passenger - RR Area

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C Pillar
2	Seat Belt Pretensioner - RF
3	Inflatable Restraint Side Impact Sensor - Right
4	Inflatable Restraint Roof Rail Module - Right
5	Body Harness

Fig 10: Left and Right C-Pillars

Callout	Component Name
1	Inner Frame-Left
2	C321
3	C304 (AYO)
4	Inflatable Restraint Roof Rail Module - Left (AY0)
5	Inflatable Restraint Roof Rail Module - Right
6	C305 (AYO)
7	Inner Frame-Right
