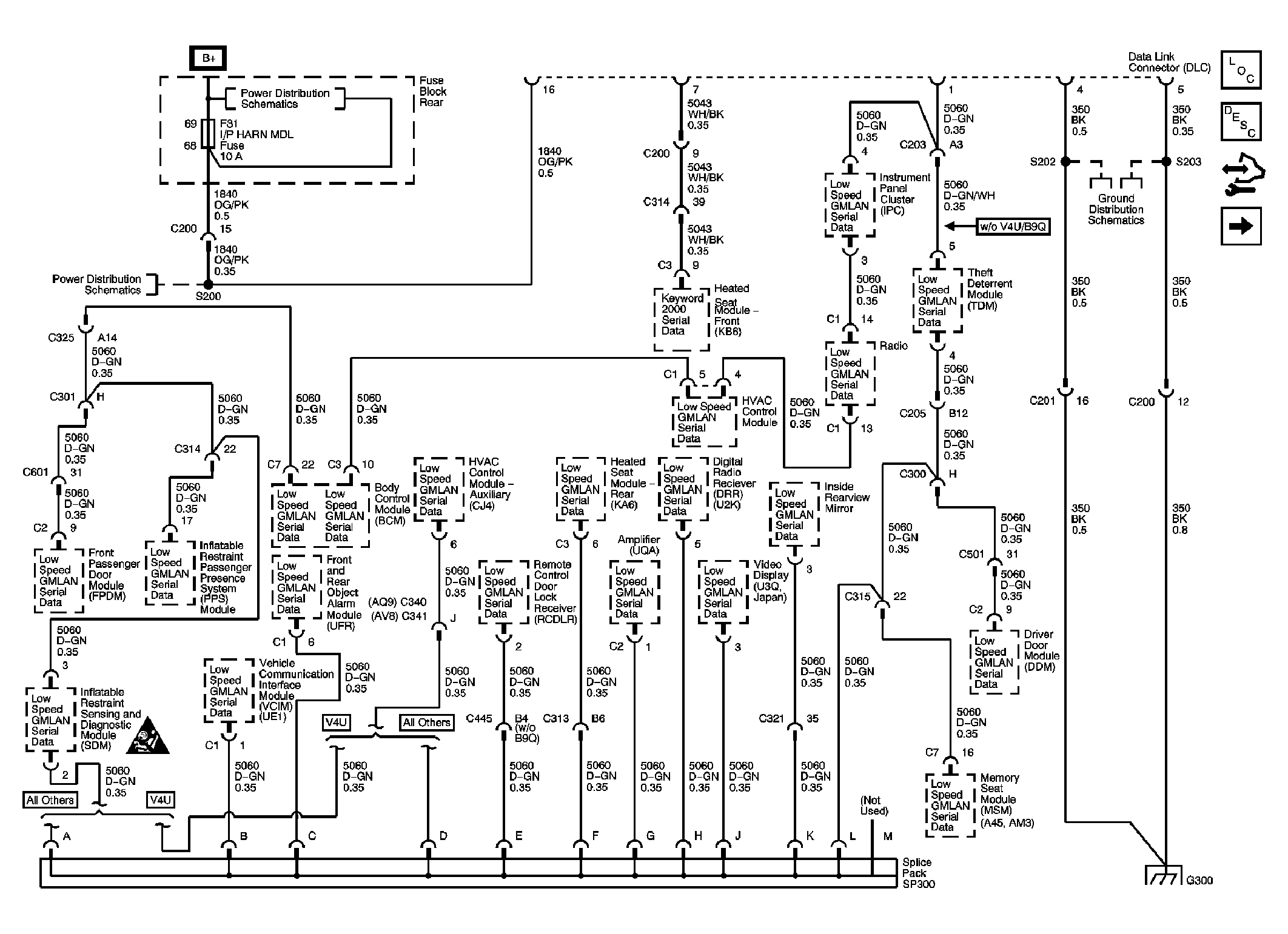

Fig 1: DLC Power Ground and Low Speed GMLAN Schematics
Courtesy of GENERAL MOTORS CORP.

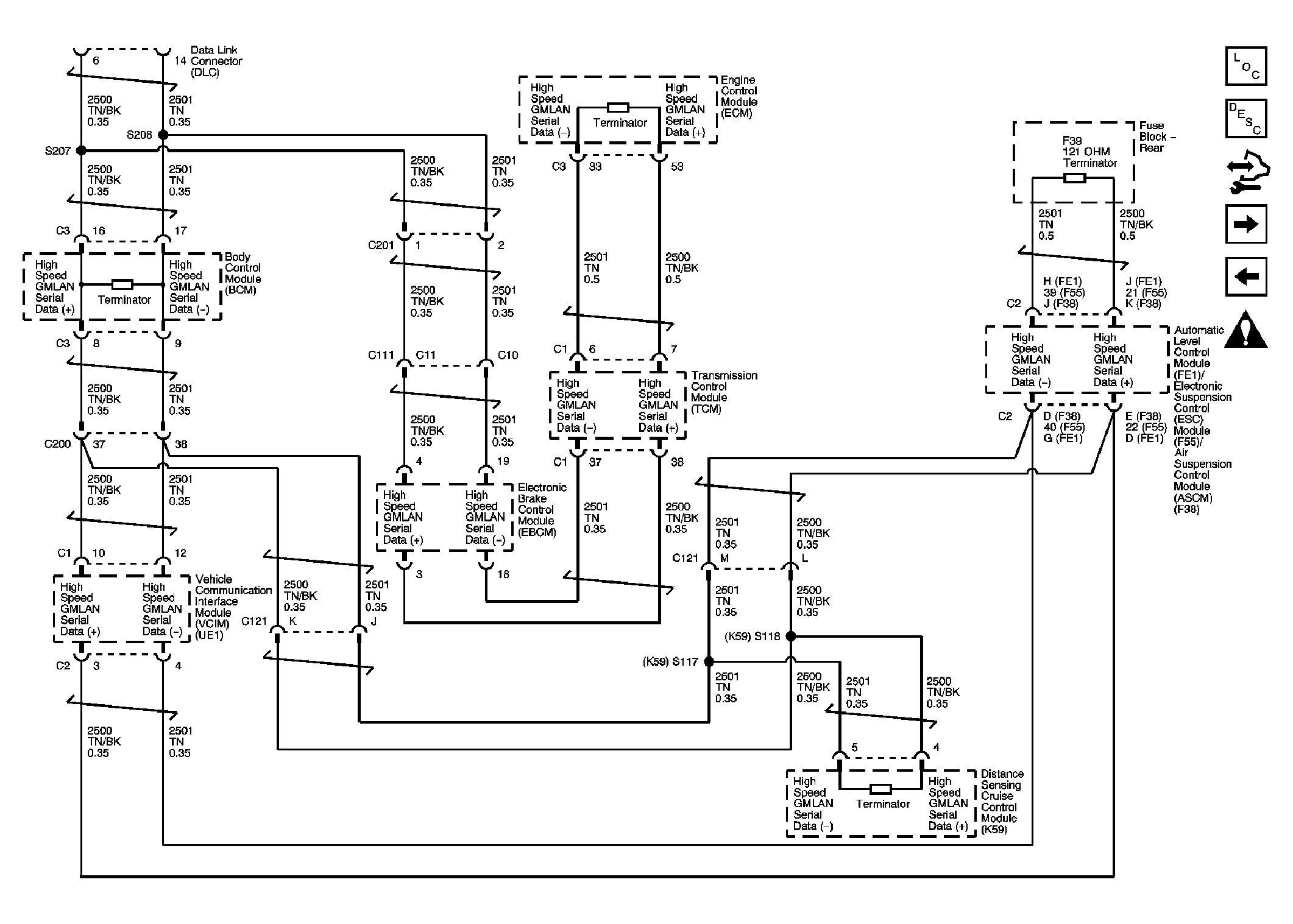

Fig 2: DLC High Speed Serial Data Schematics
Courtesy of GENERAL MOTORS CORP.

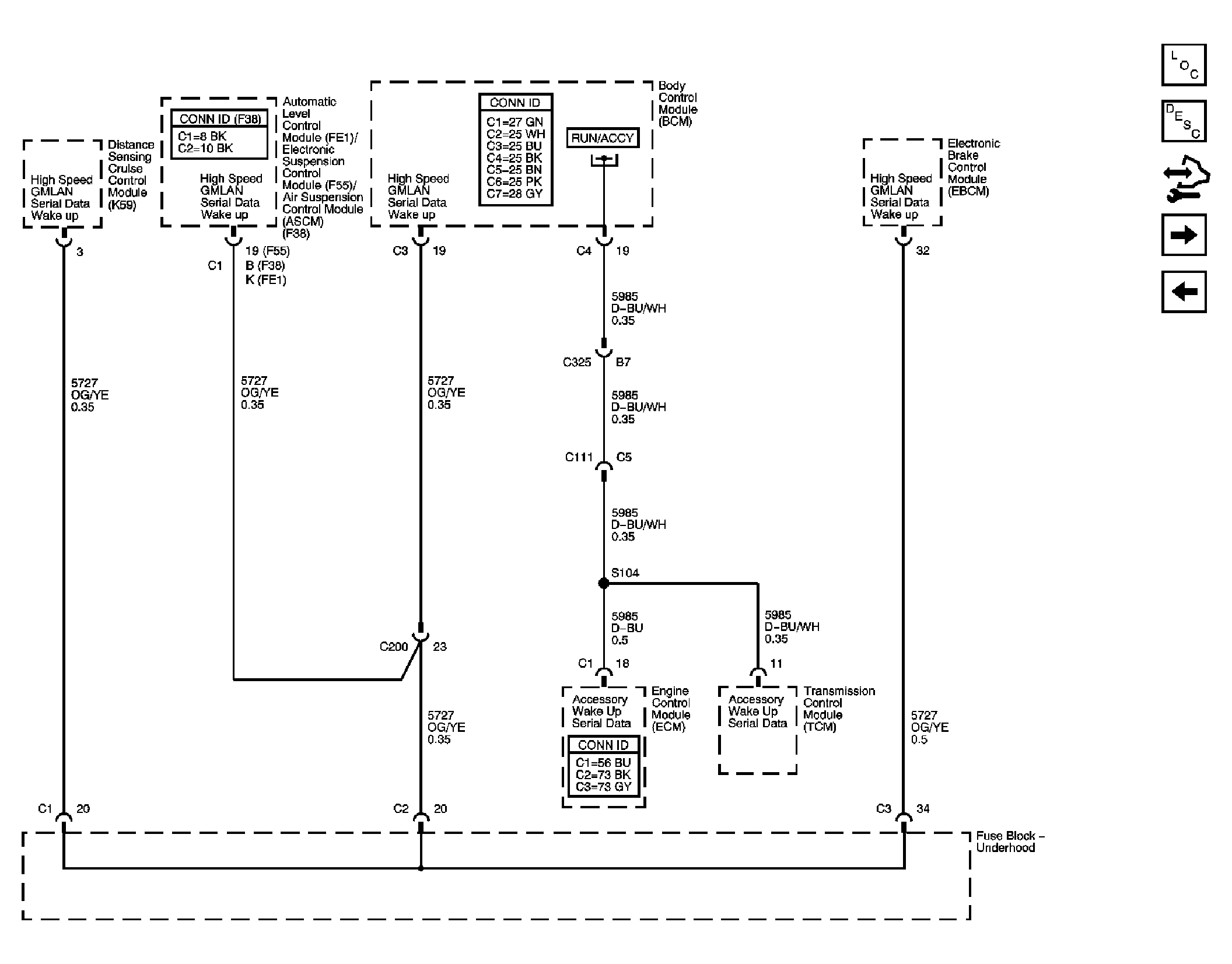

Fig 3: DLC High Speed Serial Data Wake Up Schematics
Courtesy of GENERAL MOTORS CORP.

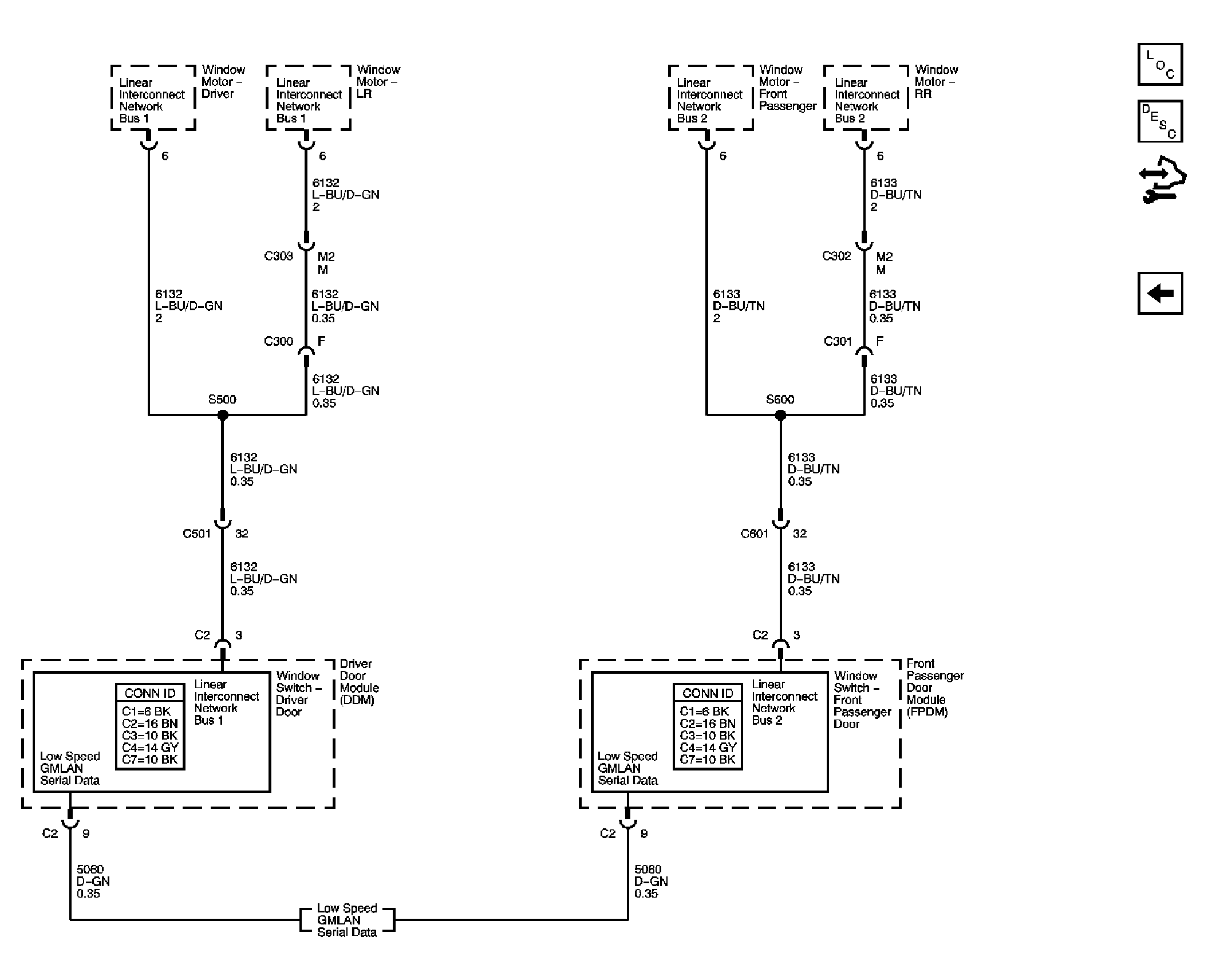

Fig 4: Local Interconnect Network (LIN) Schematics
