Installation Procedure
Courtesy of GENERAL MOTORS CORP.

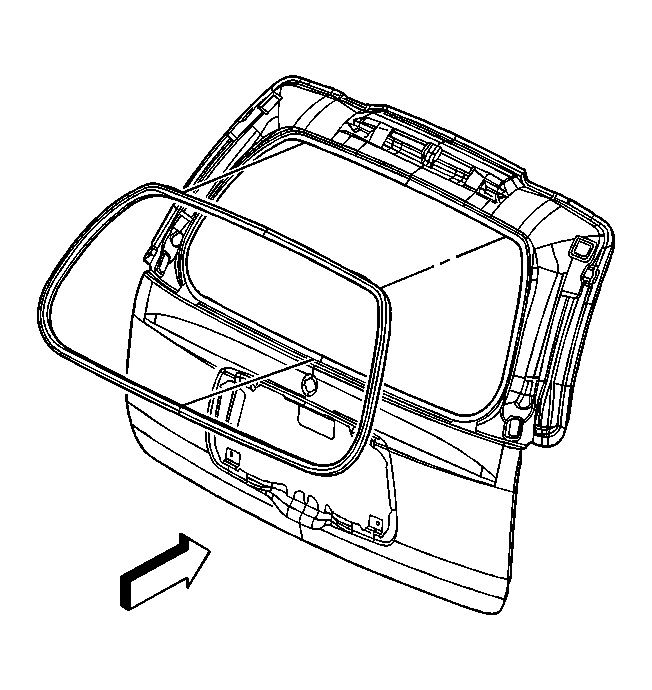

- Install the liftgate window weatherstrip, starting at the top center of the liftgate window opening position the liftgate window weatherstrip to the pinch-weld flange and working down the right and left sides towards the bottom center, being careful not to stretch the liftgate window weatherstrip while installing it.
- Install the butt joint seam at the center of the bottom pinch-weld flange.
- Use a rubber mallet to ensure full engagement of the liftgate window weatherstrip to the pinch-weld flange.
- Spooning of the liftgate window weatherstrip may be required to complete the installation of the liftgate window weatherstrip.
- Close the liftgate window.
