Video System Schematics

WARNING: This page is about a different car, the 2008 Pontiac Torrent and 2008 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

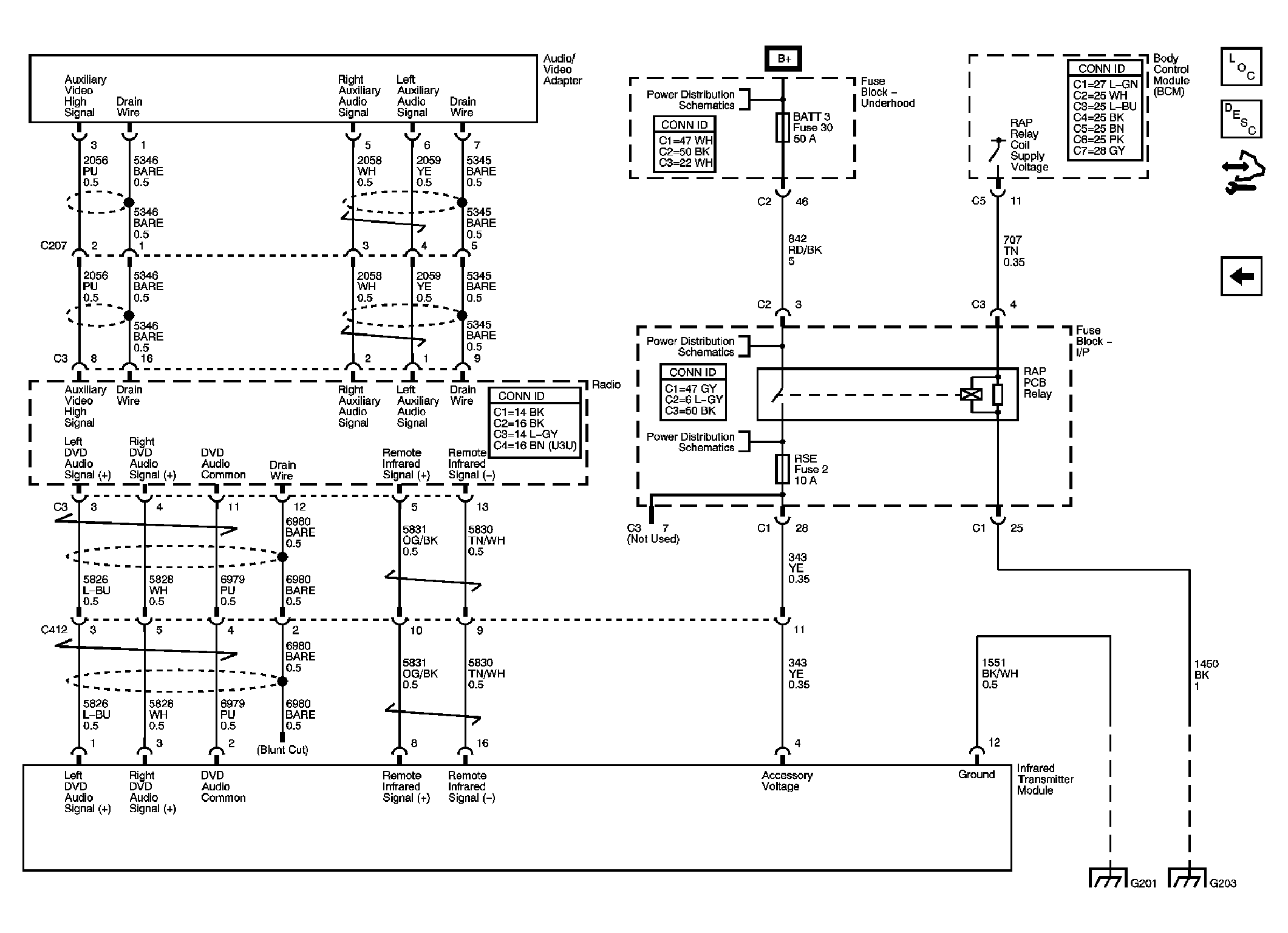

Fig 1: Power, Ground, and Video Signals

Courtesy of GENERAL MOTORS CORP.

Fig 2: Audio Signals

Courtesy of GENERAL MOTORS CORP.
