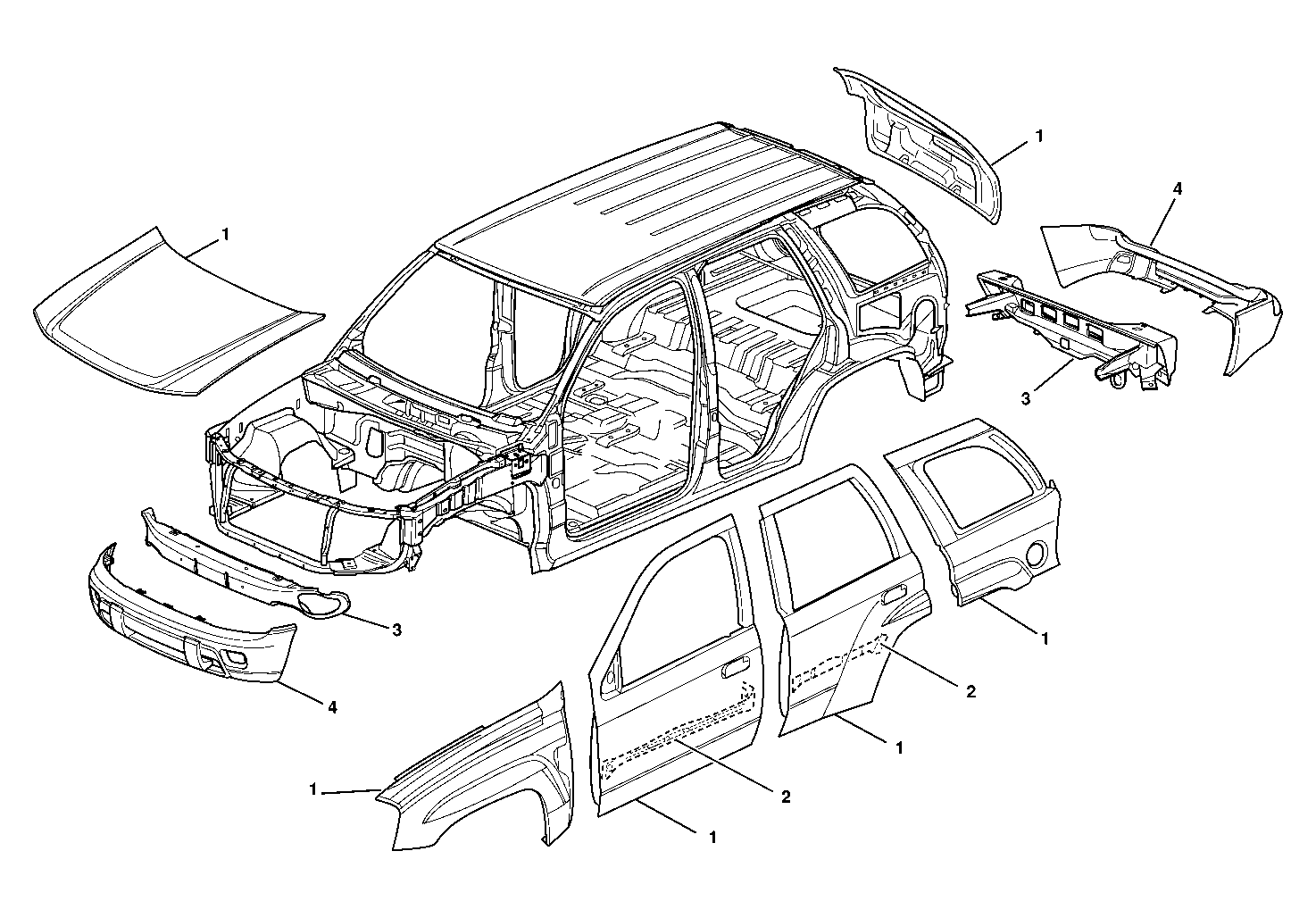

Panel Identification
WARNING: This page is about a different car, the 2008 Saab 9-7X. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Two Sided Galvanized Steel |
| 1 |
Two Sided Galvanized Steel |
| 1 |
Two Sided Galvanized Steel |
| 1 |
Two Sided Galvanized Steel |
| 2 |
Ultra High Strength Steel |
| 2 |
Ultra High Strength Steel |
| 3 |
High Strength Steel |
| 3 |
High Strength Steel |
| 4 |
Thermoplastic Olefln (TPO) |
| 4 |
Thermoplastic Olefln (TPO) |
