Remote Function Schematics

WARNING: This page is about a different car, the 2007 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

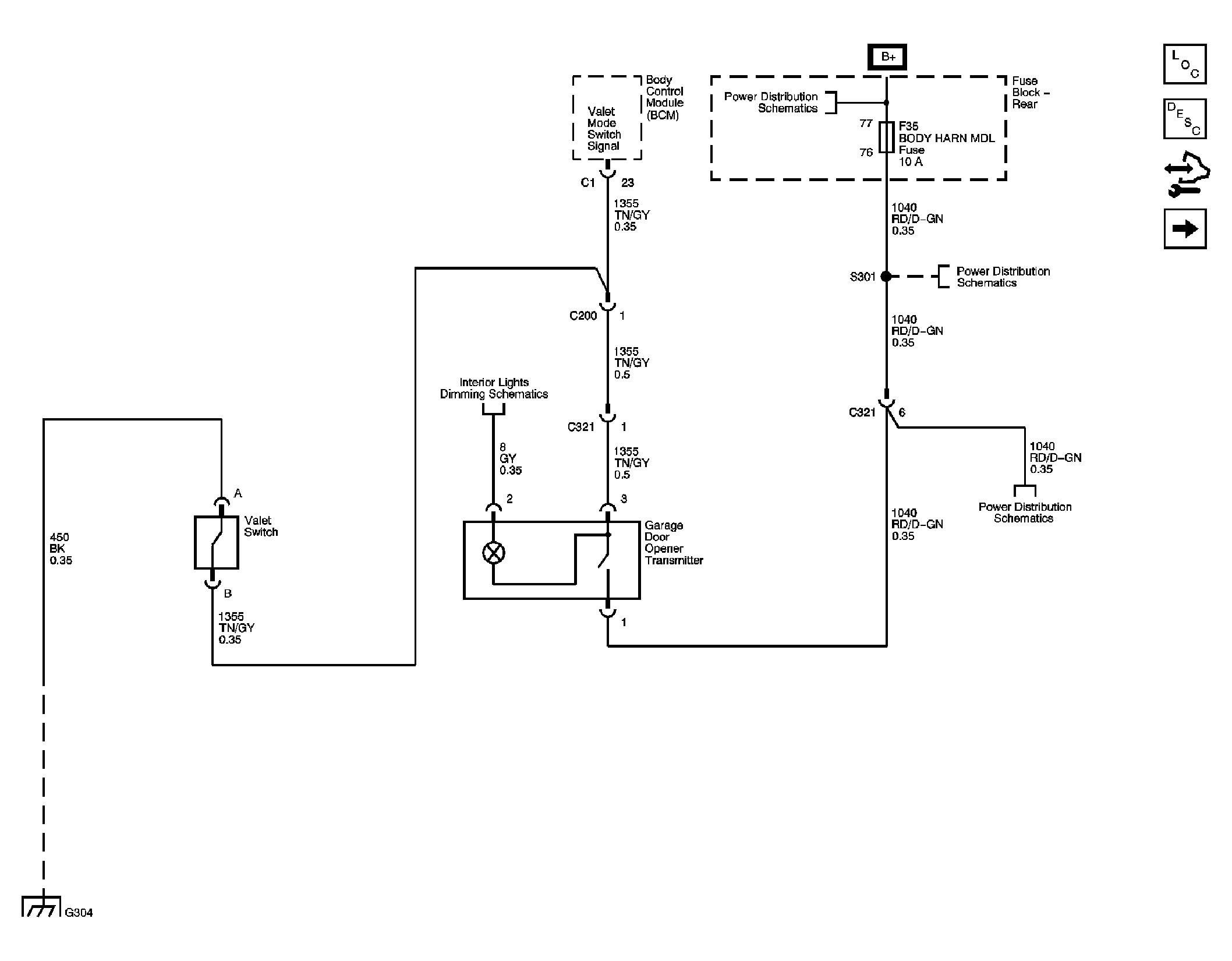

Fig 1: Garage Door Opener

Courtesy of GENERAL MOTORS CORP.

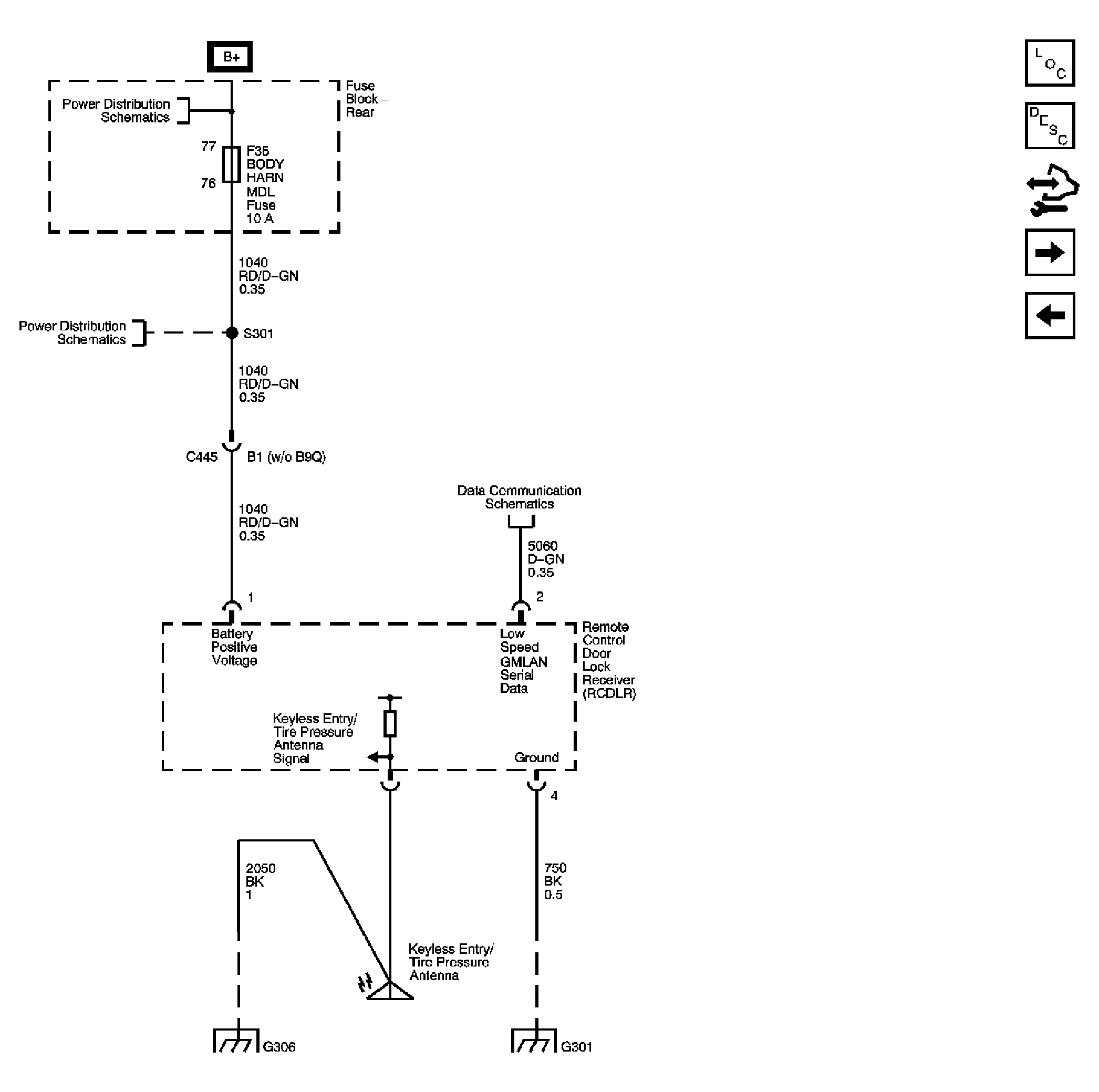

Fig 2: Remote Control Door Lock Receiver - RCDLR

Courtesy of GENERAL MOTORS CORP.

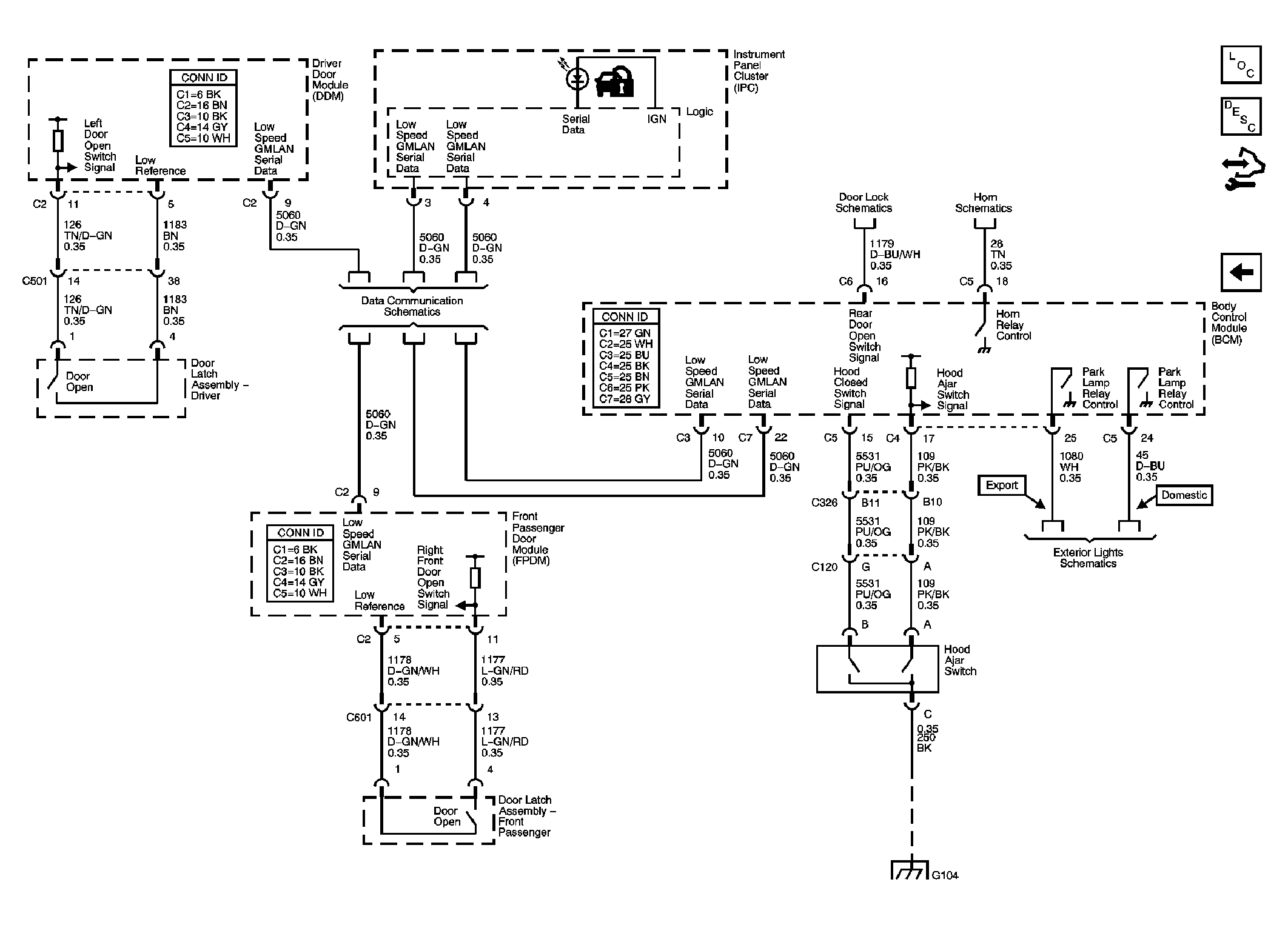

Fig 3: Door Latch Assemblies and Hood Ajar Switch

Courtesy of GENERAL MOTORS CORP.
