Transfer Case 2/4 Wheel Indicator Switch Connector End View

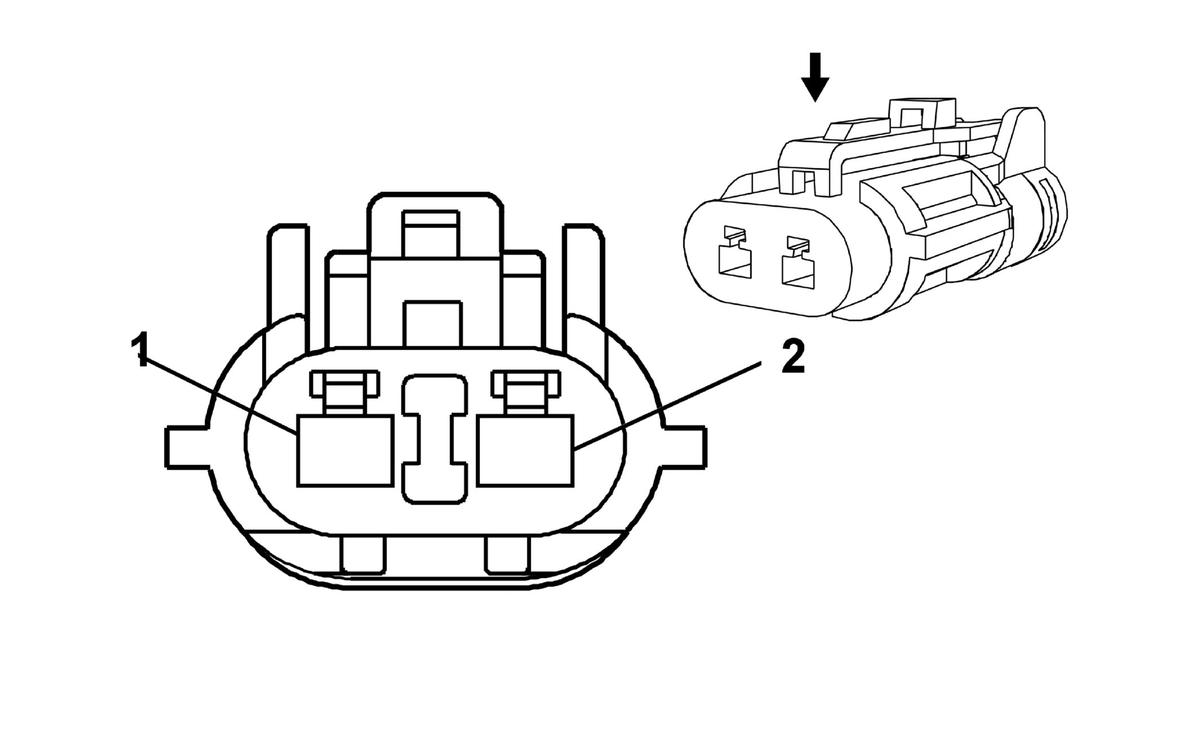

Fig 1: Transfer Case 2/4 Wheel Indicator Switch Connector End View
GM1334538Courtesy of GENERAL MOTORS CORP.
Transfer Case 2/4 Wheel Indicator Switch Connector & Terminal Parts Information

Connector Part Information
  • OEM: 15327093
  • Service: 88987840
  • Description: 2-Way F 070 SWP Series Sealed (GY)
Terminal Part Information
  • Terminal/Tray: 7116-1471/12
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 12094429/J-35616-33 (YE)
Transfer Case 2/4 Wheel Indicator Switch Terminal Identification

Pin Wire Color Circuit No. Function
1 TN 1569 2WD/4WD Signal
2 BK 550 Ground
