Body Control System Schematics

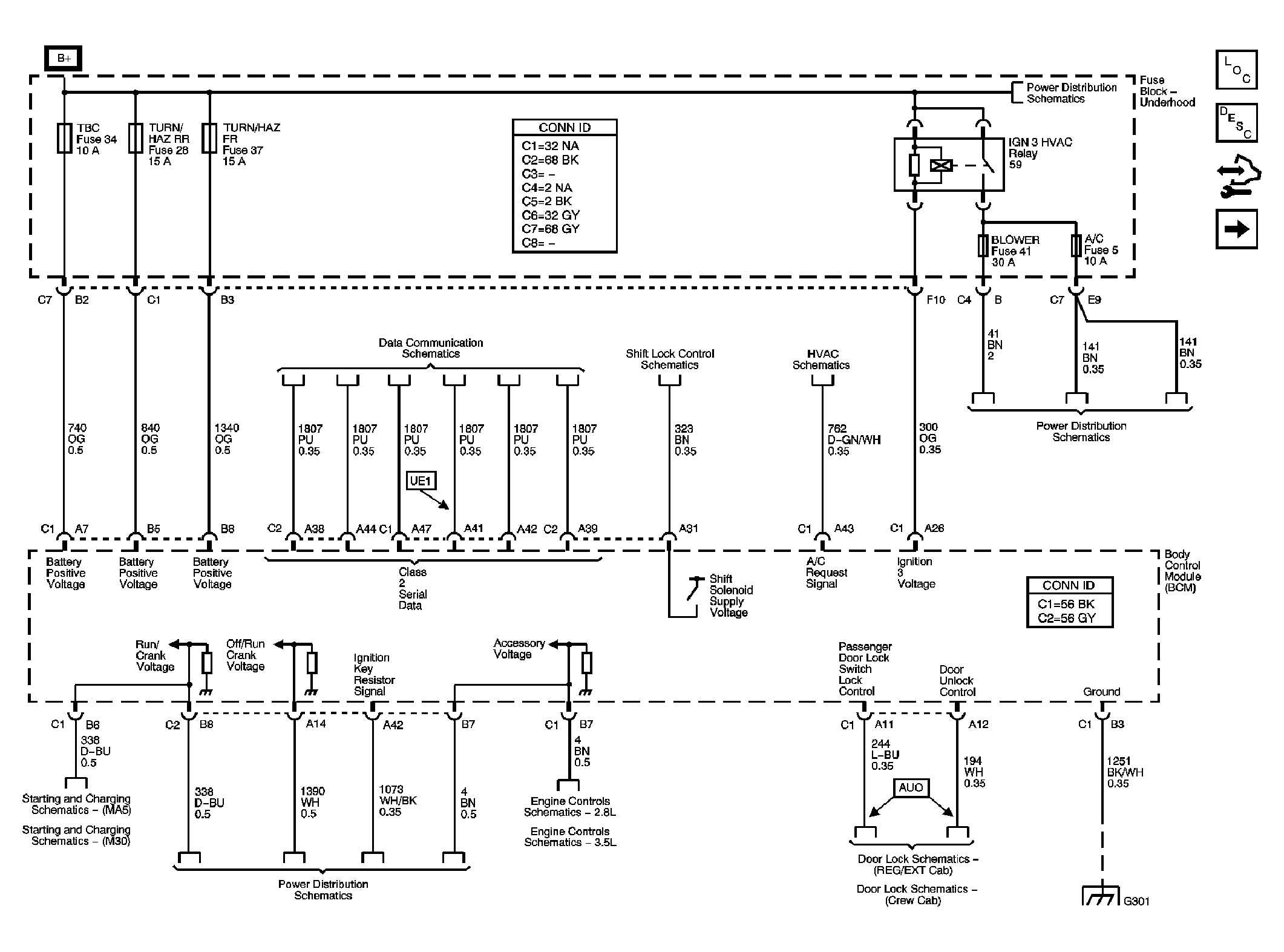

Fig 1: Power, Ground, Serial Data, and Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.

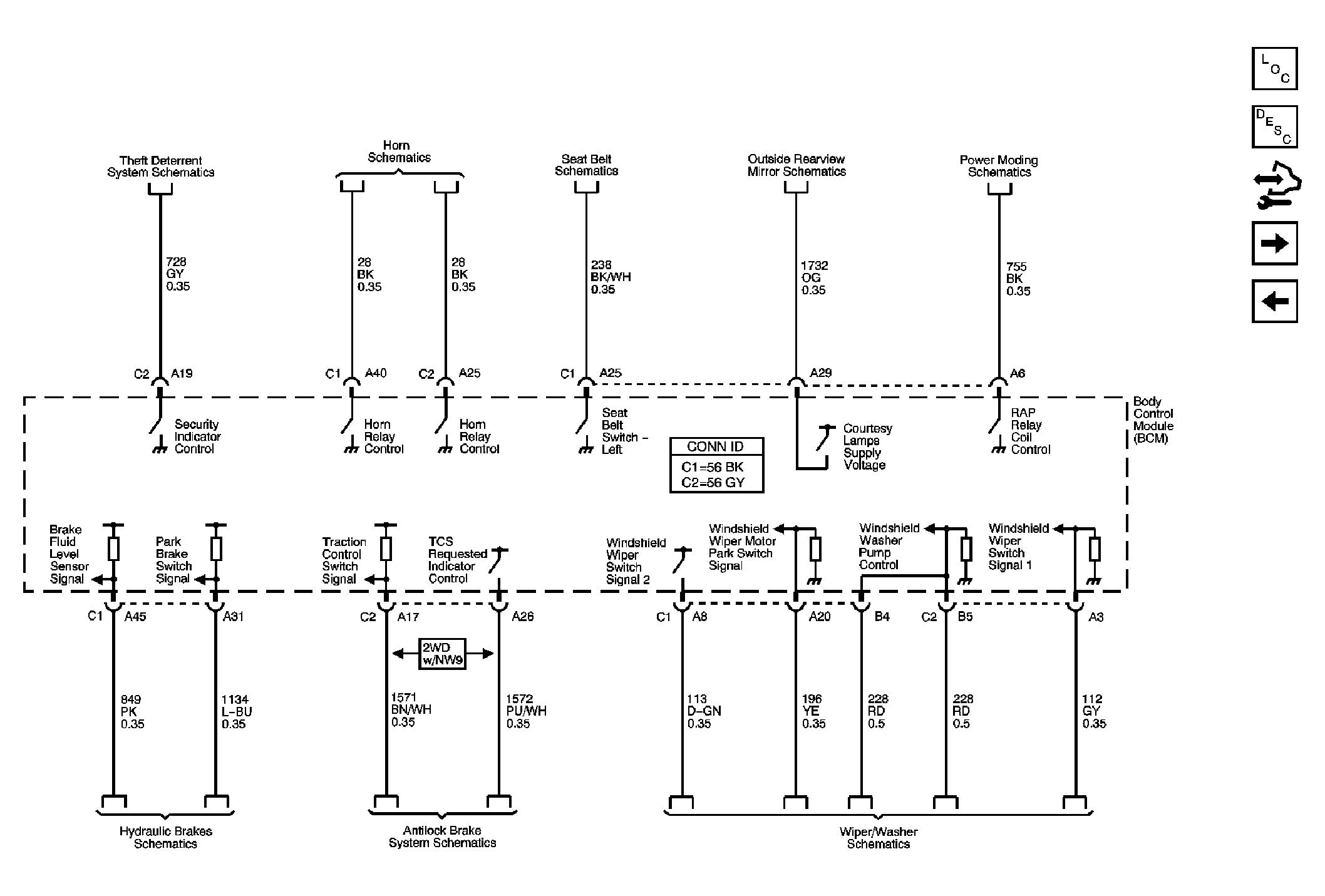

Fig 2: Subsystem References to Theft, Horn, Seat Belt, Outside Mirror, RAP, Brake Warning, ABS, and Wiper/Washer Systems

Courtesy of GENERAL MOTORS CORP.

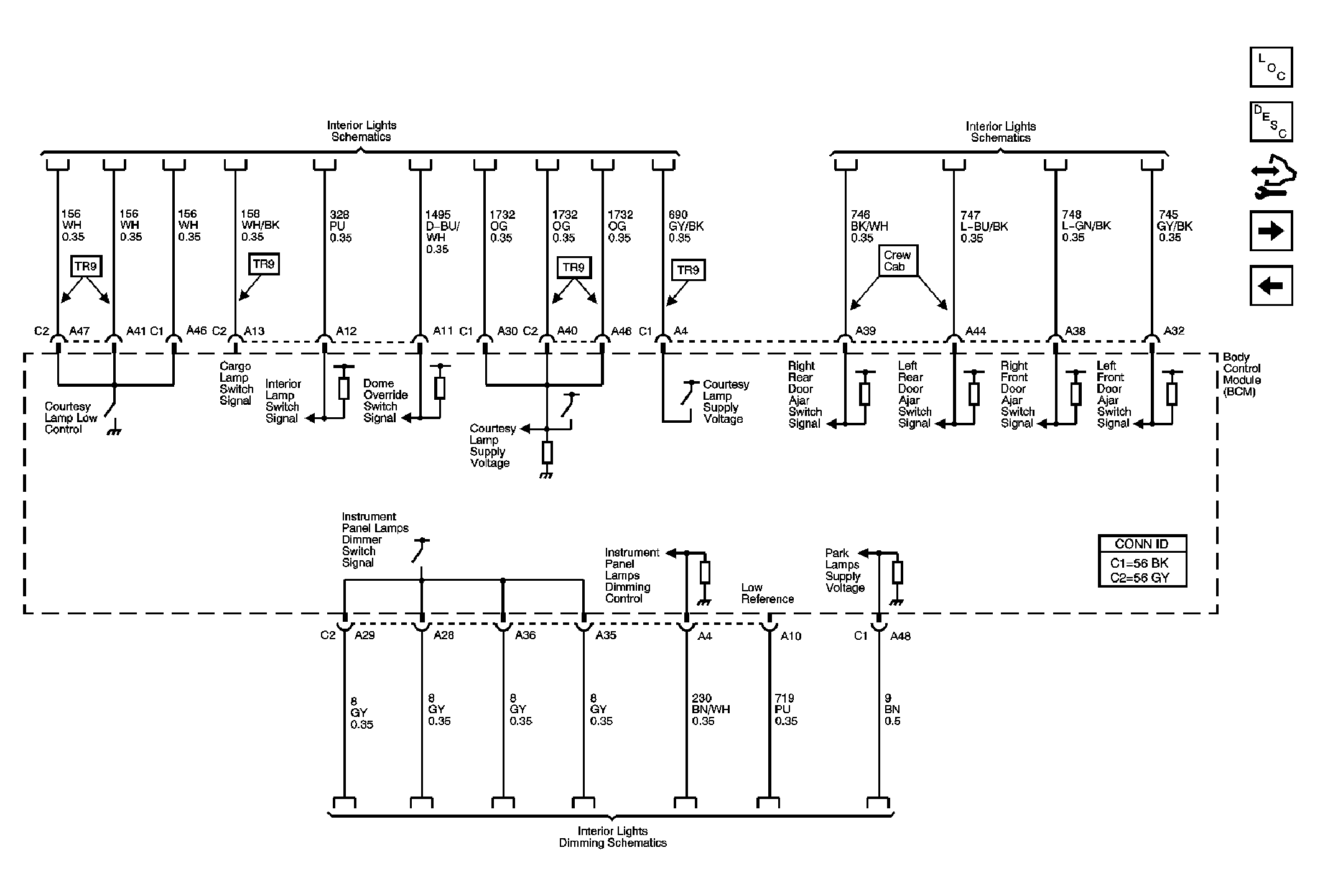

Fig 3: Subsystem References to Interior Light and Interior Lights Dimming Systems

Courtesy of GENERAL MOTORS CORP.

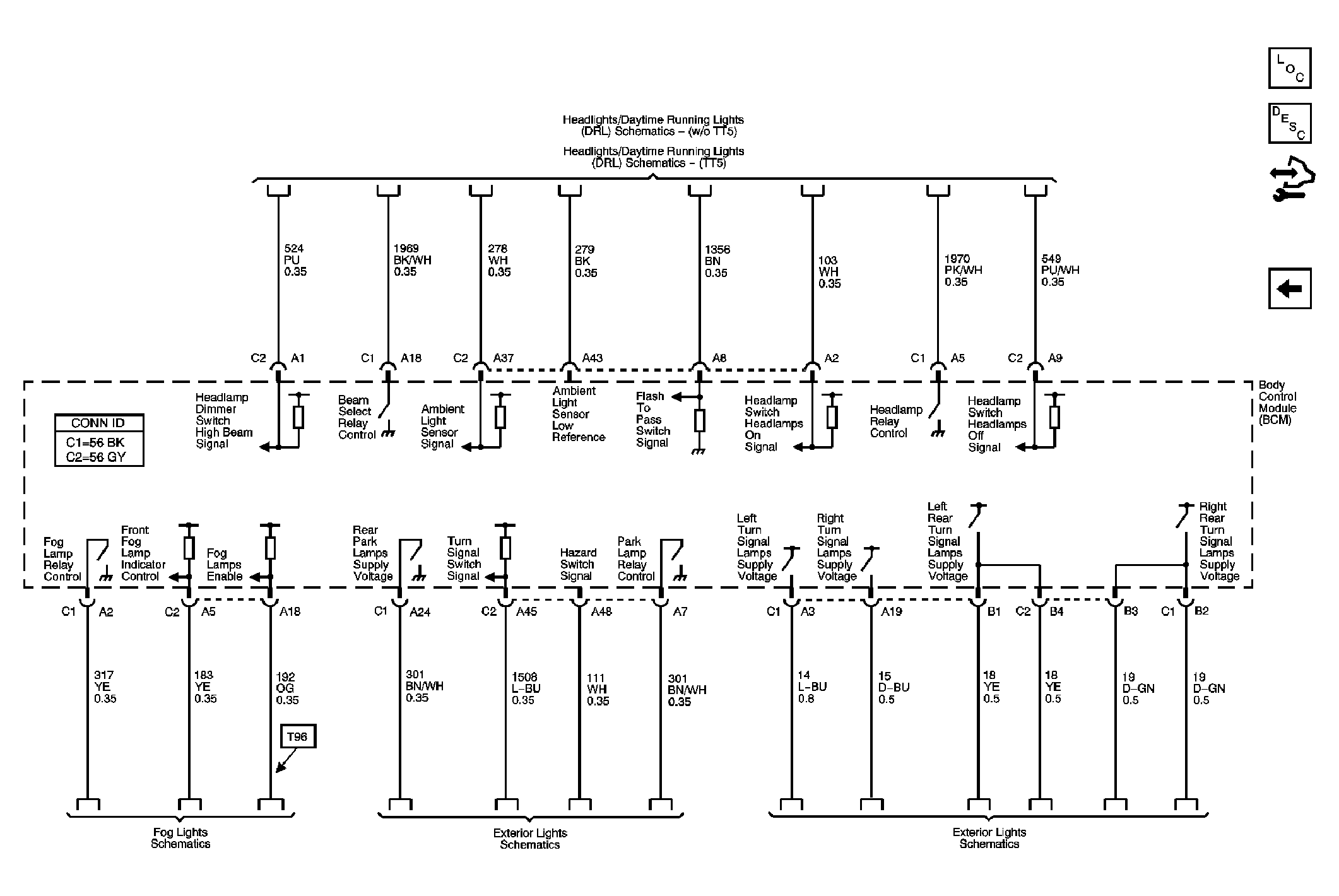

Fig 4: Lighting System Reference

Courtesy of GENERAL MOTORS CORP.
