Engine Compartment & Fuse Block

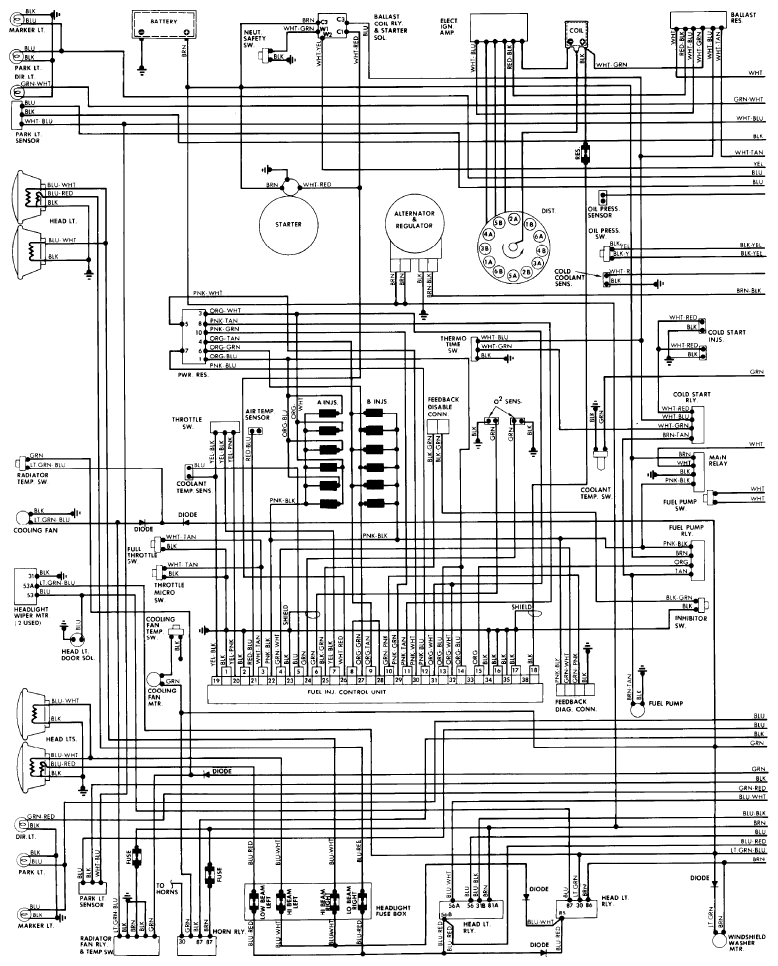

Fig 1: Wiring Diagram - Jaguar XJS (1 of 4)

G09304456

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
