Brush Assembly Test

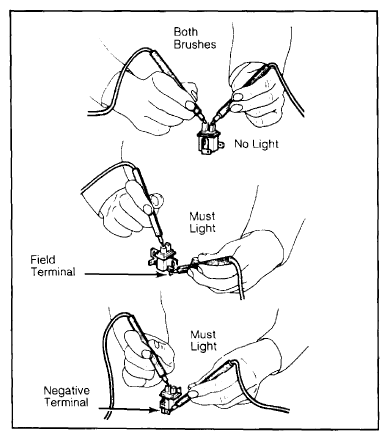

  1. Using a test light, touch probes to each brush. Bulb should not light. See Figure.
  2. Connect test leads to field terminal and its corresponding brush. Bulb must light, even when brush is moved in its holder. Transfer test leads to negative terminal and the other brush. Bulb must again light even if brush is moved in its holder.
