Coil Operation Check

Connect a 12-volt test lamp to negative terminal of ignition coil. See Fig 1. Ground test lamp.

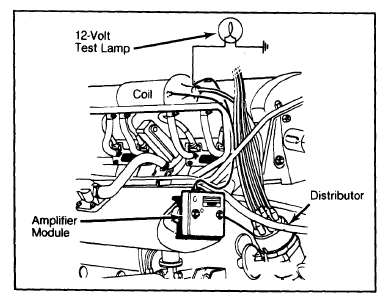

Fig 1: Checking Ignition Coil Operation
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Use 12-volt lamp with ignition turned "ON".
Crank the engine, but do not start it. Test lamp should flicker slightly.
