Ignition Timing

Check or adjust ignition timing with engine at normal operating temperature, idle speed set to specification and distributor vacuum line connected.

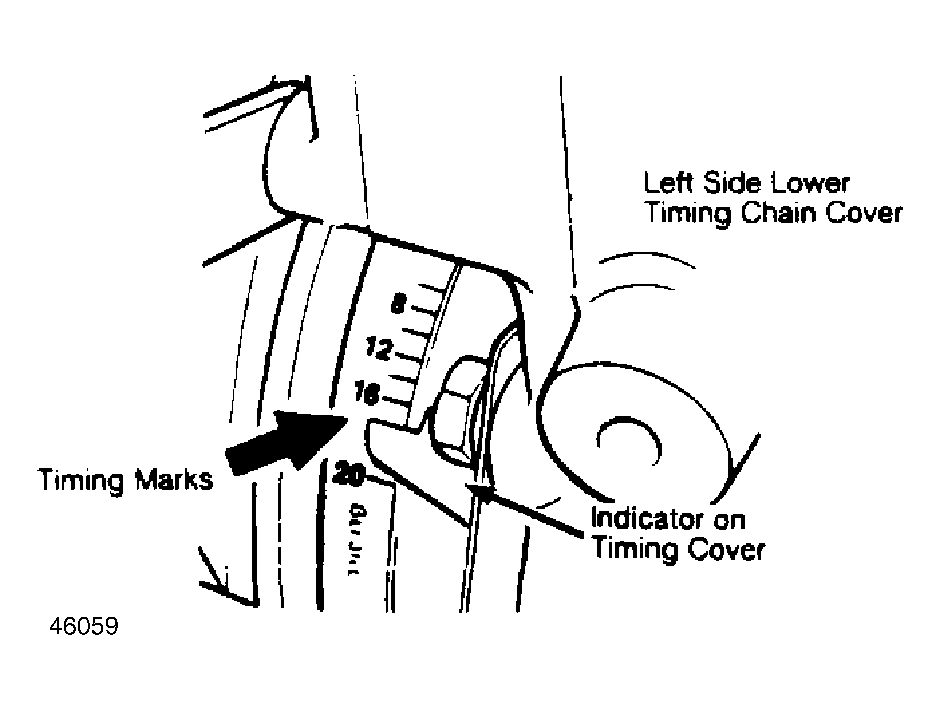

Fig 1: Ignition Timing Mark Location
If timing is not correct, loosen distributor clamp bolt and rotate distributor until correct timing is obtained. Tighten clamp bolt.

IGNITION TIMING (DEGREES BTDC @ RPM)

Application	Timing
All Models	8 @ 800
