Hydraulic Actuation Unit: Notes

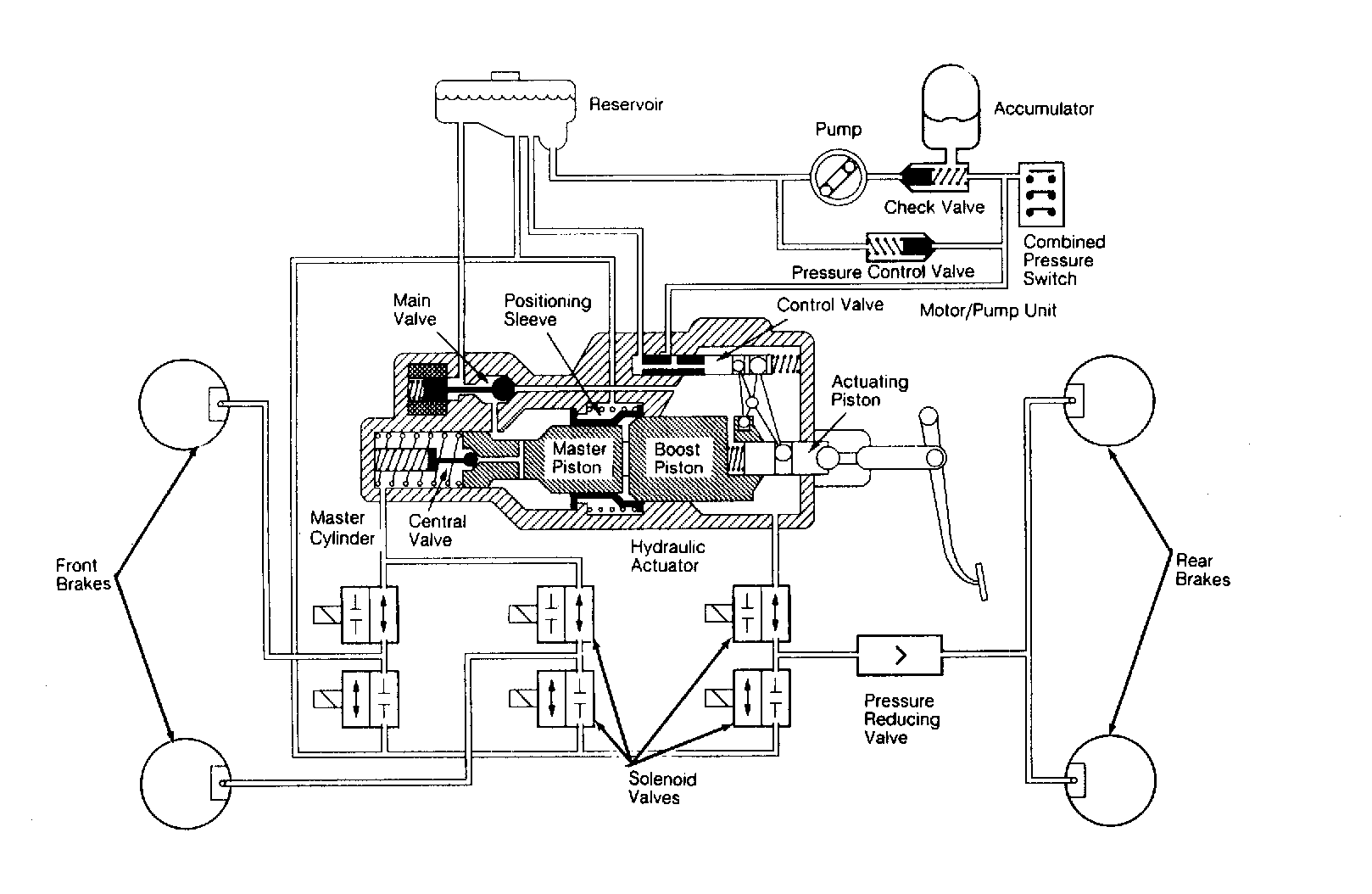

NOTE: The hydraulic actuation unit contains the reservoir and the components used for pressure application, boost application and anti-locking valving. See Figure .
